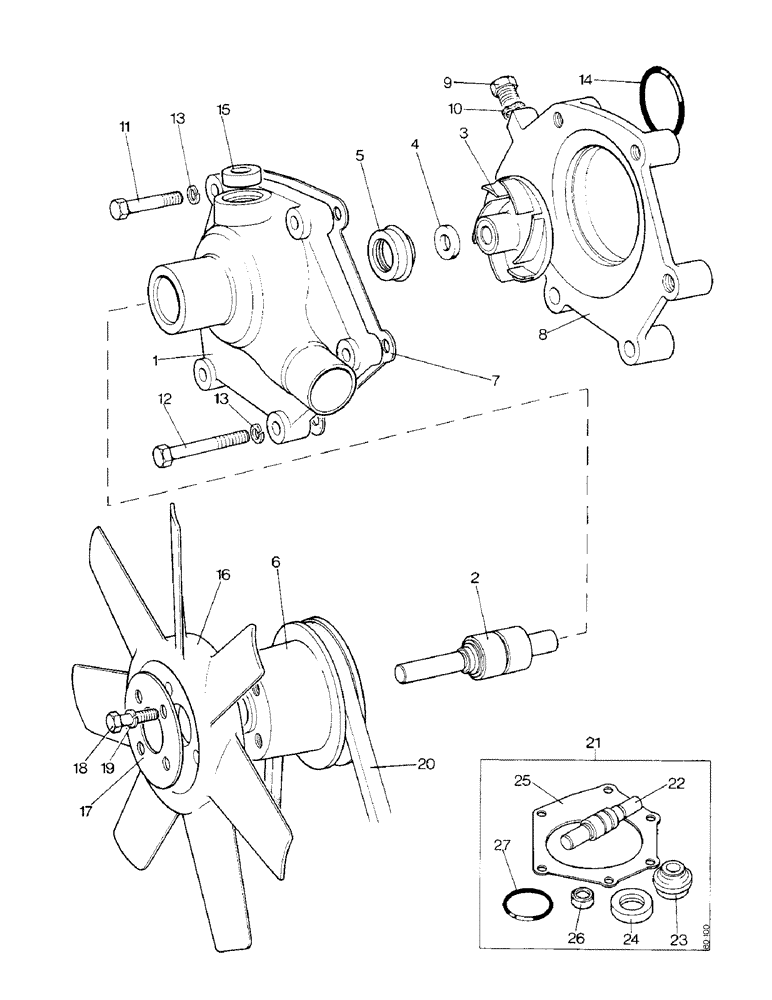

Запчасти Case IH 1390 (A-09) - WATER PUMP AND FAN (01) - ENGINE

K201750

PUMP, WATER

PUMP ASSEMBLY - water, Includes Ref: 1 - 6

1шт.

1

K201749

HOUSING

BODY - pump

1шт.

2

K620202

BEARING ASSY

SHAFT AND BEARING - pump

1шт.

3

K200687

IMPELLER

- water

1шт.

4

K200821

RING

- impeller

1шт.

5

K200823

GLAND

SEAL - gland

1шт.

6

K200824

PULLEY

- pump

1шт.

7

K942844

GASKET

- pump to impeller housing

1шт.

8

K942843

HOUSING

- impeller

1шт.

9

K623829

PLUG

- 3/8 inch BSP

2шт.

10

K19500

GASKET

WASHER - fiber

2шт.

11

K600203

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

- 5/16 UNC x 1-1/4 inch

2шт.

12

K600211

BOLT

- 5/16 UNC x 2-1/4 inch

4шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

14

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8 inch ID

1шт.

15

K262945

GASKET

SEAL - rubber, pump to cylinder head

1шт.

16

K921359

FAN

- seven blade

1шт.

17

K921361

SHIM

PLATE - retaining

1шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

20

K68073

V-BELT

Drive, Fan and alternator

1шт.

21

K965888

PACKAGE, REPAIR

REPAIR KIT - water pump, Includes Ref: 22 - 27

1шт.

22

K620202

BEARING ASSY

SHAFT AND BEARING - pump

1шт.

23

K200823

GLAND

SEAL - gland

1шт.

24

K200821

RING

- impeller

1шт.

25

K942844

GASKET

- pump to impeller housing

1шт.

26

K915330

SEALING RING

SEAL - rubber, Serial Range: pump-head

1шт.

27

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8 inch ID

1шт.
