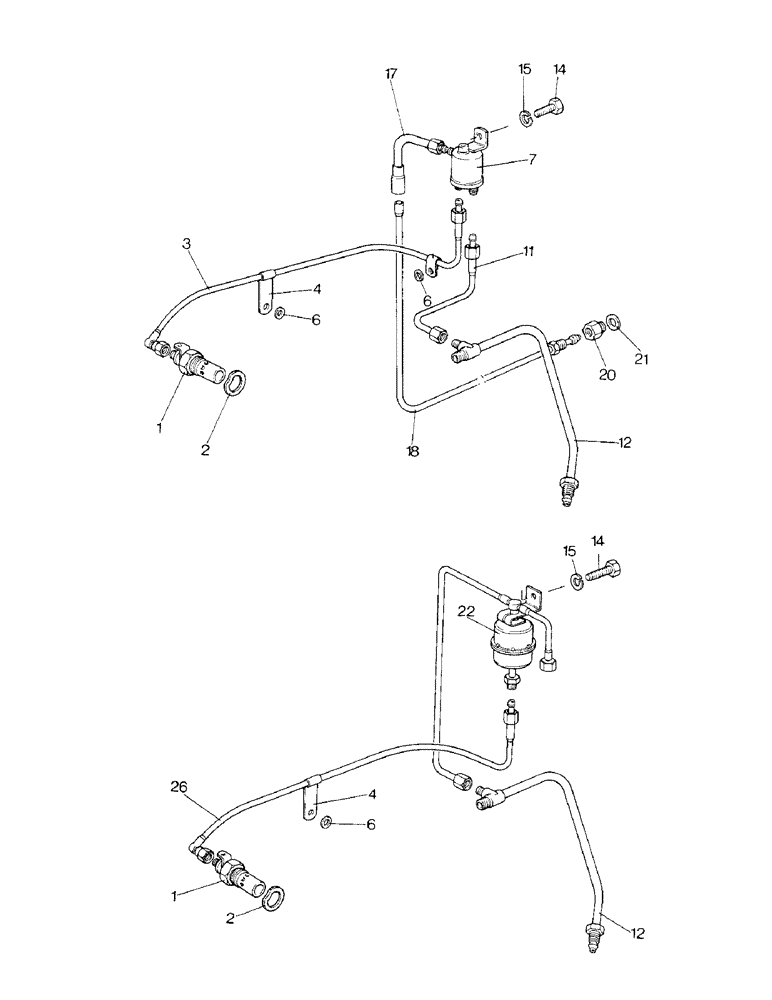

Запчасти Case IH 1390 (A-08) - THERMOSTART, RESERVOIR AND TUBES (01) - ENGINE

1

K928523

GLOW PLUG

THERMOSTART - fuel (CAV 1854102)

1шт.

2

K626957

WASHER

- fiber, 7/8 inch

1шт.

3

K205367

HOSE,0.187" OD x 33.5" L

TUBE - fuel, reservoir to thermostart

1шт.

1290 - prior to P.I.N.11053164. 1390 - prior to P.I.N. 11125426.

1шт.

4

K621610

CLIP

- manifold

1шт.

6

K19472

WASHER

- 3/8 inch

1шт.

7

K202360

RESERVOIR

- fuel

1шт.

1290 - prior to P.I.N.11053164. 1390 - prior to P.I.N. 11125426.

1шт.

11

K203169

RETURN PIPE

TUBE - fuel, Serial Range: leak-off-reservoir

1шт.

1290 - prior to P.I.N.11053164. 1390 - prior to P.I.N. 11125426.

1шт.

12

K204246

FUEL TUBE,0.25" OD

TUBE - fuel, filter to leak-off

1шт.

14

K650639

SCREW

BOLT - M8 x 12

1шт.

15

K651848

WASHER

- lock, 8 MM

1шт.

17

K204400

HOSE

1шт.

18

K204385

FUEL TUBE,0.187" OD x 10" L

TUBE - fuel return

1шт.

1290 - prior to P.I.N.11053164. 1390 - prior to P.I.N. 11125426.

1шт.

20

K618900

ADAPTER

ADAPTOR - 1/2 x 3/8 inch UNF

1шт.

1290 - prior to P.I.N. 11052044. 1390 - prior to P.I.N. 11123274

1шт.

21

K626521

SEALING WASHER

WASHER - fiber, 3/8 inch

2шт.

1290 - prior to P.I.N. 11052044. 1390 - prior to P.I.N. 11123274

1шт.

22

K205391

RESERVOIR

ASSEMBLY - fuel, with tube

1шт.

1290 - P.I.N. 11053164 and after. 1390 - P.I.N. 11125426 and after.

1шт.

26

K205367

HOSE,0.187" OD x 33.5" L

TUBE - fuel, reservoir to thermostart

1шт.

1290 - P.I.N. 11053164 and after. 1390 - P.I.N. 11125426 and after.

1шт.
