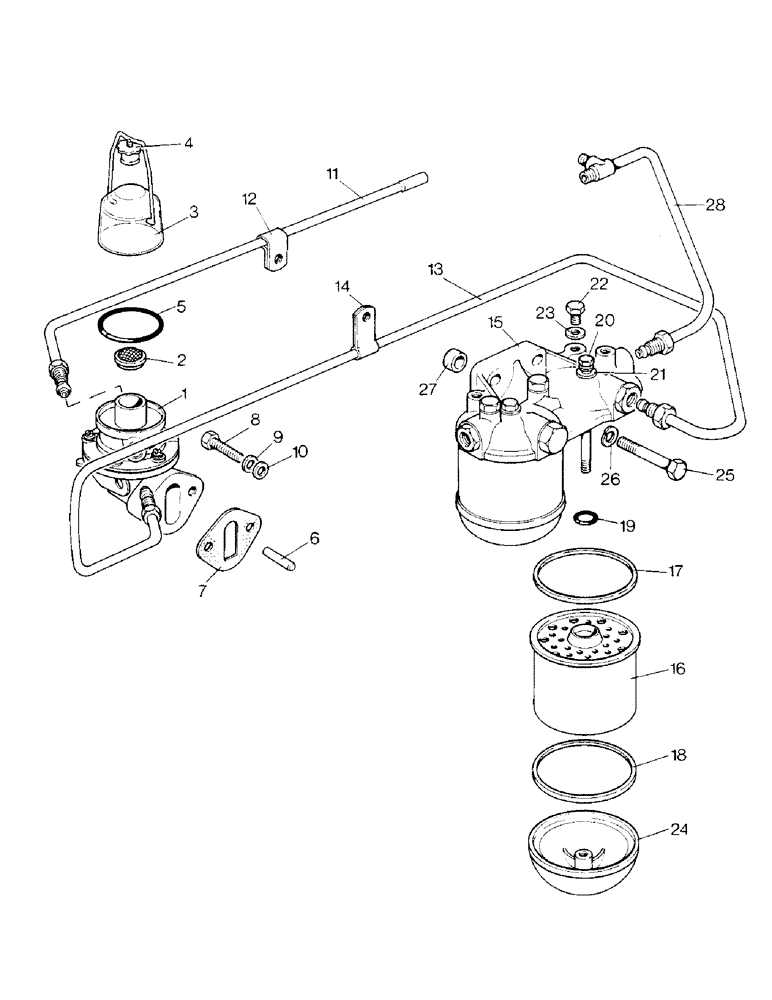

Запчасти Case IH 1390 (A-07) - FUEL FEED PUMP, FILTERS AND TUBES (01) - ENGINE

1

K944997

PUMP

ASSEMBLY - fuel (AC-Delco E/FP63154B), Includes Ref: 2 - 5

1шт.

2

K961675

FILTER SCREEN

SCREEN - filter

1шт.

3

K66442

FILTER BOWL

BOWL - filter

1шт.

4

K961676

BAIL

ASSEMBLY - bowl

1шт.

K911917

DIAPHRAGM

- pump

1шт.

5

K961674

SEAL

GASKET - filter bowl

1шт.

6

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, fuel pump

1шт.

7

K902136

GASKET

- pump mounting

1шт.

8

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4 inch

2шт.

9

K14988

WASHER

- 5/16 inch, copper asbestos

2шт.

10

K626682

WASHER

- 5/16 inch

2шт.

11

K203677

FUEL TUBE,0.312" OD x 43, 2" L

TUBE - fuel, tank to fuel pump

1шт.

12

K628362

CLIP

- clutch housing bolt

1шт.

13

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

TUBE - fuel, pump to filter

1шт.

14

K621603

CLIP

- tube to manifold stud

1шт.

15

K906708

FILTER

ASSEMBLY - fuel (APF 62900), Includes Ref: 16 - 20

1шт.

Use KJ262265 Kit

1шт.

16

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT KIT - filter, Includes Ref: 17 - 20

2шт.

17

K965802

RING

- sealing, upper

1шт.

18

K965801

RING

- sealing, lower

1шт.

19

K960937

O-RING

- 1/2 inch, ID

1шт.

20

K600360

BOLT

- 5/16 UNC x 4-3/4 inch

2шт.

21

K963409

RING

WASHER - sealing, 5/16 inch

2шт.

22

K965010

PLUG

- vent, 5/16 inch UNC

1шт.

23

K15734

WASHER

- 5/16 inch, aluminium

1шт.

24

K962264

COVER

BASE - filter

2шт.

25

K600476

BOLT

- 3/8 UNC x 1-3/4 inch

2шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

27

K627042

BUSHING

SPACER - filter

2шт.

28

K204246

FUEL TUBE,0.25" OD

TUBE - fuel, filter to leak-off

1шт.
