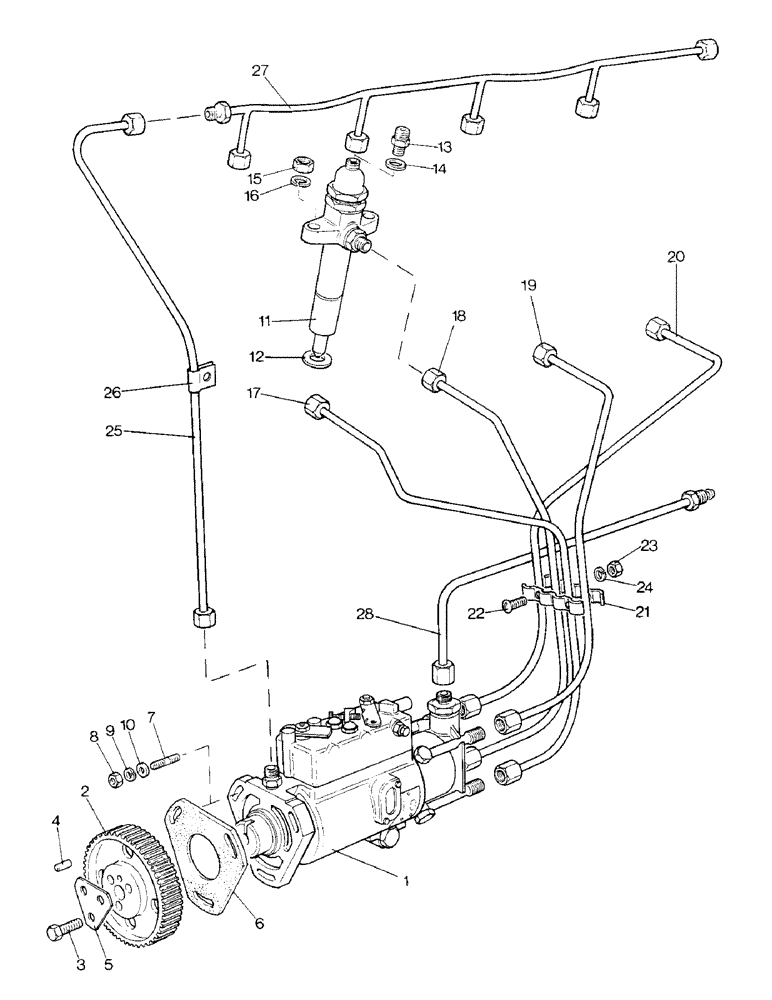

Запчасти Case IH 1390 (A-06) - INJECTION PUMP, INJECTORS AND TUBES (01) - ENGINE

1

K957319

PUMP, FUEL INJECTION

INJECTION PUMP - fuel (CAV DPA3343F060) (1290)

1шт.

1

K957105

PUMP

INJECTION PUMP - fuel (CAV DPA3342F750) (1290)

1шт.

1

K957104

PUMP

INJECTION PUMP - fuel (CAV DPA3342F40) (1390)

1шт.

2

K949822

GEAR

- pump drive, 68 teeth

1шт.

3

K612804

SCREW

BOLT - 5/8 UNF x 7/8 inch

3шт.

4

K25360

PIN

DOWEL - 1/4 x 9/16 inch

1шт.

5

K914503

LARGE PLATE

WASHER - tab, gear

1шт.

6

K68349

GASKET

- pump mounting

1шт.

7

K608135

STUD

- 5/16 UNC x 1-1/4 inch

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

10

K626682

WASHER

- 5/16 inch

3шт.

11

K954826

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel (See Fig. A12-1), Includes Ref: 12

4шт.

K954827

NOZZLE INJECTION

HOLDER - injector

1шт.

K942176

NOZZLE CAP

NOZZLE - CAV, injector

1шт.

12

K901092

WASHER

- injector (Copper)

1шт.

13

K620460

ADAPTER

- M8 - 1/8 BSP, injector leak-off

4шт.

14

K36374

WASHER

- copper, 8 MM

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

8шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

17

K918915

PIPE

TUBE - fuel, injection pump to no. 1 cylinder

1шт.

18

K918916

PIPE

TUBE - fuel, injection pump to no. 2 cylinder

1шт.

19

K954828

PIPE,18.281" L

TUBE - fuel, injection pump to no. 3 cylinder (Replaces K918917)

1шт.

20

K954829

PIPE,20.75" L

TUBE - fuel, injection pump to no. 4 cylinder (Replaces K918918)

1шт.

21

K900844

CLAMP

CLIP - injector tubes

2шт.

22

K12217

SCREW,0.185" x 5/8"

- 2BA x 5/8 inch

2шт.

23

K11109

NUT

- 2BA

2шт.

24

K626340

RING

WASHER - lock, 3/16 inch

2шт.

25

K203135

PIPE,0.187" OD

TUBE - leak-off, injector pump

1шт.

26

K621610

CLIP

- tube to exhaust manifold stud

1шт.

27

K204248

PIPE,0.187" OD

TUBE - leak-off, injectors

1шт.

28

K918923

PIPE

TUBE - fuel, filter to injection pump

1шт.
