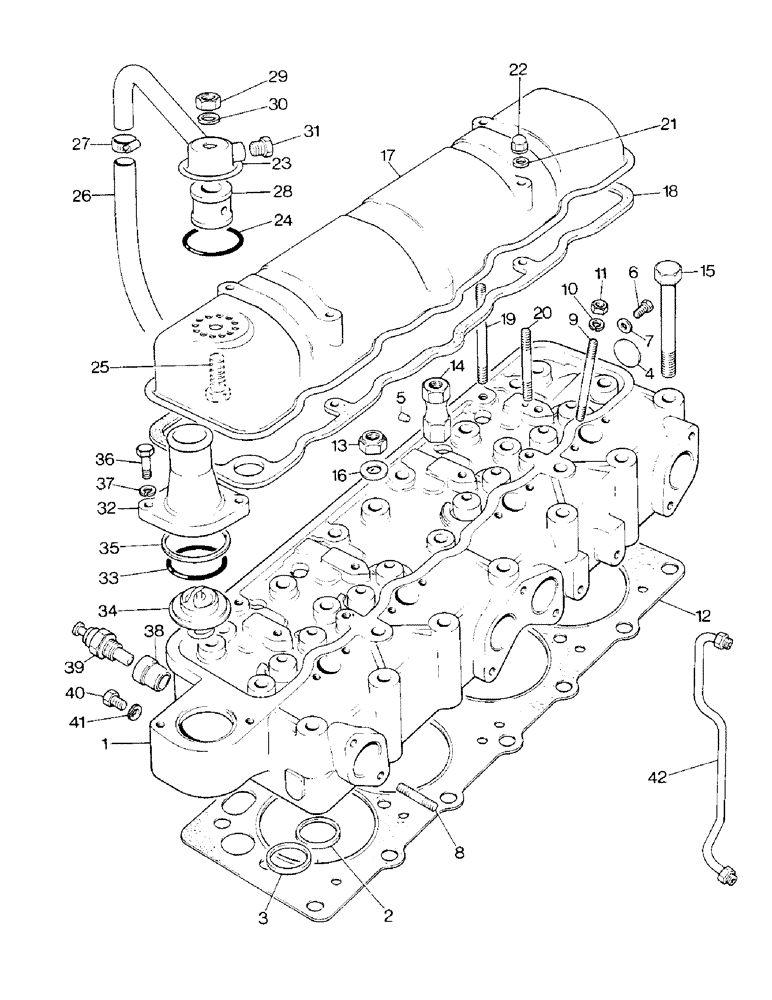

Запчасти Case IH 1390 (A-05) - CYLINDER HEAD (01) - ENGINE

1

K260131

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes Ref: 2 - 5

1шт.

2

K921246

INSERT

- inlet seat

4шт.

3

K921247

INSERT

- exhaust seat

4шт.

4

K623791

PLUG

- core, 1-1/4 inch

1шт.

5

K900431

PLUG

- taper

4шт.

6

K19591

PLUG

- 1/8 inch BSP

1шт.

7

K16732

WASHER

- copper, 3/8 inch

1шт.

8

K608203

STUD

- 3/8 UNC x 1-7/8 inch, manifold

8шт.

8

K608216

STUD

- 3/8 UNC x 1-3/8 inch, exhaust manifold

1шт.

8

K608237

STUD

- 3/8 UNC x 1-3/4 inch, intake manifold

4шт.

8

K608214

STUD

- 3/8 UNC x 2 inch, intake manifold

2шт.

9

K608107

STUD

- 5/16 UNC x 2-11/16 inch, injectors

8шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

8шт.

12

K947758

GASKET

- cylinder head (1290 tractor)

1шт.

12

K200083

GASKET

- cylinder head (1290 and 1390 tractor) (Fig. A1-1)

1шт.

13

K617594

NUT

- 1/2 inch UNF, special

5шт.

14

K906536

NUT

NUT - elongated, 1/2 inch UNF

7шт.

15

K600870

BOLT

- 1/2 UNC x 4-1/4 inch, special

7шт.

16

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- 1/2 inch, special

19шт.

17

K920678

COVER

- cylinder head

1шт.

18

K905229

GASKET,3.97mm Thk

- rocker arm

1шт.

19

K608118

STUD

- 5/16 UNC x 3-7/16 inch

2шт.

20

K608119

STUD

- 5/16 UNC x 2-13/16 inch

2шт.

21

K14988

WASHER

- copper asbestos, 5/16 inch

4шт.

22

K607252

NUT

- domed, 5/16 inch UNC

4шт.

23

K203882

COVER

- engine breather

1шт.

24

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING - 1-11/16 inch ID

1шт.

25

K600878

BOLT

- 1/2 UNC x 1-5/8 inch, engine breather

1шт.

26

K205246

PIPE

HOSE - 5/8 x 20 inch, engine breather

1шт.

27

K622023

CLAMP

CLIP - hose, 3/4 inch, engine breather

1шт.

28

K945433

BUSHING

SPACER - breather

1шт.

29

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/2 inch UNC

1шт.

30

K626443

WASHER

- copper, 1/2 inch

1шт.

31

K616036

PLUG

- 1/2 inch UNF, manual steering

1шт.

NO GLOW PLUGS USED IN THIS ENGINE.THEY DID USE A GLOW PLUG FOR A STARTING AID ONLY.

1шт.

32

K200724

OUTLET

TUBE - water outlet

1шт.

33

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

34

K917962

THERMOSTAT

- water temperature 180 degrees F (82 degrees C)

1шт.

35

K200225

GASKET,0.81mm Thk

- thermostat

1шт.

36

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

37

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

38

K203464

ADAPTER

- sender, 5/8 UNF x 1/2 inch NPT

1шт.

39

K302026

TEMPERATURE SENDER

SENDER - temperature gauge

1шт.

40

K623829

PLUG

- 3/8 inch BSP, thermostat housing

1шт.

41

K19500

GASKET

WASHER - fiber

1шт.

42

K902765

PIPE

TUBE - oil, Serial Range: head-block

1шт.

K260284

GASKET

KIT - cylinder head, 1290 tractor

1шт.

K260285

GASKET KIT

- cylinder head, 1290 and 1390 tractor (Fig. A1-1)

1шт.
