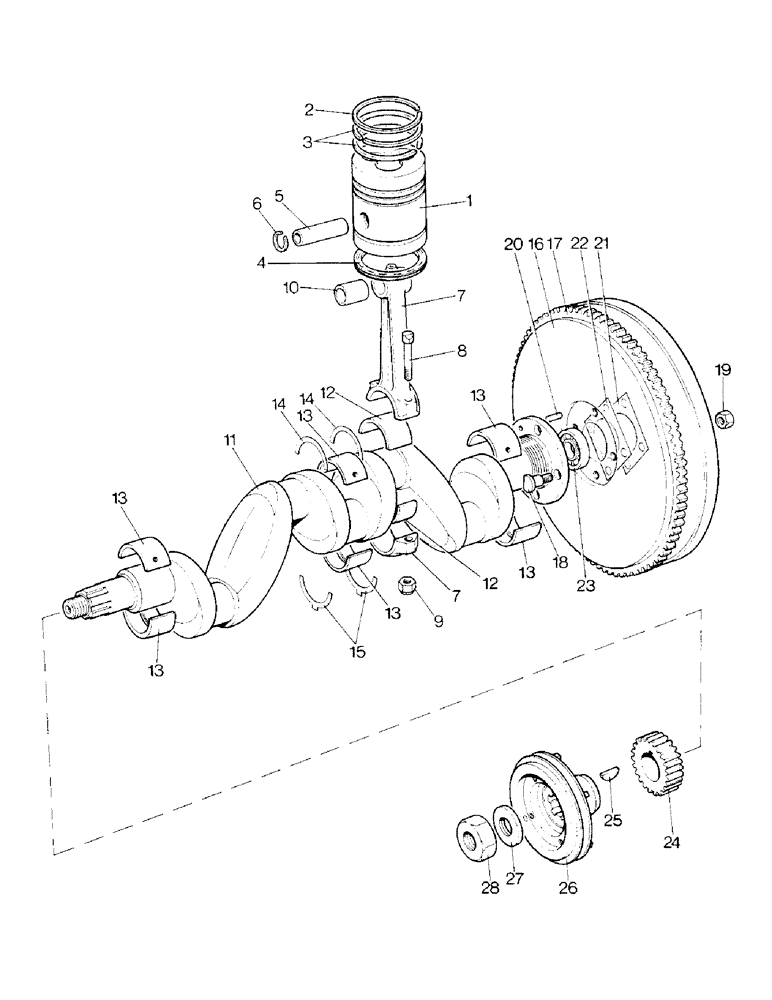

Запчасти Case IH 1390 (A-03) - PISTONS, CRANKSHAFT AND FLYWHEEL (01) - ENGINE

1

K949721

PISTON & RINGS KIT

PISTON ASSEMBLY - standard bore (See Fig. V6-1)

4шт.

Used on 1290 and 1390

1шт.

1

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - standard bore (See Fig. V6-1), Includes Ref: 2 - 6

4шт.

Used on 1290 and 1390

1шт.

2

K943881

RING, PISTON

PISTON RING - no. 1 compression

1шт.

3

K943882

RING, PISTON

PISTON RING - no. 2 and 3 compression

2шт.

4

K206956

RING, PISTON

PISTON RING - scraper (Replaces K917409)

1шт.

5

K904370

PIN

- piston

1шт.

6

K34501

RING, SNAP

RING - snap, 1-1/4 inch

2шт.

7

K80043

ROD, CONNECTING

ROD ASSEMBLY - connecting, engine, Includes Ref: 8 - 10

4шт.

8

K905198

BOLT

- 7/16 inch BSF, special

2шт.

9

K623151

LOCK NUT

- self-locking, 7/16 inch BSF

2шт.

10

K31669

BEARING

BUSHING - small end

1шт.

11

K917985

CRANKSHAFT

- engine (See note A) (1290)

1шт.

11

K905196

CRANKSHAFT

- engine (See note B)

1шт.

11

K210100R

REMAN-CRANKSHAFT

1290, 1390, Both CASE DIESEL TRACTOR, engine (1/80-12/83), Reman for New PN K905196. \r\n Comes with main, thrust & connecting rod bearings

1шт.

11

K210100C

CORE-CRANKSHAFT

Return Number

1шт.

12

K911904

HALF-BEARING, CRANKS

BEARING - big end, halves (Standard) (See Fig. V6-1)

8шт.

13

K928541

HALF-BEARING, CRANKS

BEARING - main, halves (Standard) (See Fig. V6-1)

6шт.

14

K928542

SET

WASHER - thrust, upper (Standard) (See Fig. V6-1)

2шт.

15

K928543

SET

WASHER - thrust, lower (Standard) (See Fig. V6-1)

2шт.

16

K200933

FLYWHEEL

ASSEMBLY - continuous clutch

1шт.

16

K948018

FLYWHEEL

ASSEMBLY - independent clutch, Includes Ref: 17

1шт.

17

K36134

GEAR

- ring

1шт.

18

K903431

STEP BOLT

- 7/16 inch UNF, special

4шт.

19

K616983

NUT

- 7/16 inch UNF

4шт.

20

K10629

PIN

DOWEL - 1/2 inch x 15/16 inch

1шт.

21

K910883

WASHER

- tab, flywheel

1шт.

22

K903255

DISC

LOCATING DISC - clutch plate, continuous clutch

1шт.

22

K912323

HOUSING

LOCATING DISC - clutch plate, independent clutch

1шт.

23

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball, clutch shaft

1шт.

24

K945094

GEAR

- 34 teeth, steel

1шт.

25

K19608

KEY

- Woodruff no. 606

1шт.

26

K944349

PULLEY

- without front drive fitting (1290)

1шт.

26

K944348

PULLEY

- with front drive fitting (1290)

1шт.

26

K200175

PULLEY

- with front drive fitting (1390)

1шт.

27

K626403

WASHER

- 1 inch special

1шт.

28

K623300

NUT

- 1 inch special

1шт.

K962158

CRANKSHAFT BEARING

BEARING PACK - standard

1шт.

K261069

SET OF RINGS

PISTON RING PACK - engine (Replaces K964731)

4шт.
