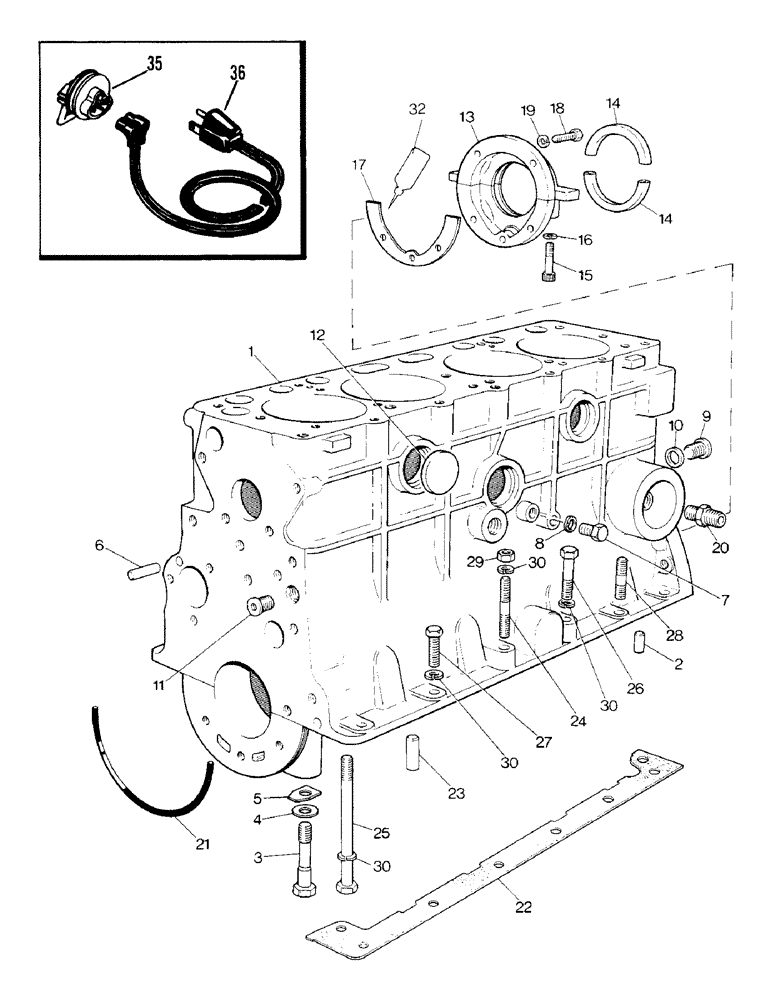

Запчасти Case IH 1390 (A-01) - CYLINDER BLOCK ASSEMBLIES (01) - ENGINE

1

K965717

ENGINE

CYLINDER BLOCK ASSEMBLY - short, with crankshaft and pistons (1290)

1шт.

1

K965716

SKELETON ENGINE

CYLINDER BLOCK ASSEMBLY - short, with crankshaft and pistons, Includes Ref: 1 - 20

1шт.

ACCORDING TO THE PRINT K965716 INCLUDES 4 CONNECTING ROD ASSEMBLIES.

1шт.

1

K965168

BASIC BLOCK

CYLINDER BLOCK ASSEMBLY - stripped, with bearing caps, Includes Ref: 2 - 20

1шт.

2

K12258

PIN

DOWEL - 5/16 x 3/4 inch

4шт.

2

K622908

PIN

DOWEL - 1/4 x 3/4 inch

2шт.

3

K902022

BOLT

- 5/8 UNC x 3-5/8 inch special

6шт.

4

K929557

WASHER

WASHER - 5/8 inch, special

6шт.

5

K12994

BEARING WASHER

WASHER - tab

6шт.

6

K621807

PIN

DOWEL - 5/16 x 1/2 inch, carrier plate

2шт.

7

K19581

PLUG

- 1/4 inch BSP

1шт.

8

K19501

WASHER

WASHER - fiber, 1/2 inch

1шт.

9

K609440

PLUG

- 5/8 inch UNC, oil gallery, rear

1шт.

10

K619506

WASHER

- copper, 5/8 inch

1шт.

11

K609449

PLUG

- 5/8 inch UNC, oil gallery, front

1шт.

12

K623797

PLUG

CORE PLUG - 1-3/4 inch diameter

5шт.

13

K964844

HOUSING

RETAINER ASSEMBLY - oil, rear bearing, Includes Ref: 14 - 16

1шт.

14

K921611

OIL SEAL

PACKING - halves, oil retainer

2шт.

15

K606558

SCREW

SOCKET SCREW - 5/16 inch UNC

2шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

17

K950938

GASKET,0.18mm Thk

- halves

2шт.

18

K602849

SCREW

BOLT - 5/16 UNC x 7/8 inch

5шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

5шт.

20

K200007

FITTING

CONNECTOR - 5/8 UNC - 3/4 inch UNF, oil filter

1шт.

21

K902046

SEAL

- bearing caps

2шт.

22

K902044

GASKET

- left-hand

1шт.

22

K902045

GASKET

- right-hand

1шт.

23

K622903

PIN

DOWEL - 7/16 x 1-3/8 inch, special

2шт.

24

K608244

STUD

- 3/8 UNC x 2-1/4 inch

2шт.

25

K600460

BOLT

- 3/8 UNC x 6-3/4 inch

4шт.

26

K600476

BOLT

- 3/8 UNC x 1-3/4 inch

1шт.

27

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT - 3/8 UNC x 1-1/4 inch

8шт.

28

K608201

STUD

- 3/8 UNC x 1-5/8 inch

1шт.

29

280136

NUT,3/8"-16, G8

4шт.

30

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

16шт.

31

K260282

GASKET

GASKET SET - cylinder block

1шт.

35

A48263

RESISTOR

HEATER ASSEMBLY - cylinder block

1шт.

36

A48264

CABLE

CORD - heater, cylinder block

1шт.

1290 Tractors at S/N 11052560 now use the 219 C I D Engine in place of the 195 C I D Engine

1шт.
