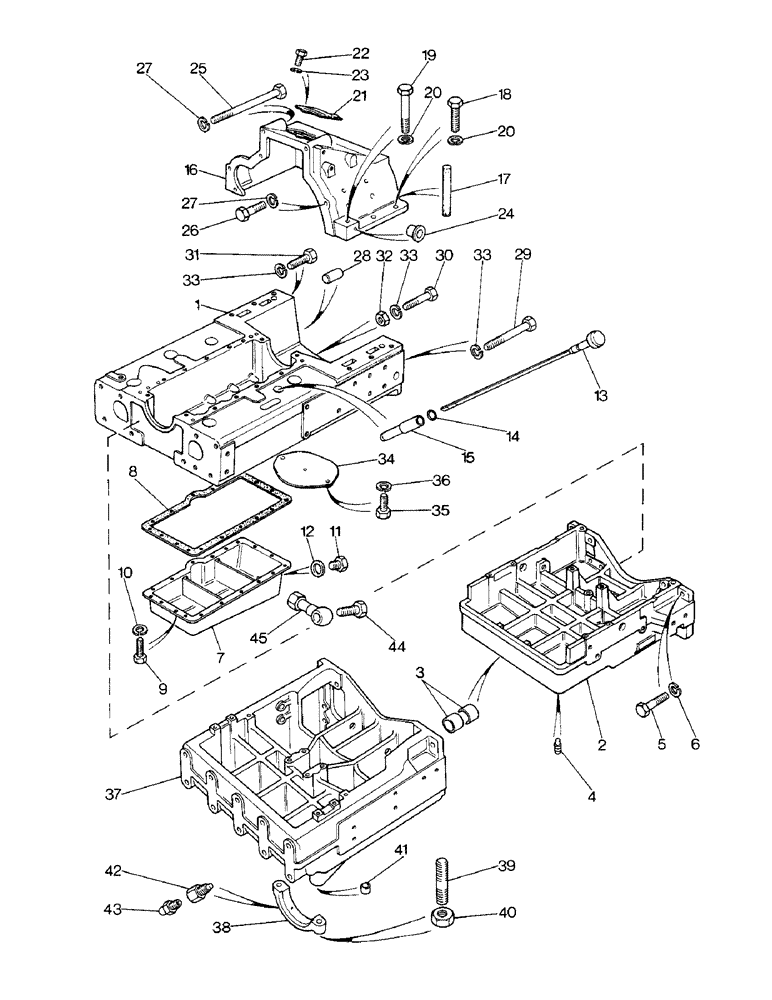

Запчасти Case IH 1390 (M-01) - FRONT MAIN FRAME AND COVERS, 1290 TWO WHEEL DRIVE, 1390 TWO WHEEL DRIVE, 1290, 1390 MFD (12) - FRAME

1

K955200

FRAME

- main, front

1шт.

2

K956246

CASTING

EXTENSION - front (Not with Carraro front axle)

1шт.

3

K15597

BUSHING

- trunnion pin, 1-1/2 inch (Not with Carraro front axle)

4шт.

4

K622256

FITTING

- grease, 3/16 inch (1290 2WD, 1390 2WD)

2шт.

4

K622256

FITTING

- grease, 3/16 inch (1290, 1390 MFD)

1шт.

5

K600604

SCREW

FITTING - grease, 3/16 inch (1290 2WD, 1390 2WD)

10шт.

5

K600604

SCREW

FITTING - grease, 3/16 inch (1290, 1390 MFD)

1шт.

5

K608792

BOLT

- 7/16 UNC x 1-3/4 inch, grade V (1290, 1390 MFD)

10шт.

6

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

10шт.

7

K956548

SUMP

COVER - sump

1шт.

8

K918684

GASKET,2.38mm Thk

- sump

1шт.

9

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 UNC x 5/8 inch (1290 2WD, 1390 2WD)

18шт.

9

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 UNC x 5/8 inch (1290, 1390 MFD)

15шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch (1290 2WD, 1390 2WD)

18шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch (1290, 1390 MFD)

15шт.

11

K623849

PLUG

- sump drain, 1/2 inch BSP

1шт.

12

K626317

WASHER

- sealing, 7/8 inch

1шт.

13

K964772

DIPSTICK

- engine sump

1шт.

14

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch ID

1шт.

15

K948224

SLEEVE

- engine dipstick

1шт.

16

K956380

CLUTCH

HOUSING - clutch

1шт.

17

K200717

SEAL

- clutch housing

2шт.

18

K603112

BOLT

- 1/2 UNC x 2 inch

5шт.

19

K600814

BOLT

- 1/2 UNC x 3 inch

1шт.

20

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

21

K904246

COVER

- clutch housing

1шт.

22

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2 inch

2шт.

23

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

24

K628087

PLUG

- plastic, 3/8 inch, timing peg

1шт.

25

K600425

BOLT

- 3/8 UNC x 5-1/4 inch

2шт.

26

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

1шт.

27

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

28

K621826

PIN

DOWEL - 5/8 x 1-1/8 inch

2шт.

29

K600615

BOLT

- 7/16 UNC x 3-1/4 inch

4шт.

30

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 inch

4шт.

31

K603006

SCREW

BOLT - 7/16 UNC x 1-3/8 inch

2шт.

32

280717

NUT,7/16"-14, G5

4шт.

33

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

10шт.

34

K956333

COVER

- clutch

1шт.

35

K602733

SCREW

BOLT - 1/4 UNC x 5/8 inch

2шт.

36

K19470

WASHER

- 1/4 inch

2шт.

37

K204694

EXTENSION

ASSEMBLY - front (With Carraro front axle) (1290, 1390 MFD), Includes Ref: 38 - 41

1шт.

38

NSS

NOT SOLD SEPARAT

CAP - bearing (With Carraro front axle) (1290, 1390 MFD)

2шт.

39

K260224

STUD

- (Carraro 107085) (With Carraro front axle) (1290, 1390 MFD)

4шт.

40

K965427

NUT

- (Carraro 22436) (With Carraro front axle) (1290, 1390 MFD)

4шт.

41

K260223

RING

DOWEL - ring (Carraro 108501) (With Carraro front axle) (1290, 1390 MFD)

4шт.

42

K965424

ADAPTER

SCREW - locating (With Carraro front axle) (1290, 1390 MFD)

2шт.

43

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease, M6 (With Carraro front axle) (1290, 1390 MFD)

2шт.

44

K965416

BOLT

BOLT - special, 1/2 inch BSP (With Carraro front axle) (1290, 1390 MFD)

1шт.

45

K965413

PIPE

EXTENSION - sump drain (With Carraro front axle) (1290, 1390 MFD)

1шт.
