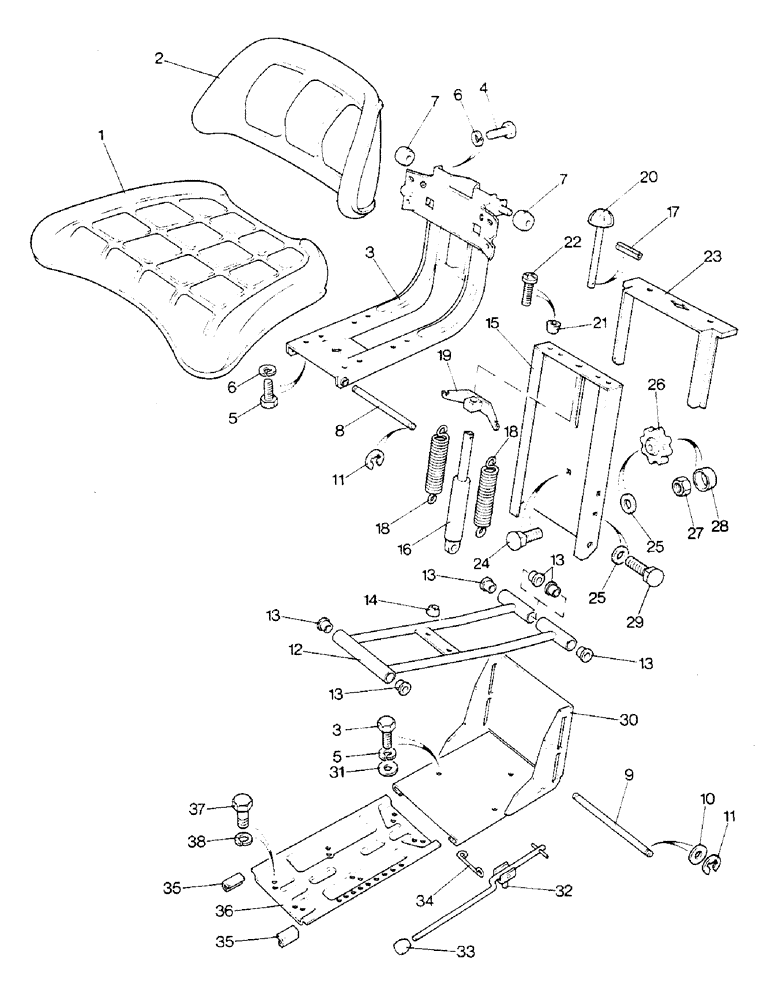

Запчасти Case IH 1390 (T-10) - OPERATOR SEAT ASSEMBLY (10) - OPERATORS PLATFORM/CAB

K300771

SEAT

ASSEMBLY - operator, Includes Ref: 1 - 38

1шт.

1

K260656

SEAT COVER

SEAT - operator (Grammer 112680)

1шт.

2

K260655

SEAT

BACKREST - seat (Grammer 112681)

1шт.

3

K260658

SEAT

BRACKET - support (Grammer 112682)

1шт.

4

K650029

SCREW

BOLT - M8 x 20 MM

4шт.

5

K650641

SCREW

BOLT - M8 x 16 MM

6шт.

6

K650641

SCREW

WASHER - lock, 8 MM

10шт.

7

K260659

ROLLER

- nylon (Grammer 200001)

2шт.

8

K260661

SHAFT

PIN - pivot, front (Grammer 112028)

1шт.

9

K260672

SHAFT

PIN - pivot, rear (Grammer 112012)

1шт.

10

K651780

WASHER

- 12 MM

4шт.

11

K621587

RING, SNAP

RING - snap, 3/8 inch, external

4шт.

12

K260663

BEAM

LINK - support (Grammer 112684)

1шт.

13

K962431

BUSHING

- nylon (Grammer 200008)

6шт.

14

K260664

STOP

BUFFER - link (Grammer 109172)

2шт.

15

K260667

SUPPORT

FRAME - seat (Grammer 112685)

1шт.

16

K260660

DAMPER

- seat (Grammer 110573)

1шт.

17

K964818

PIVOT

PIN - 4 x 25 MM (Grammer 102953)

1шт.

18

K962437

SPRING

SPING - tension (Grammer 200628)

2шт.

19

K260666

SPRING

ANCHOR - frame (Grammer 108378)

1шт.

20

K260665

KNOB

SPINDLE ASSEMBLY - control (Grammer 112030)

1шт.

21

K963471

BUSHING

BUFFER - rubber (Grammer 200811)

2шт.

22

K963472

SCREW

- frame

2шт.

23

K260668

COVER

- plastic (Grammer 1122686)

1шт.

24

K260662

BOLT

- M10 x 35 MM

1шт.

25

K963468

WASHER

- 10 MM

6шт.

26

K260671

KNOB

NUT - hand (Grammer 112025)

1шт.

27

K651628

NUT

- M10

2шт.

28

K260670

CAP

- plastic (Grammmer 900127)

1шт.

29

K963470

BOLT

- M10, special

2шт.

30

K260669

SUPPORT

FRAME - base (Grammer 112687)

1шт.

31

K964793

WASHER

- 8 MM

2шт.

32

K260674

LEVER

ASSEMBLY - adjusting (Grammer 112689), Includes Ref: 33

1шт.

33

K260675

KNOB

- adjusting lever (Grammer 107915)

1шт.

34

K260673

SPRING

- lever (Grammer 112194)

1шт.

35

K260657

BRACKET

BLOCK - slider (Grammer 112185)

4шт.

36

K260537

BASE

PLATE - base (Grammer 112688)

1шт.

37

K650660

BOLT

- M10 x 25 MM

4шт.

38

892-11010

LOCK WASHER,M10

(Replaces K615849) M10

4шт.
