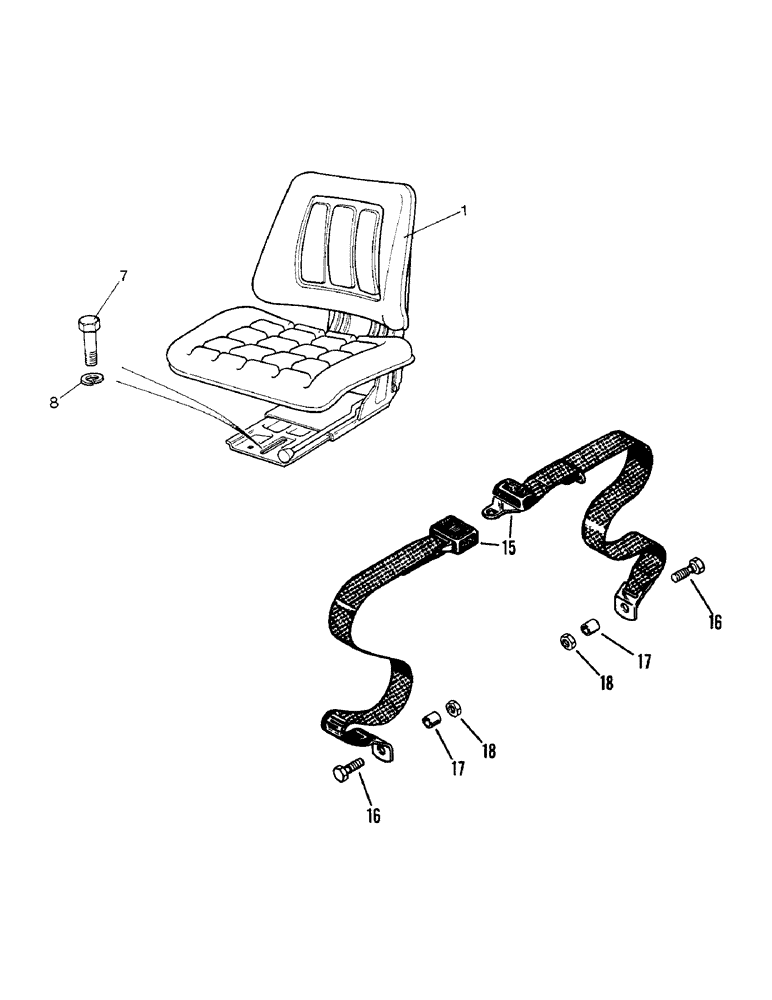

Запчасти Case IH 1390 (T-09) - SEAT ASSEMBLY (10) - OPERATORS PLATFORM/CAB
17
18
16
16
7
8
17
1
18
15
№
Артикул
Название
Примечание
Количество
1
K300771
SEAT
ASSEMBLY - standard (See fig. T10-1)
1шт.
7
K650660
BOLT
- M10 x 25 MM, Serial Range: seat-tractor
4шт.
8
K651849
WASHER
- lock, 10 MM, Serial Range: seat-tractor
4шт.
15
A160404
SAFETY BELT
BELT - seat safety
1шт.
16
A61946
STEP BOLT
BOLT - shoulder, seat belt
4шт.
17
A60907
BUSHING
SPACER - bolt
2шт.
18
131-205
LOCK NUT,5/16"-18
NUT - hex lock, 5/16 inch NC (With nylon insert)
2шт.
Выбрано товаров: 7
