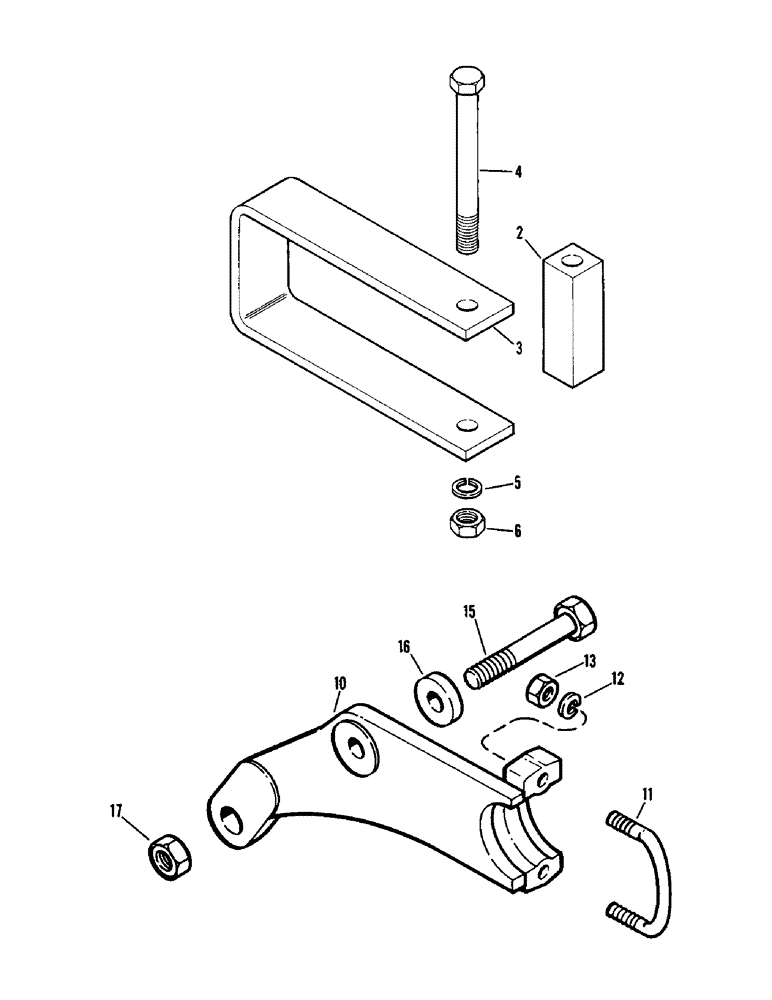

Запчасти Case IH 1390 (L-11) - IMPLEMENT SAFETY CHAIN SUPPORT (09) - IMPLEMENT LIFT

A169122

KIT

- safety chain support, Includes Ref: 2 - 6

1шт.

2

A166965

BLOCK

- clevis

1шт.

3

A165682

CLEVIS

- safety chain

1шт.

4

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

5

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

25-1610

NUT,5/8"-11, G5, Hvy

- heavy hex, 5/8 inch NC

1шт.

10

K203597

ARM

- lift, pick-up

1шт.

11

K205268

BOLT

U-BOLT - 1/2 inch NC, pick-up lift arm

1шт.

12

K19484

LOCK WASHER

WASHER - lock, 1/2 inch, pick-up lift arm

2шт.

13

280431

NUT,1/2"-13, G5

Pick-up lift arm 1/2"-13, G5

2шт.

15

K609136

BOLT

- hex, 3/4 NC x 4-1/2 inch, pick-up lift arm

1шт.

16

K203599

BUSHING

SPACER - lift arm, pick-up

1шт.

17

K607086

NUT

- hex lock, 3/4 inch NC, pick-up lift arm

1шт.
