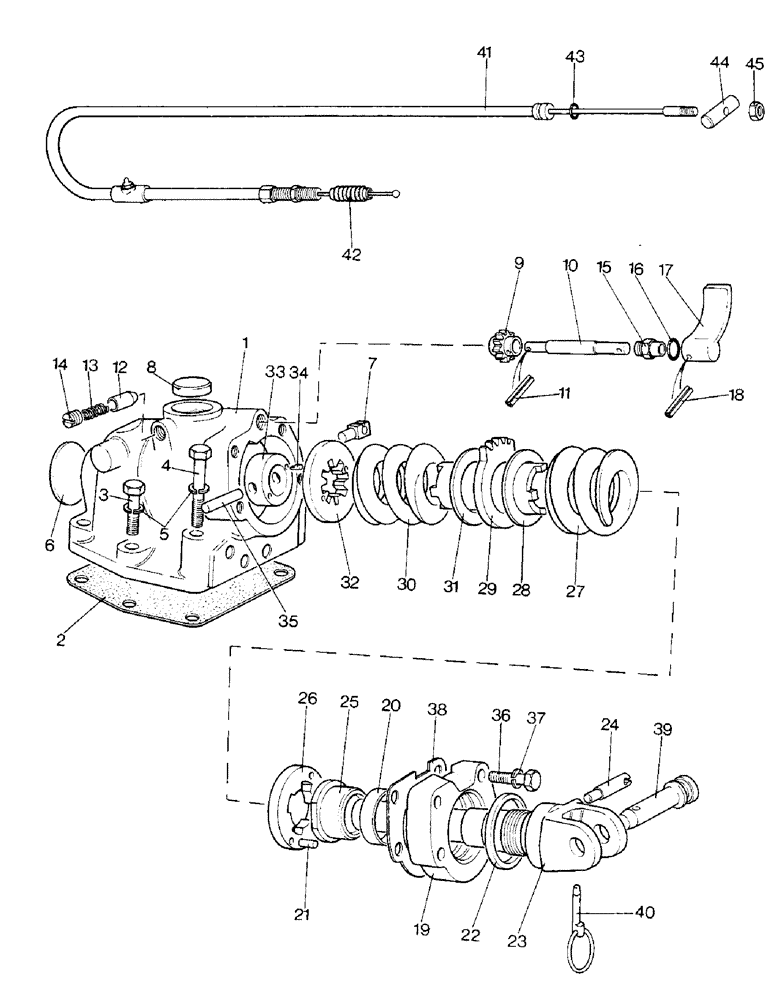

Запчасти Case IH 1390 (L-07) - SELECTIVE SENSING (09) - IMPLEMENT LIFT

1

K203047

HOUSING

- selective sensing

1шт.

2

K926451

GASKET,0.56mm Thk

- housing

1шт.

3

K600872

SCREW

BOLT - 1/2 UNC x 1-7/8 inch

4шт.

4

K600887

BOLT

- 1/2 UNC x 3-1/4 inch

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 3/8 inch

6шт.

6

K623813

PLUG

- core, 2-3/8 inch

1шт.

7

K912371

CABLE

SUPPORT - cable, outer

1шт.

8

K623797

PLUG

- core, 1-3/4 inch

1шт.

9

K929874

SELECTOR

PINION - spindle

1шт.

10

K940044

SELECTOR

SPINDLE lever

1шт.

11

K690338

PIN

- roll, 5/32 x 5/8 inch

1шт.

12

K946440

PLUNGER

- detent

1шт.

13

K625285

SPRING

- detent plunger

1шт.

14

K606281

SCREW

- 1/2 inch UNC

1шт.

15

K940045

BUSHING

- threaded

1шт.

16

K623681

WIPER

RING - wiper, 1/2 inch ID

1шт.

17

K940046

SELECTOR

LEVER - selector

1шт.

18

K623727

GROOVED PIN,5/32" x 7/8", Type A

PIN - roll, 5/32 x 7/8 inch

1шт.

K947303

SHAFT

ASSEMBLY - sensing, Includes Ref: 19 - 45

1шт.

19

K964912

PLATE

ASSEMBLY - end, Includes Ref: 20 and 21

1шт.

20

K621423

BUSHING

- sleeve

1шт.

21

K940031

PIN

DOWEL - 1/4 x 3/4 inch

2шт.

22

K623460

WIPER

SEAL - wiper, 2-1/2 inch ID

1шт.

23

K929808

SHAFT

- sensing

1шт.

24

K940047

BRACKET

SUPPORT - cable, inner

1шт.

25

K940035

SLEEVE

- shaft

1шт.

26

K947302

WASHER

- thrust

1шт.

27

K928315

SPRING

- 2 inch ID

1шт.

28

K928388

SHIM

- 0.003 inch

1шт.

28

K928389

SHIM

- 0.007 inch

1шт.

28

K928390

SHIM

- 0.015 inch

1шт.

29

K940036

SUPPORT

- spring

1шт.

30

K928314

SPRING

- 1-3/4 inch ID

1шт.

31

K928392

SHIM

- 0.003 inch

1шт.

31

K928393

SHIM

- 0.007 inch

1шт.

31

K928394

SHIM

- 0.015 inch

1шт.

32

K940039

WASHER

- thrust 0.373 inch

1шт.

32

K940040

WASHER

- thrust, 0.365 inch

1шт.

32

K940041

WASHER

- thrust, 0.357 inch

1шт.

33

K947867

COLLAR

ASSEMBLY - with dowels, Includes Ref: 34

1шт.

34

K940043

PIN

DOWEL - locating

2шт.

35

K915117

PIN

- retaining, 3/8 x 2-1/4 inch

1шт.

36

K600606

BOLT

- 7/16 UNC x 2 inch

4шт.

37

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

38

K940032

SHIM

- 0.005 inch

1шт.

38

K940033

SHIM

- 0.010 inch

1шт.

38

K940034

SHIM

- 0.030 inch

1шт.

39

K919725

PIN,19.05mm OD x 111.13mm L

- link

1шт.

40

K66408

PIN

ASSEMBLY - linch

1шт.

41

K963417

LINK

CABLE - control

1шт.

42

K906182

RUBBER

SEAL - dirt

1шт.

43

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

- 1/4 inch ID

1шт.

44

K915053

FITTING

PIN - cable, 3/8 x 9/16 inch

1шт.

45

K617080

NUT

- No. 10 UNF

2шт.
