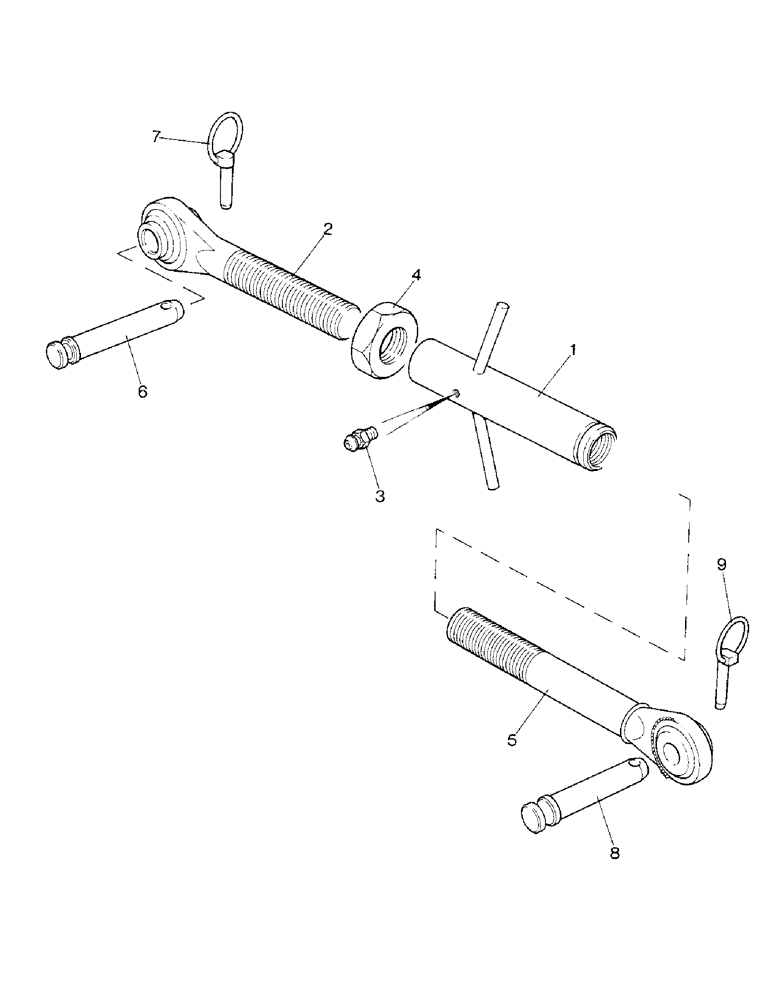

Запчасти Case IH 1390 (L-05) - TOP LINK (09) - IMPLEMENT LIFT

K940504

LINK

ASSEMBLY - top, standard

1шт.

K940499

LINK

ASSEMBLY - top, extended, Includes Ref: 1 - 5

1шт.

1

K920800

TURNBUCKLE

BUCKLE - turn, 1-1/4 inch BSF

1шт.

2

K920798

BALL

SCREW ASSEMBLY - 8 inch, right-hand

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

4

K19448

LOCK NUT

- lock, 1-1/4 inch BSF

1шт.

5

K964865

SHAFT

SCREW ASSEMBLY - 12 inch, left-hand

1шт.

5

K964863

SHAFT

SCREW ASSEMBLY - 15 inch, left-hand thread

1шт.

6

K919725

PIN,19.05mm OD x 111.13mm L

- link, sensing unit

1шт.

7

K66408

PIN

ASSEMBLY - linch

1шт.

8

K903981

HITCH PIN

PIN - link, category 1

1шт.

8

K65690

HITCH PIN

PIN - link, category 2

1шт.

9

K920359

PIN

ASSEMBLY - linch

1шт.
