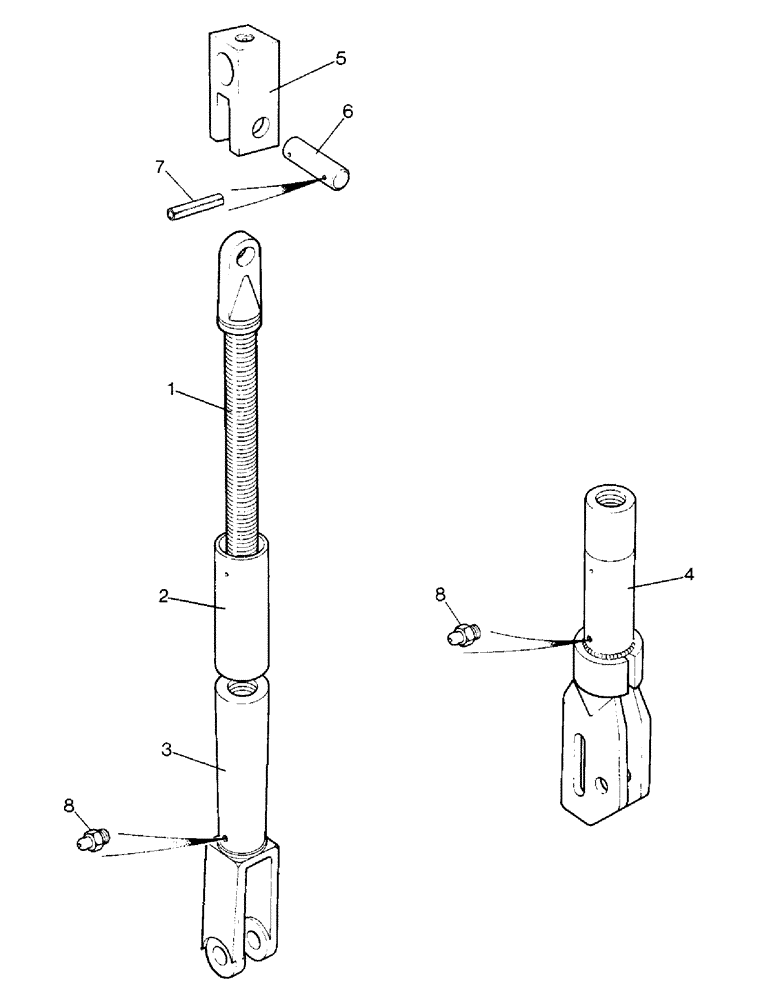

Запчасти Case IH 1390 (L-03) - LIFT ROD (09) - IMPLEMENT LIFT

K204877

ROD

ASSEMBLY - lift, with slotted nut, Includes Ref: 1 - 8

1шт.

1

K922767

ADJUSTMENT SCREW

ASSEMBLY - adjusting, 1 inch Whitworth x 10-7/8 inch

1шт.

2

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4 inch

1шт.

3

K940700

NUT

- adjusting, standard

1шт.

4

K945967

CLEVIS

NUT - adjusting, slotted

1шт.

5

K921914

FORK

END - fork

1шт.

6

K948353

PIVOT PIN

PIN - pivot, 5/8 x 2-1/4 inch

1шт.

7

K623740

SPLIT PIN/SAFETY PIN

PIN - roll, 3/16 x 7/8 inch

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.
