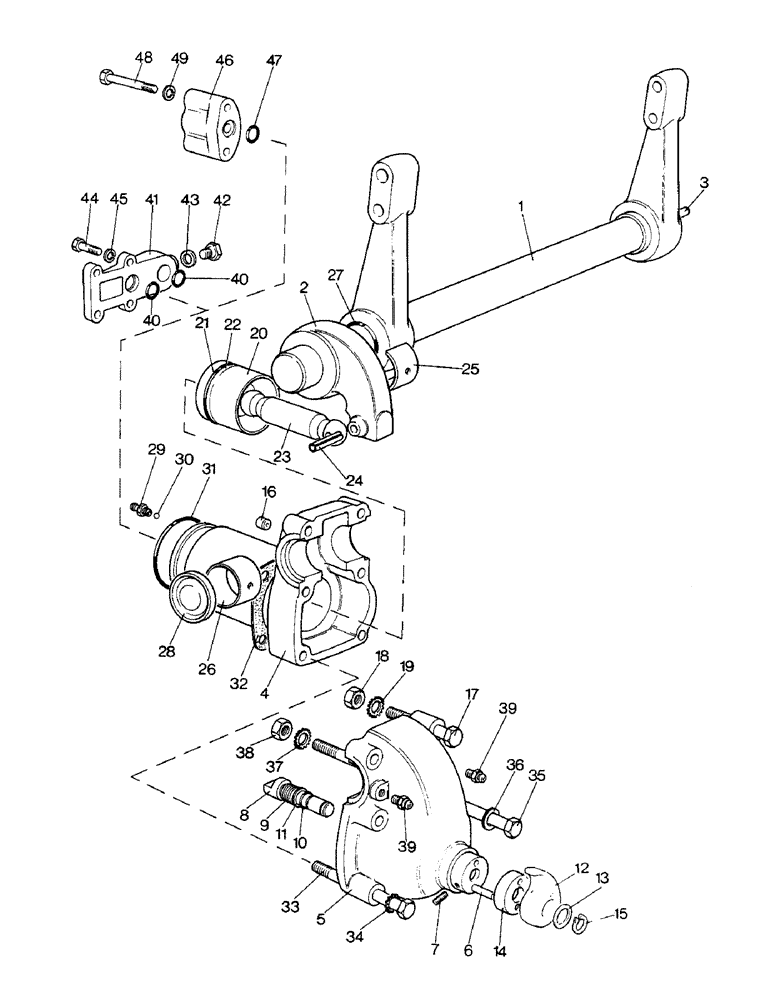

Запчасти Case IH 1390 (L-01) - RAMSHAFT AND CYLINDER (09) - IMPLEMENT LIFT

1

K921919

SHAFT

RAMSHAFT AND LEVERS - linkage, Includes Ref: 2 and 3

1шт.

2

K913762

ARM

LEVER - linkage, ram

1шт.

3

K621807

PIN

DOWEL - 5/16 x 1/2 inch

1шт.

4

K961922

COVER

CYLINDER BODY AND COVER ASSEMBLY - ram

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

4

K260467

COVER

CYLINDER BODY AND COVER ASSEMBLY - ram , Includes Ref: 5 - 19

1шт.

1290 - P.I.N. 11051526 and after. 1390 - P.I.N. 11122081 and after

1шт.

5

K961923

COVER

AND LIFT LOCK ASSEMBLY - ram

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

5

K260468

COVER

AND LIFT LOCK ASSEMBLY - ram , Includes Ref: 6 - 15

1шт.

1290 - P.I.N. 11051526 and after. 1390 - P.I.N. 11122081 and after

1шт.

K623789

PLUG

- core, 3/4 inch diameter

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

6

K620027

NEEDLE

PIN - roll

2шт.

7

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

- locating

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

7

K606322

SCREW

- locating

1шт.

1290 - P.I.N. 11051526 and after. 1390 - P.I.N. 11122081 and after

1шт.

8

K942923

LATCH

PIN - latch

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

9

K913436

SPRING

- latch

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

10

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch internal diameter

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

11

K907061

BUSHING

RING - spacer

1шт.

1290 - prior to P.I.N. 11051526. 1390 - prior to P.I.N. 11122081

1шт.

12

K947974

LEVER ASSY.

LEVER - control

1шт.

13

K626210

SHIM,.030" Thk

Lever .030" Thk

1шт.

14

K913724

DUST CAP

SEAL - dirt, lever

1шт.

15

K11290

RING, SNAP

RING - snap, 3/4 inch, external

2шт.

16

K924685

RUBBER

RESTRICTOR - cylinder body

1шт.

17

K608865

BOLT

- 5/8 UNC x 4-1/2 inch (Replaces K601218)

2шт.

18

K607240

NUT

- 5/8 inch UNC (Replaces K607048)

2шт.

19

K11516

WASHER

- lock, 5/8 inch

2шт.

20

K913769

PISTON

- standard

1шт.

21

K623519

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

- 3-1/8 inch ID

1шт.

22

K623567

RING,79.09mm ID x 89.18mm OD x 2.64mm Thk

- backup

1шт.

23

K913774

ROD

- connecting

1шт.

24

K623920

SPLIT PIN/SAFETY PIN

PIN - roll, 1/4 x 1-7/8 inch

1шт.

25

K913772

BEARING HALF

BEARING - halves

2шт.

26

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

- bearing

1шт.

27

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 2-3/4 inch ID

1шт.

28

K913773

PLUG

DISC - sealing

1шт.

29

K910104

SCREW

- 1/8 inch BSP, air removal

1шт.

30

K11286

BALL

- 5/16 inch OD, steel

1шт.

31

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- 3-7/8 inch ID

1шт.

32

K926385

GASKET

- cylinder to rear axle housing

1шт.

33

K600825

SCREW

BOLT - 1/2 UNC x 5-3/4 inch

2шт.

34

K11518

WASHER

- lock, 1/2 inch

2шт.

35

K601322

BOLT

- 5/8 UNC x 13 inch (Replaces K601280)

2шт.

36

K607240

NUT

WASHER - sealing, 5/8 inch (Replaces K626874)

2шт.

37

K11516

WASHER

- lock, 5/8 inch

2шт.

38

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

40

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 inch ID

1шт.

41

K910107

HYD CONNECTOR

CONNECTOR - tube to cylinder (1290 tractor)

1шт.

42

K619543

PLUG

- 1/2 inch UNF (1290 tractor)

1шт.

43

K15735

WASHER

- sealing, 1/2 inch (1290 tractor)

1шт.

44

K600475

BOLT

- 3/8 UNC x 1/2 inch (1290 tractor)

4шт.

45

K19482

SPRING WASHER

WASHER - lock, 3/8 inch (1290 tractor)

4шт.

46

K919243

CONNECTOR, ELEC

CONNECTION - tube to cylinder (1390 tractor)

1шт.

47

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch ID (1390 tractor)

1шт.

48

K600414

BOLT

- 3/8 UNC x 2-3/4 inch (1390 tractor)

2шт.

49

K19482

SPRING WASHER

WASHER - lock, 3/8 inch (1390 tractor)

2шт.
