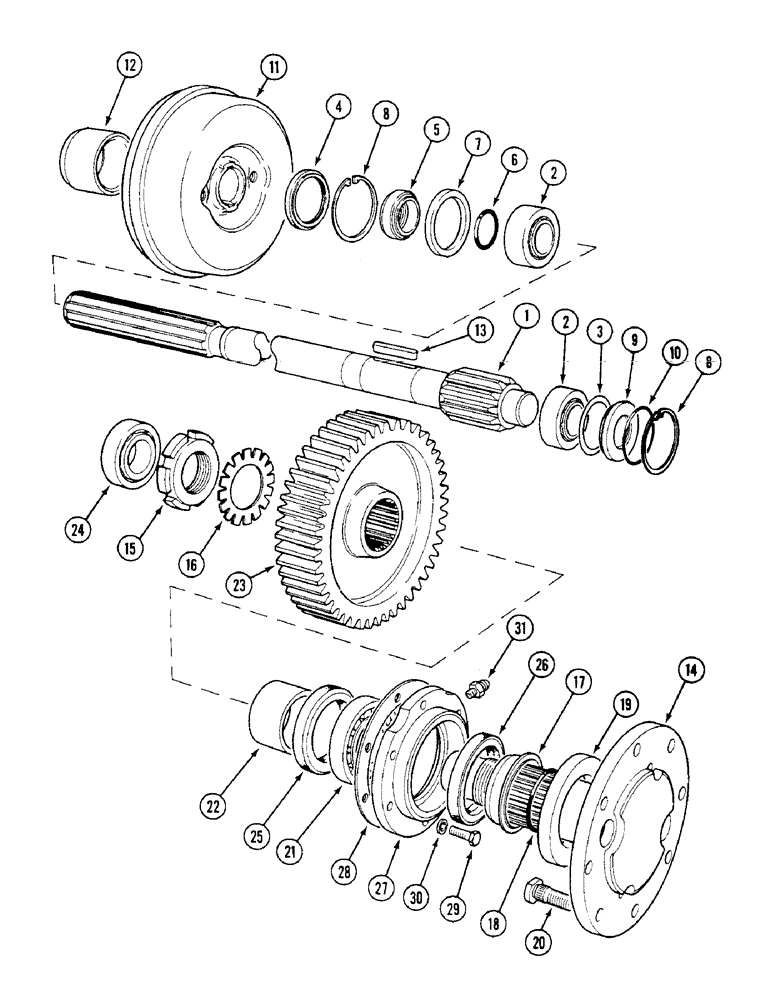

Запчасти Case IH 1294 (6-174) - FINAL DRIVE REDUCTION GEARS AND SHAFTS (06) - POWER TRAIN

1

K956738

SHAFT

- pinion, spur, 10 teeth

2шт.

2

NSS

NOT SOLD SEPARAT

BEARING - roller, tapered

4шт.

3

K907514

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

3

K907515

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

4

K623455

SEAL

- oil, 2-1/2 x 3-1/4 x 3/8 inch (64 x 82 x 10 mm)

2шт.

5

K202215

COLLAR

- spur pinion shaft

2шт.

6

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

7

K904256

SPACER

- housing

2шт.

8

K13042

RING, SNAP

RING - snap, 3-1/4 inch (82 mm) internal

4шт.

9

K929045

COVER

- end, pinion bearing

2шт.

10

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

11

K917989

BRAKE

DRUM - brake

2шт.

12

K201338

SLEEVE

COLLAR - drum

2шт.

13

K622324

KEY

- 11/32 x 1/2 x 2-1/2 inch

4шт.

14

K262132

DRIVE

SHAFT - final drive, Includes: Ref. 15 & 16

2шт.

15

K85359

LOCK NUT

- ring, 2-3/4 inch

1шт.

16

K85355

LOCK WASHER

WASHER - tab, ring nut

1шт.

17

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

- drive shaft

2шт.

18

238-5148

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

- 2-7/8 inch (73 mm) ID

4шт.

19

K910397

SEAL

SHIELD - dirt, driveshaft

2шт.

20

K611463

STUD

BOLT - 3/4 UNF x 2-1/2 inch

16шт.

21

NSS

NOT SOLD SEPARAT

BEARING - roller, tapered

2шт.

22

K927061

SLEEVE

- driveshaft, 10/49 and 11/49 ratio

2шт.

23

K949146

WHEEL

GEAR - spur, 49 teeth

2шт.

24

NSS

NOT SOLD SEPARAT

BEARING - roller, tapered

2шт.

25

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, inner, 90 x 110 x 12 mm

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, outer, 3-1/4 x 4-1/4 x 5/8 inch (82 x 108 x 16 mm)

2шт.

27

K944516

HOUSING

- oil seal, right-hand

1шт.

27

K944517

HOUSING

- oil seal, left-hand

1шт.

28

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

28

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

28

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

28

K902775

GASKET

SHIM - 0.015 inch (0.38 mm)

1шт.

28

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch (0.76 mm)

1шт.

29

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

12шт.

30

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.
