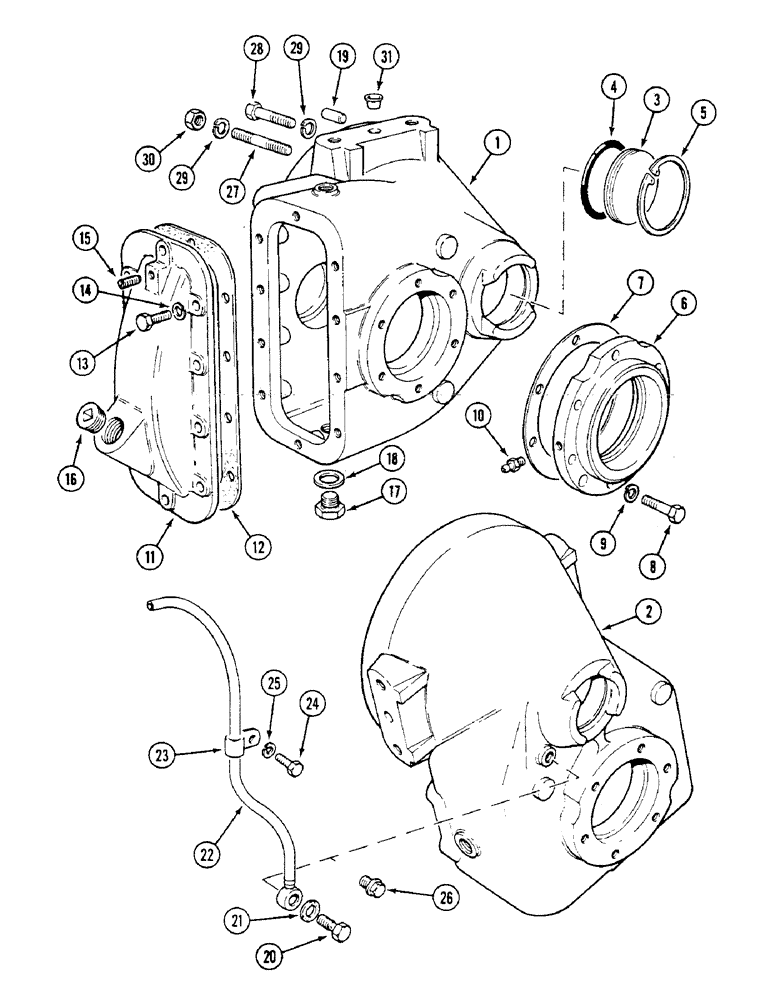

Запчасти Case IH 1294 (6-170) - FINAL DRIVE REDUCTION HOUSING AND COVERS (06) - POWER TRAIN

1

K203976

HOUSING

- standard clearance

2шт.

2

K203978

HOUSING

- right-hand

1шт.

2

K203977

HOUSING

- left-hand

1шт.

3

K929045

COVER

- end, pinion bearing

2шт.

4

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

5

K13042

RING, SNAP

RING - snap, 3-1/4 inch (82 mm) internal

2шт.

6

K944516

HOUSING

- oil seal, right-hand

1шт.

6

K944517

HOUSING

- oil seal, left-hand

1шт.

7

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

7

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

7

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

7

K902775

GASKET

SHIM - 0.015 inch (0.38 mm)

1шт.

7

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch (0.76 mm)

1шт.

8

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

12шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

11

K203979

COVER

- reduction housing

2шт.

11

K901556

COVER

- reduction housing

2шт.

12

K923221

GASKET,0.51mm Thk

- cover

2шт.

13

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

20шт.

14

492-11038

LOCK WASHER,3/8"

20шт.

15

K947891

BREATHER

- breather, 3/8 inch UNF (Standard clearance)

2шт.

15

K612900

SCREW

PLUG - 3/8 UNF x 1/2 inch (High clearance)

2шт.

16

K12362

PLUG

- taper, 1 inch BSP

2шт.

17

K623849

PLUG

- sump drain, 1/2 inch BSP

2шт.

18

K15143

WASHER

- sealing, 7/8 inch (22 mm)

2шт.

19

K11482

PIN

DOWEL - 7/16 x 1-1/4 inch

4шт.

20

K620360

BANJO BOLT

BOLT - banjo, 1/8 inch BSP (High clearance housing)

2шт.

21

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- sealing

4шт.

22

K946147

TUBE

BANJO AND TUBE - reduction housing

2шт.

23

K621638

CLIP

- lamp wire

4шт.

24

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - pan head Phillips, 1/4 x 1/2 inch NC

4шт.

25

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

26

K19591

PLUG

- 1/8 BSP

2шт.

27

K600807

BOLT

STUD - 1/2 UNC x 2-1/8 inch (Tractor with rollbar)

8шт.

27

K608413

STUD

- 1/2 UNC x 2-1/2 inch (Tractor with cab)

4шт.

28

K600908

BOLT

- 1/2 UNC x 1-3/4 inch (Tractor with or without rollbar)

14шт.

29

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

20шт.

30

K607004

NUT

- hex, 1/2 inch UNC

6шт.

31

K628092

PLUG,Cap, .547" OD

- plastic, 1/2 inch (13 mm)

2шт.
