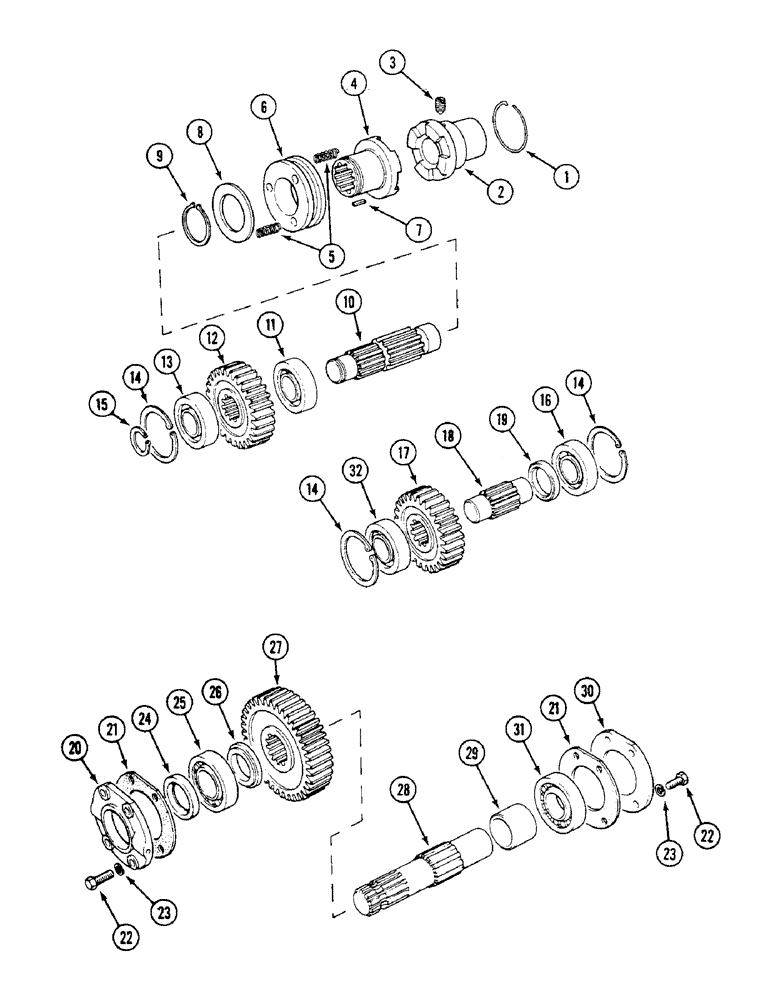

Запчасти Case IH 1294 (6-168) - TRANSFER GEARBOX GEARS AND SHAFTS - MFD (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K965760
SPRING
RING - snap (Carraro 108169)
1шт.
2
K261818
SPLINED COUPLING
COUPLING - drive (Carraro 116964)
1шт.
3
K260742
SCREW
- drive coupling (Carraro 110550)
1шт.
4
K261815
SPLINED COUPLING
CLUTCH - sliding (Carraro 117836)
1шт.
5
K261814
SPRING
- clutch (Carraro 115798)
6шт.
6
1967549C1
SLEEVE
- clutch
1шт.
7
1966855C1
SPLINE
KEY - sleeve
1шт.
8
K261812
WASHER
- clutch (Carraro 115208)
1шт.
9
800-1152
SNAP RING,M52, External
RING - snap
1шт.
10
K261811
DRIVE SHAFT
SHAFT - drive, gearbox (Carraro 115961)
1шт.
11
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING - ball
1шт.
12
K260271
PINION
GEAR - drive (Carraro 106583)
1шт.
13
ST241
BALL BEARING,30 mm ID x 72 mm OD x 19 mm
BEARING - ball
1шт.
14
K965403
RING, SNAP
RING - snap (Carraro 24913)
3шт.
15
K965402
RING, SNAP
RING - snap (Carraro 24785)
1шт.
16
ST241
BALL BEARING,30 mm ID x 72 mm OD x 19 mm
BEARING - ball
1шт.
17
K260271
PINION
GEAR - drive (Carraro 106583)
2шт.
18
K965389
SHAFT
- intermediate (Carraro 105359)
1шт.
19
K260277
COLLAR
SPACER - bearing (Carraro 106580)
1шт.
20
K965397
COVER
PLUG - drain (Carraro 89275)
1шт.
21
K965398
GASKET
- end plates (Carraro 88830)
2шт.
22
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 25 mm
8шт.
23
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
8шт.
24
K965399
OIL SEAL
- oil (Carraro 25156)
1шт.
25
K965406
ROLLER BEARING
BEARING - roller (Carraro 27544)
1шт.
26
K260278
COLLAR
SPACER - front (Carraro 104839)
1шт.
27
K260272
GEAR
- driven (Carraro 105803)
1шт.
28
K260273
SHAFT
- output (Carraro 106581)
1шт.
29
K965409
SHAFT
SPACER - rear (Carraro 105357)
1шт.
30
K965396
COVER
PLATE - rear (Carraro 89244)
1шт.
31
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING - ball
1шт.
32
K395136
ROLLER BEARING
- roller (Carraro 27515)
1шт.
Выбрано товаров: 32
