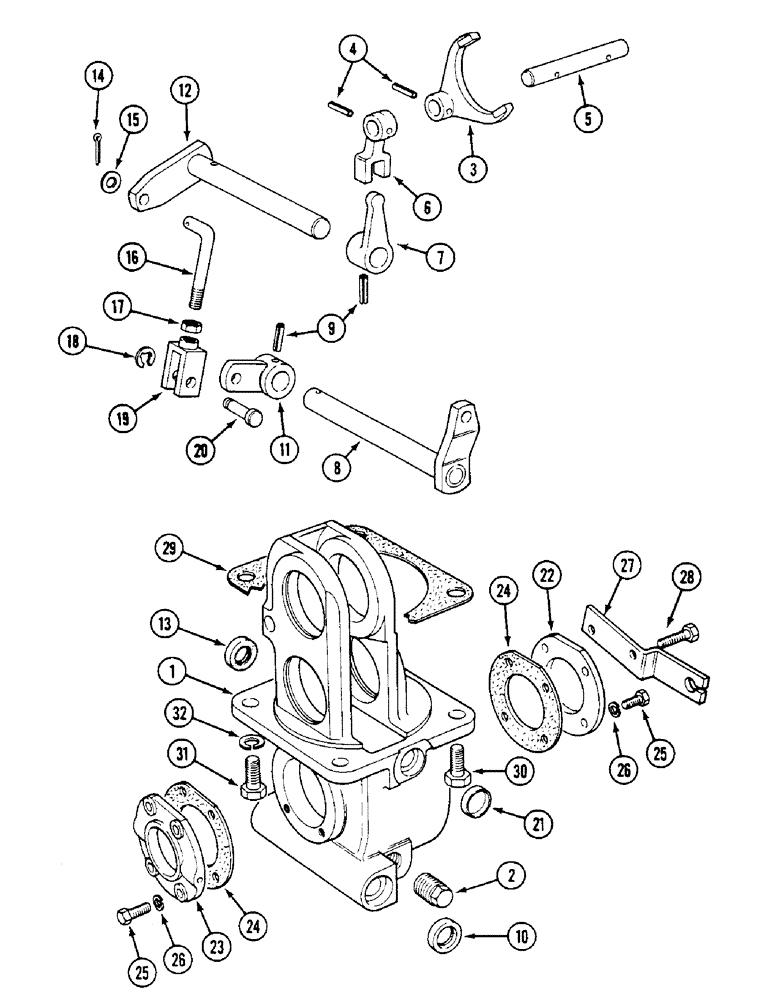

Запчасти Case IH 1294 (6-166) - TRANSFER GEARBOX, HOUSING AND SELECTOR - MFD (06) - POWER TRAIN

1

K205140

HOUSING

- transfer (Carraro 113604), Includes: Ref. 2 - 28

1шт.

2

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro no. 92270) (Replaces K965397) M22 x 1.5

1шт.

3

K261801

FORK

- selector (Carraro 115964)

1шт.

4

905829R1

PIN,M5 x 26, Coiled

- roll, 5 x 26 mm

2шт.

5

K261802

SHAFT

- selector fork (Carraro 115963)

1шт.

6

K260265

SELECTOR

JAW - selector (Carraro 105806)

1шт.

7

K260266

SELECTOR

LEVER - selector (Carraro 106578)

1шт.

8

K205141

SHAFT

ASSEMBLY - bellcrank (Carraro 113605)

1шт.

9

905812R1

PIN,M6 x 36, Coiled

- roll, 6 x 35 mm

1шт.

10

905835R1

OIL SEAL,20mm ID x 30mm OD x 7mm Thk

- oil

2шт.

11

K261803

LEVER

- operating (Carraro 117839)

1шт.

12

K260744

SHAFT

ASSEMBLY - bellcrank (Carraro 111824)

1шт.

13

905835R1

OIL SEAL,20mm ID x 30mm OD x 7mm Thk

- oil

1шт.

14

K19528

PIN

- cotter, 1/16 x 1/2 inch

1шт.

15

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.

16

K395209

ROD

- link

1шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

K261807

RING

- snap

1шт.

19

K260745

FORK

- shift, 10 (Carraro 85801)

1шт.

20

1966771C1

PIN

- clevis

1шт.

21

K260751

CORE

PLUG - core (Carraro 112588)

1шт.

22

K965396

COVER

PLATE - rear (Carraro 89244)

1шт.

23

K965397

COVER

PLUG - drain (Carraro 89275)

1шт.

24

K965398

GASKET

- end plates (Carraro 88830)

2шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

6шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (Carraro 117829) M8

8шт.

27

K261808

BRACKET

- cable support

1шт.

28

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

29

K260755

GASKET

- transfer housing (Carraro 111664)

1шт.

30

K260269

BOLT

BOLT - 5/8 inch UNC (Carraro 21475)

3шт.

31

K260276

PIN

BOLT - 5/8 inch UNC (Carraro 106594)

1шт.

32

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.
