Запчасти Case IH 1294 (6-158) - DIFFERENTIAL LOCK AND CONTROLS, TRACTORS WITHOUT CAB (06) - POWER TRAIN

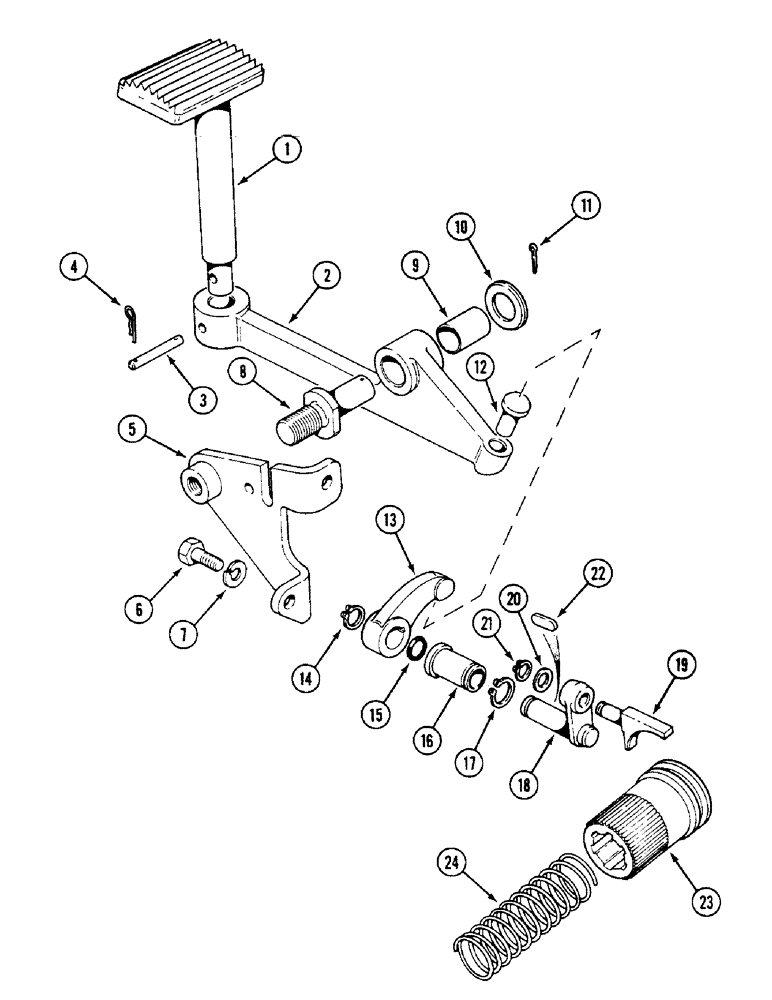

Схема запчастей Case IH 1294 - (6-158) - DIFFERENTIAL LOCK AND CONTROLS, TRACTORS WITHOUT CAB (06) - POWER TRAIN
17
21
5
9
4
14
24
22
1
11
12
19
7
23
15
2
3
13
16
6
6
20
10
18

Артикул

Название

Примечание

Количество

1

K200543

LOCK

PEDAL - differential lock

1шт.

2

K200533

LEVER

- pedal

1шт.

3

K625912

CLEVIS

PIN - clevis, 1/4 x 1-3/8 inch

1шт.

4

K950865

CLIP

- retaining

2шт.

5

K200548

BRACKET

- lever

1шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

K916855

STUD

PIN - pivot, 5/8 inch UNC

1шт.

9

K621377

BUSHING

- lever pivot

1шт.

10

K19475

WASHER

- 5/8 inch

1шт.

11

K19532

PIN

- cotter, 1/8 x 1 inch

1шт.

12

K916856

BUTTON

- thrust

1шт.

13

K903228

LEVER

- actuating

1шт.

14

K11797

RING, SNAP

RING - snap, 1/2 inch (13 mm) external

1шт.

15

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

16

K903494

BUSHING

- rear axle housing

1шт.

17

K34454

RING, SNAP

RING - snap, 7/8 inch (22 mm) external

1шт.

18

K903197

SHAFT

AND ARM - sleeve

1шт.

19

K903226

SELECTOR

FORK - selector

1шт.

20

K626674

WASHER

- special, 1/2 inch (13 mm) special

1шт.

21

K11302

RING, SNAP

RING - snap, 1/2 inch (13 mm) external

1шт.

22

K622309

KEY

- 3/16 x 5/32 x 3/4 inch

1шт.

23

K903191

SLEEVE

- locking

1шт.

24

K625119

SPRING

- return

1шт.

Выбрано товаров: 24
