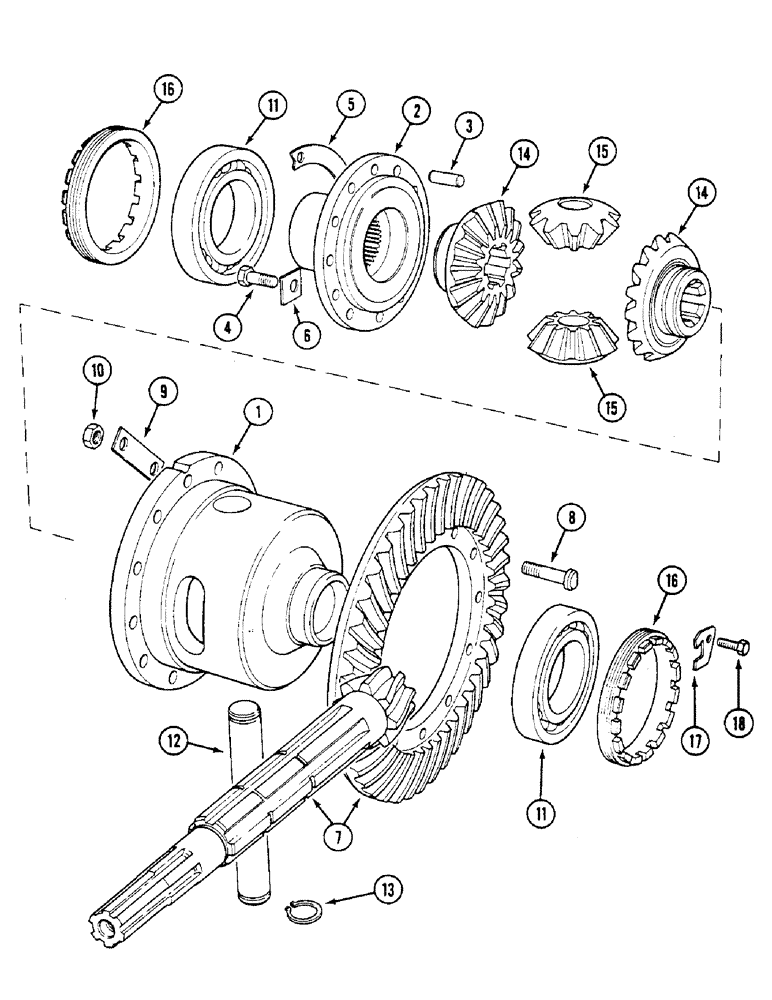

Запчасти Case IH 1294 (6-156) - DIFFERENTIAL (06) - POWER TRAIN

1

K942316

DIFFERENTIAL

CAGE - differential

1шт.

2

K903184

FLANGE

PLATE - end, cage

1шт.

3

K621801

PIN

DOWEL - 3/8 x 1-1/8 inch

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

- tab, end plate

3шт.

6

K626372

WASHER

- tab, end plate

3шт.

7

K964879

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (Two-wheel drive)

1шт.

7

K965090

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (MFD)

1шт.

8

K905664

WHEEL BOLT

- special 7/16 inch UNC

12шт.

9

K30236

WASHER

- tab, cage bolt

6шт.

10

280717

NUT,7/16"-14, G5

12шт.

11

K19010

BALL BEARING

BEARING - ball

2шт.

12

K942318

PIN

- 1-1/8 inch

1шт.

13

103-11112

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

14

K30234

CONE PINION

WHEEL - bevel

2шт.

15

K942317

DIFFERENTIAL

PINION - bevel

2шт.

16

K15007

RING, LOCKING

ADJUSTER - bearing

2шт.

17

K626420

WASHER

PLATE - lock

2шт.

18

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.
