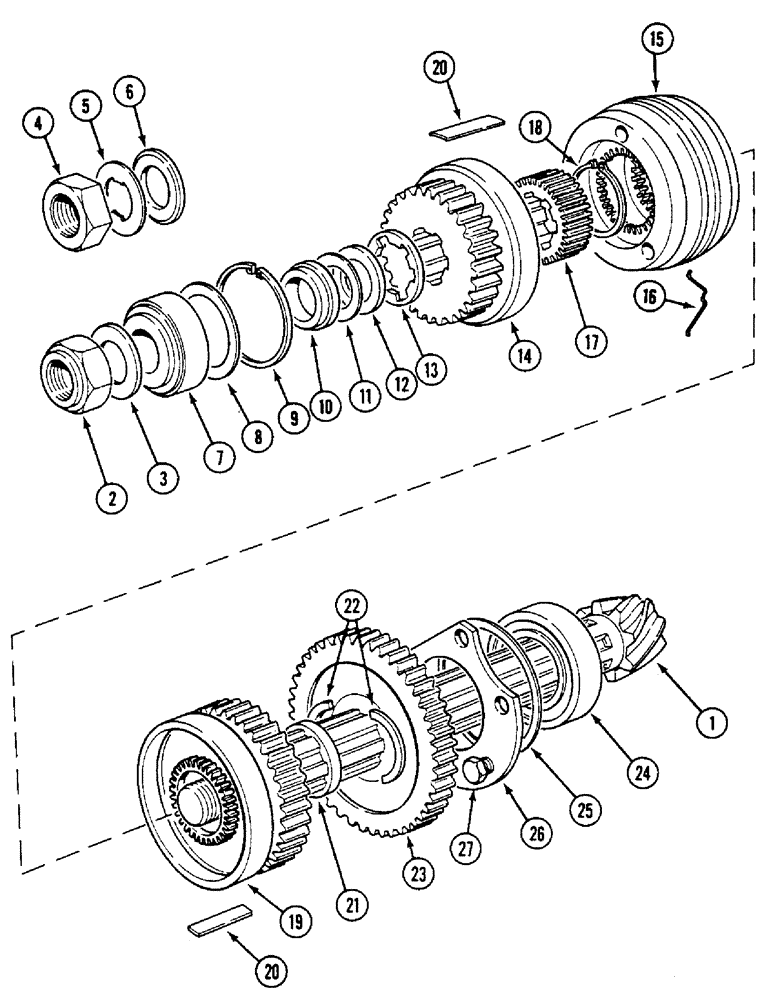

Запчасти Case IH 1294 (6-154) - BEVEL PINION SHAFT (06) - POWER TRAIN

1

K964879

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (Two-wheel drive)

1шт.

1

K965090

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (MFD)

1шт.

2

K623317

LOCK NUT

- 1-1/8 inch BSF

1шт.

3

K14687

WASHER

- 1-1/8 inch (29 mm) (Two-wheel drive)

1шт.

4

K921817

NUT

- 1-3/8 inch

1шт.

5

K626438

WASHER

- tab

1шт.

6

K921819

WASHER

- 1-3/8 inch (35 mm) special (MFD)

1шт.

7

K620061

BEARING, ROLLER

BEARING - roller

1шт.

8

K627253

BUSHING

SPACER - bearing

1шт.

9

K17023

CIRCLIP

RING - snap, 3 inch

1шт.

10

K917844

BUSHING

SPACER - bearing

1шт.

11

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch (0.05 mm)

1шт.

11

K917846

SHIM

- 0.005 inch (0.13 mm)

1шт.

11

K917847

SHIM

- 0.010 inch (0.25 mm)

1шт.

11

K917848

SHIM

- 0.030 inch (0.76 mm)

1шт.

12

K940969

BUSHING

SPACER - bearing

1шт.

13

K926249

WASHER

- special

1шт.

14

K942671

GEAR

- high, 28 teeth

1шт.

15

K207796

GEAR

AND CONES - sliding

1шт.

16

K926266

SPRING

- sliding gear

1шт.

17

K942385

GEAR

- dog clutch

2шт.

18

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

19

K942672

GEAR

- medium, 35 teeth

1шт.

20

K928621

WEAR PAD

PAD - bearing

12шт.

21

K948472

WASHER

- special

1шт.

22

K948473

RING

SPLIT RING - half

2шт.

23

K948512

GEAR

- low, 47 teeth

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - lower

1шт.

25

K942872

SHIM

- 0.002 inch (0.05 mm)

1шт.

25

K942873

SHIM

- 0.003 inch (0.13 mm)

1шт.

25

K942874

SHIM

- 0.010 inch (0.25 mm)

1шт.

25

K942875

SHIM

- 0.030 inch (0.76 mm)

1шт.

26

K943068

COVER

PLATE - cover, rear bearing

1шт.

27

K603043

SCREW

BOLT - 7/16 UNC x 1 inch

5шт.
