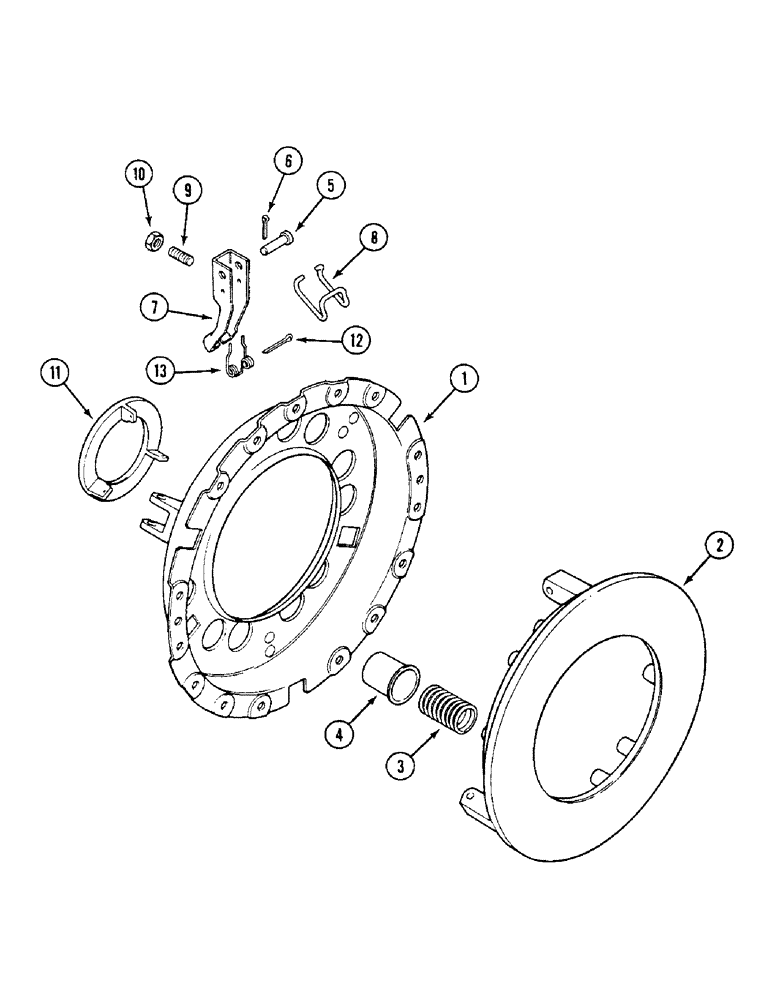

Запчасти Case IH 1294 (6-134) - BORG AND BECK INDEPENDENT CLUTCH - COVER ASSEMBLY, PRIOR TO P.I.N. 11059299 (06) - POWER TRAIN

K963523

CLUTCH

COVER ASSEMBLY - clutch, Includes: Ref. 1 - 13

1шт.

1

K962809

COVER

- clutch

1шт.

2

K962805

PLATE

- pressure, transmission

1шт.

3

K625262

SPRING

- thrust, light green/black, standard duty

12шт.

3

K625211

SPRING

- thrust, buff/black, heavy duty

12шт.

4

K919848

CUP

- thrust spring

12шт.

5

K962806

PIN

- release lever

3шт.

6

K623606

PIN

- cotter, 3/32 x 1/2 inch

3шт.

7

K962948

LEVER

- release, transmission

3шт.

8

K923989

SPRING

- anti-rattle

3шт.

9

K962588

SCREW

- adjusting, 3/8 to 3/4 inch (set of three)

1шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

3шт.

11

K962803

PLATE

- release levers

1шт.

12

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

13

K962956

SPRING

CLIP - spring, Serial Range: levers-plate

3шт.
