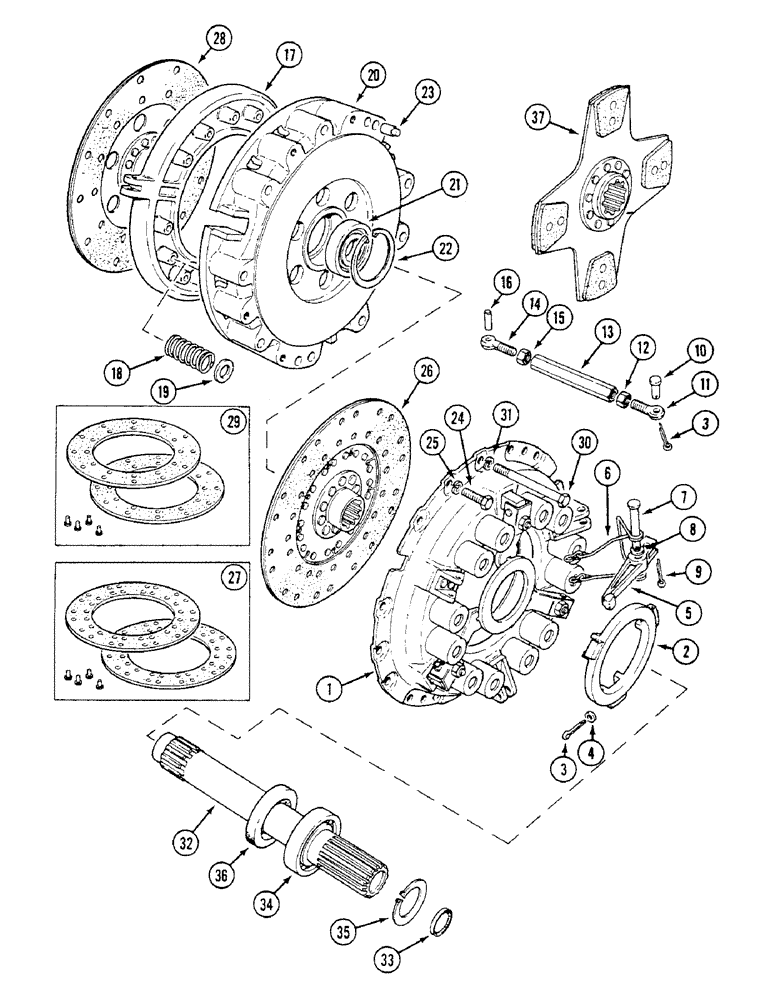

Запчасти Case IH 1294 (6-132) - INDEPENDENT CLUTCH ASSEMBLY - BORG AND BECK, PRIOR TO P.I.N. 11059299 (06) - POWER TRAIN

K957435

CLUTCH ASSEMBLY

- transmission, Borg and Beck, Includes: Ref. 2 - 27

1шт.

K963523

CLUTCH

COVER ASSEMBLY - clutch

1шт.

2

K919849

PLATE

- release levers

3шт.

3

32-1032

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

3шт.

4

K15522

WASHER

- split pin

6шт.

5

K923846

LEVER

- release, PTO

3шт.

6

K962587

SPRING

- anti-rattle

3шт.

7

K625944

PIN

- release lever

3шт.

8

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

3шт.

9

K623606

PIN

- cotter, 3/32 x 1/2 inch

6шт.

10

K625947

PIN

- release lever

3шт.

11

K923842

SCREW

BOLT - eye, 3/8 inch UNF left-hand thread

3шт.

12

K617282

SPECIAL NUT

- lock, 3/8 inch UNF left-hand thread

3шт.

13

K923844

TURNBUCKLE

- 3/8 inch UNF

3шт.

14

K923843

SCREW

BOLT - eye, 3/8 inch UNF

3шт.

15

K617588

SPECIAL NUT

- lock, 3/8 inch UNF

3шт.

16

K962599

PIN

- eye bolt

3шт.

17

K923845

PLATE

- pressure, PTO

3шт.

18

K625209

SPRING

- red thrust, PTO

12шт.

19

K626735

WASHER

- insulating, thrust springs

12шт.

20

K261002

HOUSING

- separator clutch

1шт.

21

1349394C1

BEARING, BALL,35mm ID x 72mm OD x 17mm W

BEARING - ball, separator housing

1шт.

22

P36245

CIRCLIP

SNAP RING - sun gear

1шт.

23

K621837

PIN

DOWEL - locating

2шт.

24

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

6шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

26

1539041C1

CLUTCH DISC

PLATE ASSEMBLEY - 11 inch driven, transmission, Includes: Ref. 27

1шт.

27

1539050C1

PACKAGE

FACINGS - 11 Inch, Raybestos

1шт.

28

A48244

PLATE

ASSEMBLY - driven, 11 inch PTO, Includes: Ref. 29

1шт.

28

A48244R

REMAN-CLUTCH PLATE

1294

1шт.

28

A48244C

CORE-CLUTCH PLATE

Return Number

1шт.

29

K962052

CLUTCH

FACINGS - 11 inch F30C and rivets

1шт.

30

K600220

BOLT

- 5/16 UNC x 3-3/4 inch

9шт.

31

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

9шт.

32

K205592

SHAFT

- drive, clutch

1шт.

33

K623634

SEAL

RING - sealing

1шт.

34

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball, clutch driveshaft

1шт.

35

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

36

K623430

OIL SEAL

- oil, 45 x 65 x 8 mm

1шт.

37

1997841C1

CLUTCH DISC

PLATE - 11 inch, transmission, metallic facing

1шт.
