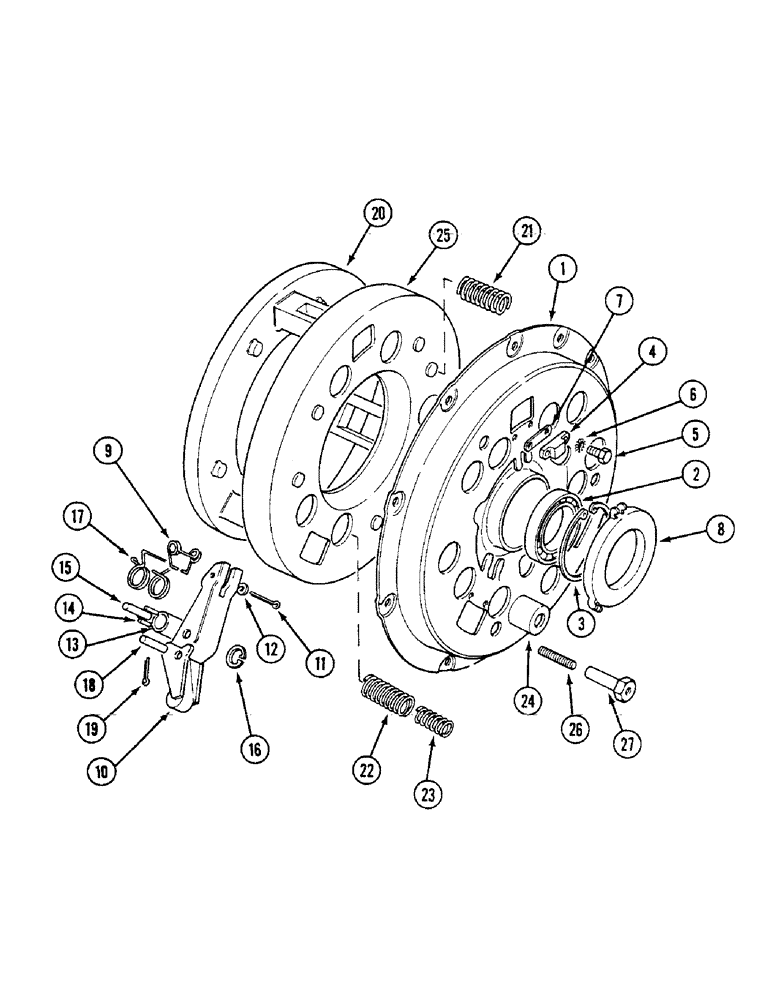

Запчасти Case IH 1294 (6-128) - COVER ASSEMBLY - CONTINUOUS CLUTCH (06) - POWER TRAIN

K957252

CLUTCH ASSEMBLY

COVER ASSEMBLY - transmission clutch, Includes: Ref. 1 - 27

1шт.

1

K917999

COVER

- outer

1шт.

2

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball

1шт.

3

800-2175

SNAP RING,M75, Int

RING - snap, 3-1/8 inch (79 mm) ID

1шт.

4

K900257

PAD

- adjusting release lever

3шт.

5

62-32510

HEX SOC SCREW,1/4" - 28 x 3/8"

SCREW - hex socket head, 1/4 NF x 5/8 inch

6шт.

6

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

6шт.

7

K900258

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

7

K901723

SHIM,.003" Thk

(0.13 mm) .003" Thk

1шт.

7

K904138

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

7

K904138

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

8

K900268

PLATE

- release levers

1шт.

9

K900267

RETAINER

- lever plate

3шт.

10

K900275

LEVER

- release, clutch

3шт.

11

432-624

COTTER PIN,3/32" x 1 1/2"

3/32" x 1 1/2"

3шт.

12

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

6шт.

13

K900264

ROLLER

- release lever

3шт.

14

K900273

NEEDLE

ROLLER - needle, release lever

57шт.

15

K900265

PIN

- release lever roller

3шт.

16

K900274

RING, SNAP

RING - snap, lever pin

6шт.

17

K961128

SPRING

- anti-rattle

3шт.

18

K900266

PIN

- release lever pivot

3шт.

19

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

20

K961046

PLATE, THRUST

PLATE - pressure, clutch

3шт.

21

K902514

SPRING

- thrust, PTO

6шт.

22

K928922

SPRING

- thrust, transmission, outer

6шт.

23

K957253

SPRING

- thrust, transmission, inner

6шт.

23

K957253

SPRING

- thrust, transmission, inner

6шт.

24

K900256

SPRING

CUP - spring

12шт.

25

K918606

COVER

- inner

1шт.

26

K918607

SCREW

- adjusting, 5/16 inch UNF

3шт.

27

K918608

NUT

- lock, 5/16 inch UNF

3шт.
