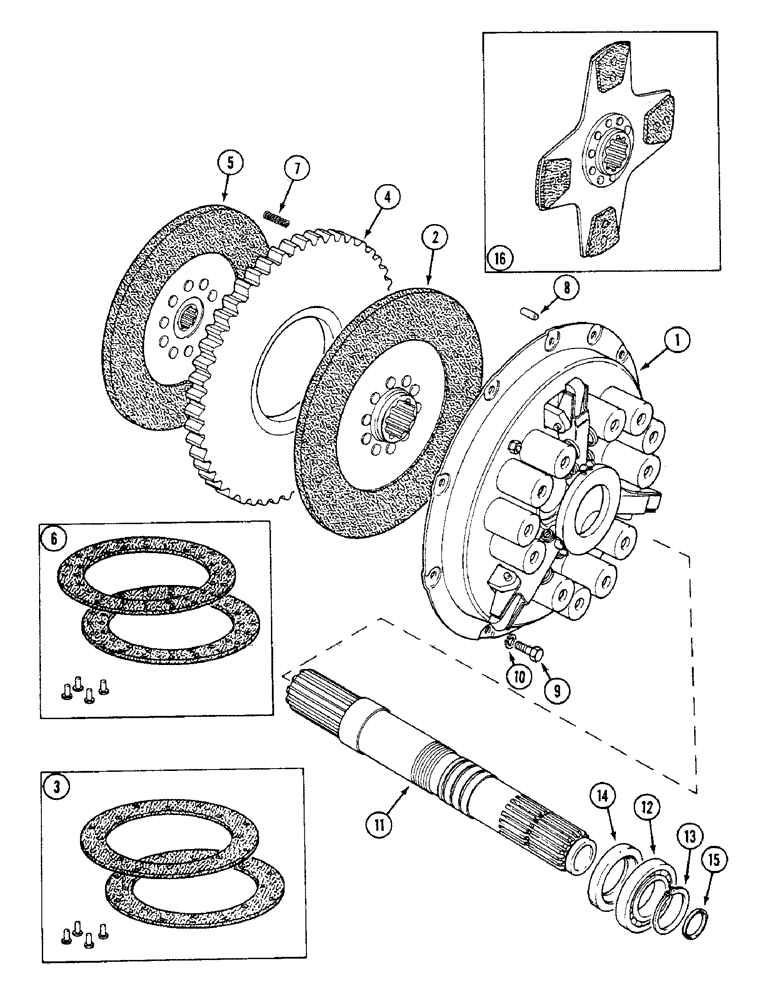

Запчасти Case IH 1294 (6-126) - CONTINUOUS CLUTCH ASSEMBLY (06) - POWER TRAIN

1

K957252

CLUTCH ASSEMBLY

COVER ASSEMBLY - transmission clutch

1шт.

2

1539024C1

CLUTCH DISC,280mm OD

PLATE ASSEMBLY - driven, transmission 11 inch, Includes: Ref. 3

1шт.

2

1539024C1R

REMAN-CLUTCH DISC

1294 1/1/83 - 12/31/85

1шт.

2

1539024C1C

CORE-CLUTCH DISC

Return Number

1шт.

3

1539050C1

PACKAGE

FACINGS - 11 inch F30C and rivets -

1шт.

4

K906446

PLATE, THRUST

PLATE - separator, clutch

1шт.

5

A48244

PLATE

ASSEMBLY - driven, 11 inch PTO, Includes: Ref. 6

1шт.

5

A48244R

REMAN-CLUTCH PLATE

1294

1шт.

5

A48244C

CORE-CLUTCH PLATE

Return Number

1шт.

6

K962052

CLUTCH

FACINGS - 11 inch F30C and rivets

1шт.

7

K13226

SPRING

- flywheel

3шт.

8

K621838

PIN

DOWEL - 5/16 x 7/16 x 1-1/8 inch

2шт.

9

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

9шт.

10

492-11038

LOCK WASHER,3/8"

9шт.

11

K205593

SHAFT

- drive, clutch

1шт.

12

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball, clutch driveshaft

1шт.

13

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

14

K623430

OIL SEAL

- oil, 45 x 65 x 8 mm

1шт.

15

K623634

SEAL

RING - sealing

1шт.

16

1997841C1

CLUTCH DISC

PLATE - clutch 11 inch metallic

1шт.
