Запчасти Case IH 1294 (5-124) - FRONT WHEELS - MFD (05) - STEERING

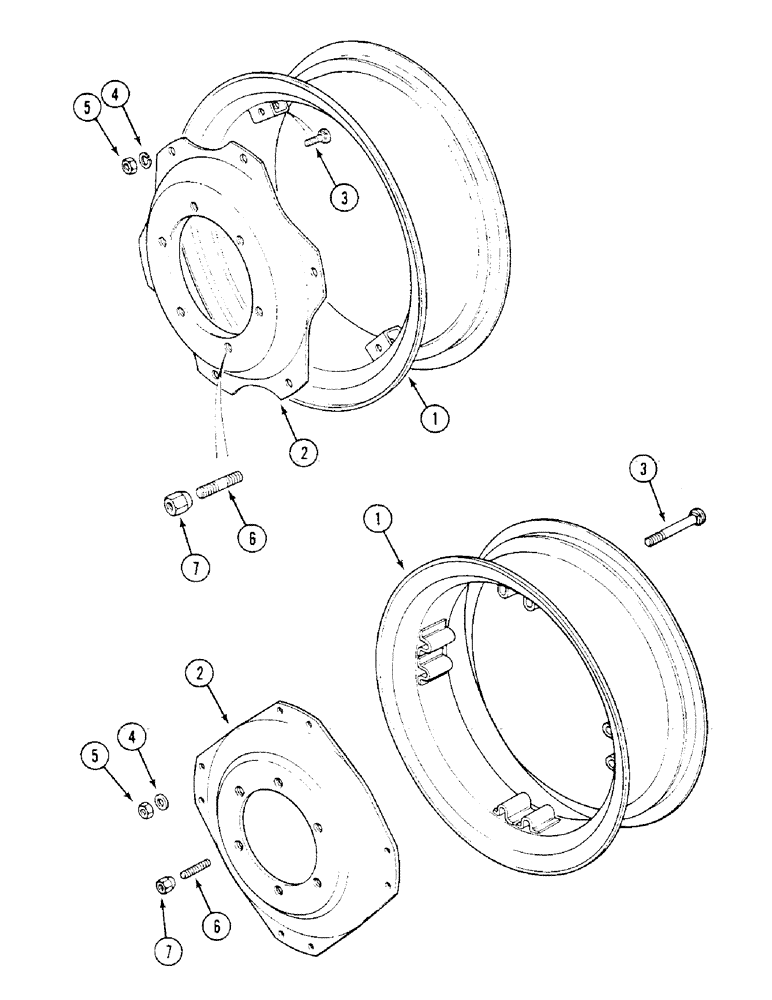

Схема запчастей Case IH 1294 - (5-124) - FRONT WHEELS - MFD (05) - STEERING
2
1
6
7
4
3
5
1
2
4
3
6
5
7

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, for 11.2/10-24 or 12.4/11-24 tires, Includes: Ref. 1 - 5

2шт.

1

K307637

RIM

- wheel, W10 x 24

1шт.

2

K307640

DISC, WHEEL

WHEEL - center, steel

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

6шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

6шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

6шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, for 11.2/10-24 or 12.4/11-24 tires, (Option), Includes: Ref. 1 - 5

2шт.

1

K330081

RIM

- wheel, W10 x 24

1шт.

2

K330193

WHEEL

- center, steel

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

8шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

8шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

6

K205125

STUD

- M14 x 52 mm, hub

12шт.

7

K965326

WHEEL NUT

- wheel, M14

12шт.

Выбрано товаров: 14
