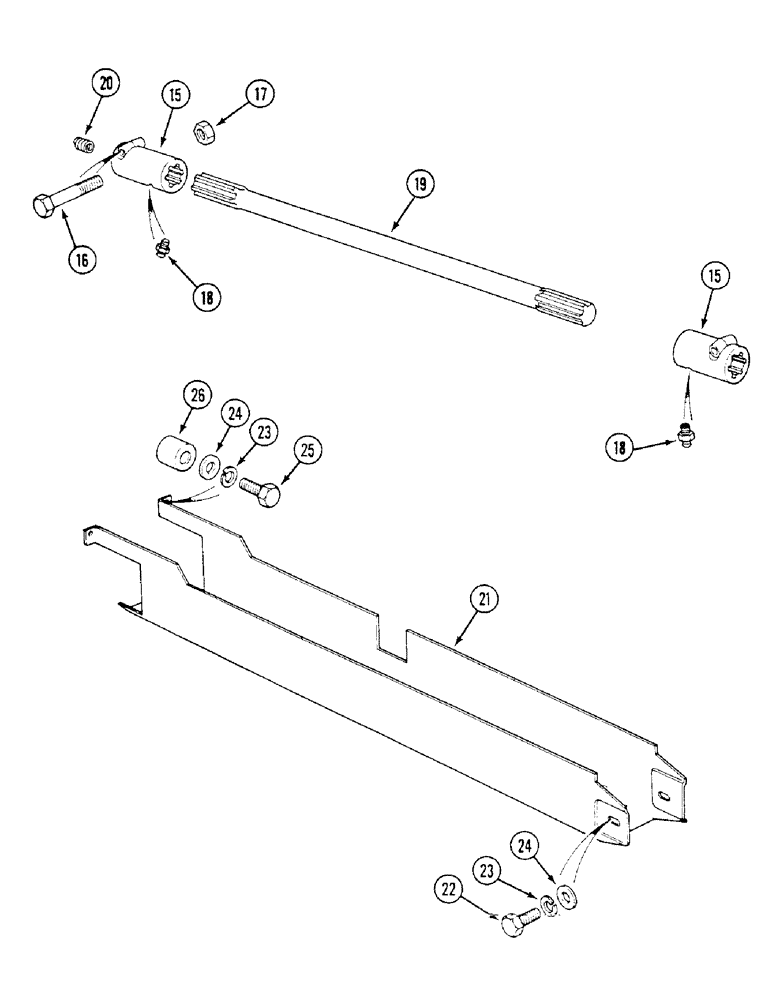

Запчасти Case IH 1294 (5-120) - FRONT DRIVE - MFD (05) - STEERING

15

K260761

SPLINED COUPLING

SLEEVE - coupling (Carraro 102033/1)

2шт.

16

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 - 1.25 x 60 mm

2шт.

17

K965414

NUT

- M10 (Carraro 22411)

2шт.

18

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

19

K260759

DRIVE SHAFT

SHAFT - axle drive (Carraro 111246)

1шт.

20

K965410

SPRING

- tension (Carraro 83787)

2шт.

21

K205187

GUARD

- shaft (Carraro 117953)

1шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

24

K965421

WASHER

- 8 mm (Carraro 23109)

4шт.

25

K261062

PUMP

BOLT - M8 (Carraro 20790)

2шт.

26

K205188

BUSHING

SPACER - guard (Carraro 87166)

2шт.
