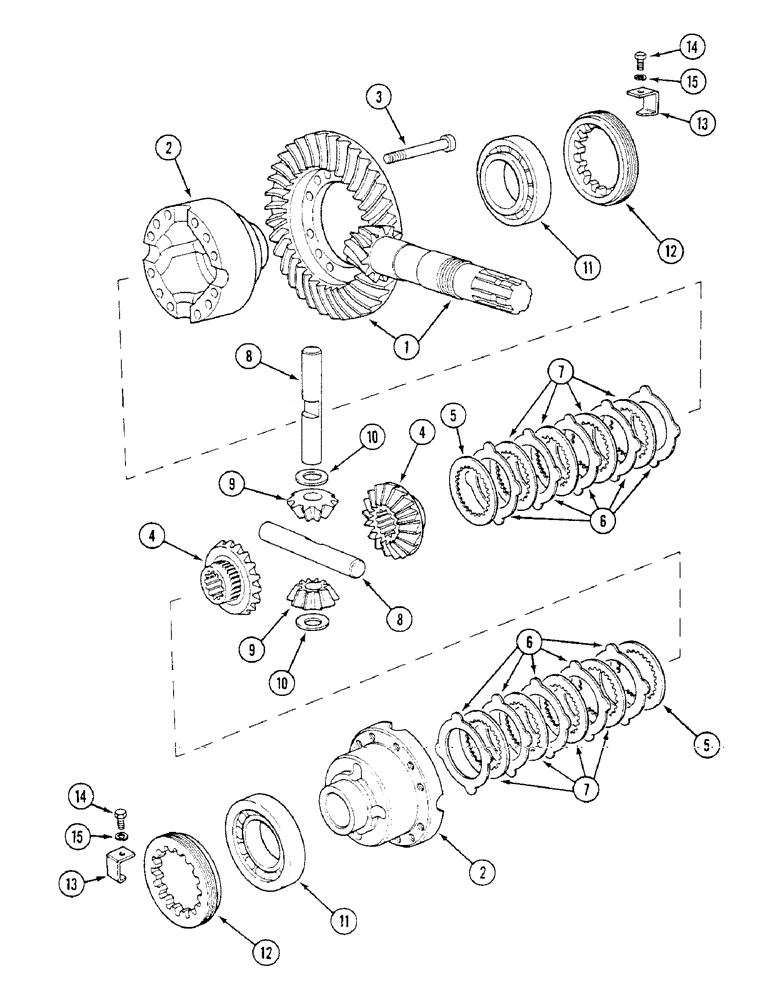

Запчасти Case IH 1294 (5-118) - FRONT AXLE DIFFERENTIAL - MFD (05) - STEERING

1

K261848

GEAR

AND PINION - spiral ratio 8/31 (Carraro 65439)

1шт.

2

K261858

HOUSING

- differential (Carraro 110639), Includes: Ref. 3

1шт.

3

K261859

BOLT

- M10 x 70 mm (Carraro 22859)

12шт.

4

K261864

WHEEL

- bevel

2шт.

5

1966154C1

PLATE

- backing (Carraro 110642)

1шт.

5

1966154C1

PLATE

- backing

1шт.

6

1966155C1

PLATE

- drive (Carraro 110643)

5шт.

7

1966156C1

WASHER

PLATE - driven (Carraro 110644)

4шт.

8

K261865

SPINDLE

PIN - differential (Carraro 107772)

2шт.

9

1966152C1

SUN GEAR

GEAR - (Carraro 107769)

4шт.

10

1966560C1

THRUST WASHER

WASHER - thrust (Carraro 107771)

4шт.

11

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED (Carraro 27309)

2шт.

12

1966559C1

NUT

RING, LOCKING (Carraro 107400)

2шт.

13

1966153C1

LOCKING PLATE

BRACKET - lock (Carraro 107778)

2шт.

14

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.
