Запчасти Case IH 1294 (5-116) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS (05) - STEERING

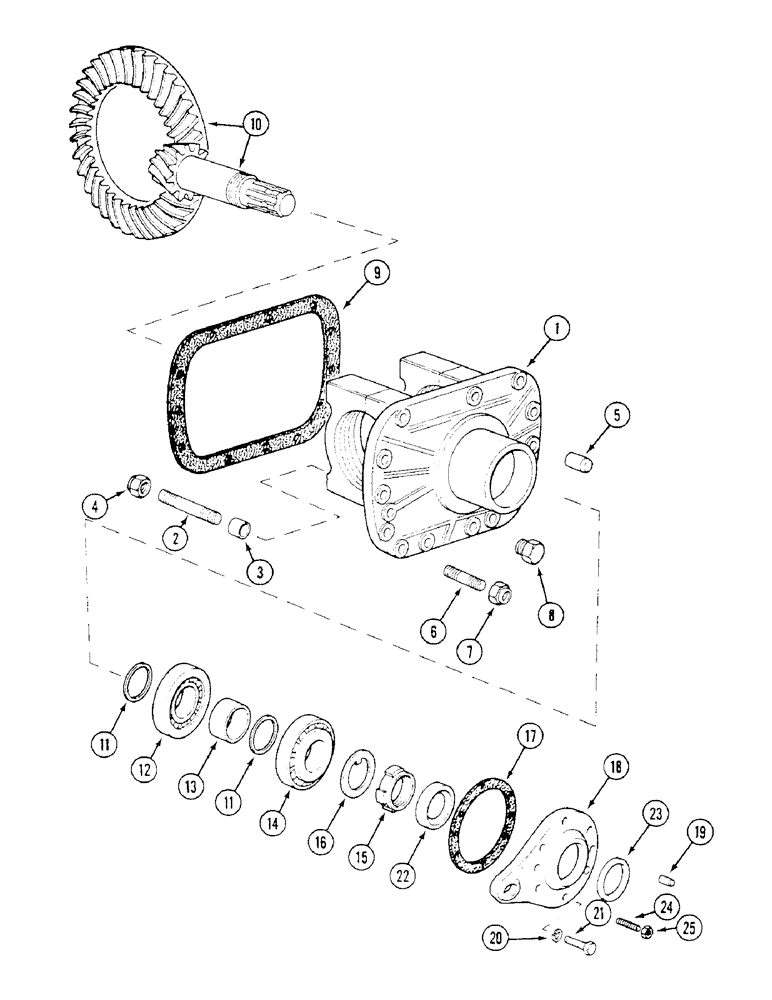

Схема запчастей Case IH 1294 - (5-116) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS (05) - STEERING
2
24
10
7
19
4
23
21
13
25
17
9
22
3
5
20
15
14
18
6
12
16
8
1
11
11

Артикул

Название

Примечание

Количество

1

K261835

CARRIER

HOUSING - differential (Carraro 107817)

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering

4шт.

4

905873R1

NUT,M14 x 1.5, G8

NUT - self-locking, M14

4шт.

5

1966138C1

DOWEL

PIN - dowel

1шт.

6

1966562C1

STUD

- housing (Carraro 107795)

9шт.

7

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

9шт.

8

110782A1

PLUG, DRAIN

PLUG - 24 mm

2шт.

9

K261834

GASKET

- differential housing (Carraro 107851)

1шт.

10

K261848

GEAR

AND PINION - spiral ratio 8/31 (Carraro 65439)

1шт.

11

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 2.55 mm

1шт.

11

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 2.65 mm

1шт.

11

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 2.75 mm

1шт.

11

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 2.85 mm

1шт.

11

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 2.95 mm

1шт.

11

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 3.05 mm

1шт.

11

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

11

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

11

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

11

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

11

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 3.35 mm

1шт.

11

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

12

K261849

BEARING

- pinion (Carraro 27373)

1шт.

13

K261850

BUSHING

SPACER - bearing (Carraro 107794)

1шт.

14

K261851

ROLLER

BEARING - pinion (Carraro 27306)

1шт.

15

K261065

LOCK WASHER

- special

1шт.

16

K261065

LOCK WASHER

- special

1шт.

17

K261854

GASKET

- flang (Carraro 107875)

1шт.

18

K261855

FLANGE

- bearing (Carraro 115178)

1шт.

19

K260163

PIN

DOWEL - locating (Carraro 79582)

1шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

21

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

6шт.

22

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil (Carraro 116722)

1шт.

23

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil (Carraro 116722)

1шт.

24

K262031

STUD

- M8 (Carraro 11321)

6шт.

25

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10.9

6шт.

Выбрано товаров: 43
