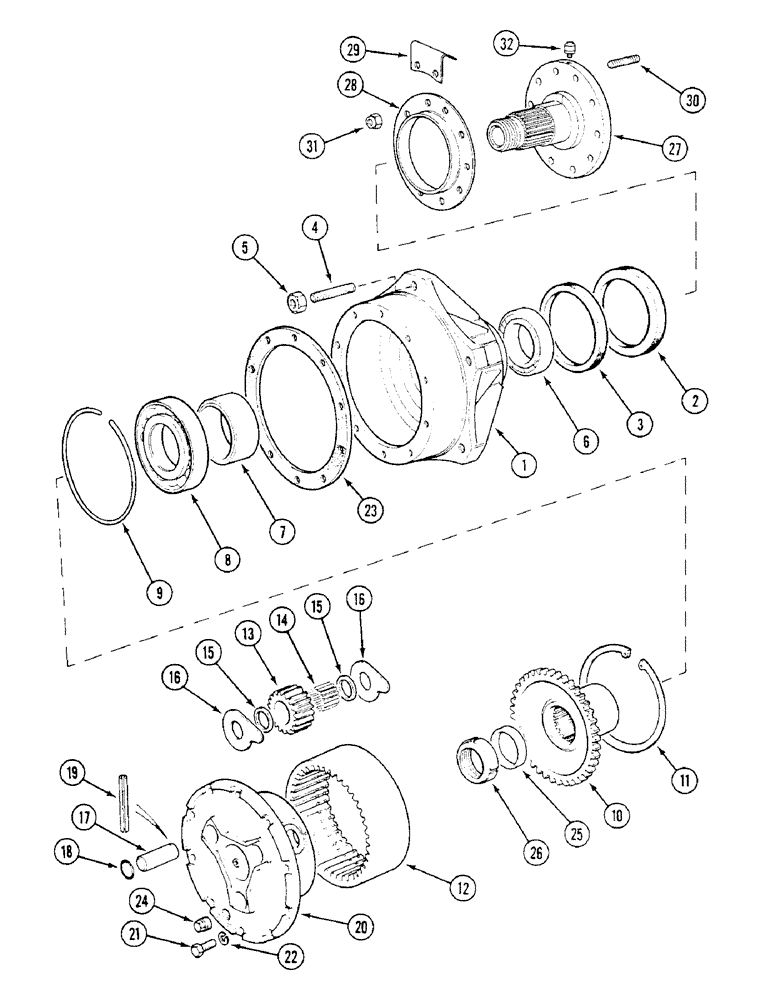

Запчасти Case IH 1294 (5-114) - FRONT HUBS AND PLANETARIES - MFD (05) - STEERING

1

K261877

HUB

- front (Carraro 107220) (No wear sleeve available)

2шт.

2

K262144

OIL SEAL

(Carraro 107923) (Prior to axle DB12/689)

2шт.

3

K261902

OIL SEAL

- oil (Carraro 25359) (Prior to axle DB12/689)

2шт.

3

K262144

OIL SEAL

- oil (Carraro 1118614) (Axle DB12/689 and after)

2шт.

4

K205125

STUD

- M14 x 52 mm, hub (Carraro 104781)

12шт.

5

K965326

WHEEL NUT

- wheel, M14 (Carraro 104782)

12шт.

6

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING - clutch housing (Carraro 25813)

2шт.

7

K261878

BUSHING

SPACER - bearings (Carraro 108011)

2шт.

8

ST273A

BALL BEARING,70 mm ID x 125 mm OD x 24 mm

BEARING - ball, outer (Carraro 25816)

2шт.

9

K261885

SPRING

RING - snap (Carraro 24947)

2шт.

10

K261881

CARRIER

GEAR - support (Carraro 107746)

2шт.

11

K261882

CIRCLIP

RING - snap (Carraro 107905)

2шт.

12

K261901

GEAR

- internal (Carraro 107607)

2шт.

13

K261888

GEAR

- planetary (Carraro 107676)

6шт.

14

K261889

NEEDLE

BEARING - roller, needle, planetary gear (Carraro 107903)

144шт.

15

K261893

WASHER

SPACER - bearing (Carraro 107850)

12шт.

16

K261887

WASHER

- thrust (Carraro 107906)

12шт.

17

K261890

SHAFT

- planetary gear (Carraro 113025)

6шт.

18

K261894

O-RING

- planetary shift (Carraro 28176)

6шт.

19

838-5436

LOCK PIN,M4 x 36, Slotted

PIN - roll, 4 x 36 mm (Carraro 24367)

6шт.

20

K261886

COVER

- hub (Carraro 113660) (Casting # 18049)

2шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd (Carraro 20852) Hex, M10 x 30, 8.8

20шт.

22

892-11010

LOCK WASHER,M10

(Carraro 22859) M10

20шт.

23

K261880

GASKET

- cover (Carraro 107909)

2шт.

24

110782A1

PLUG, DRAIN

PLUG - 24 mm (Carraro 92270)

2шт.

If dlr is looking for 22mm, magnetic plug for ref #24 the part # is A156873

1шт.

25

K261883

BUSHING

SPACER - stub axle (Carraro 107816)

2шт.

26

K261884

NUT

- stub axle (Carraro 23322)

2шт.

27

K261824

SHAFT

AXLE - stub (Carraro 113659)

2шт.

28

1967547C1

WASHER

SHEILD - dust (Carraro 107919)

2шт.

29

K261900

BAFFLE

- dust (Carraro 107917)

2шт.

30

1966562C1

STUD

- housing (Carraro 107904)

20шт.

31

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

20шт.

32

A48146

BREATHER

- hub,(Prior to axle DB12/689)

2шт.
