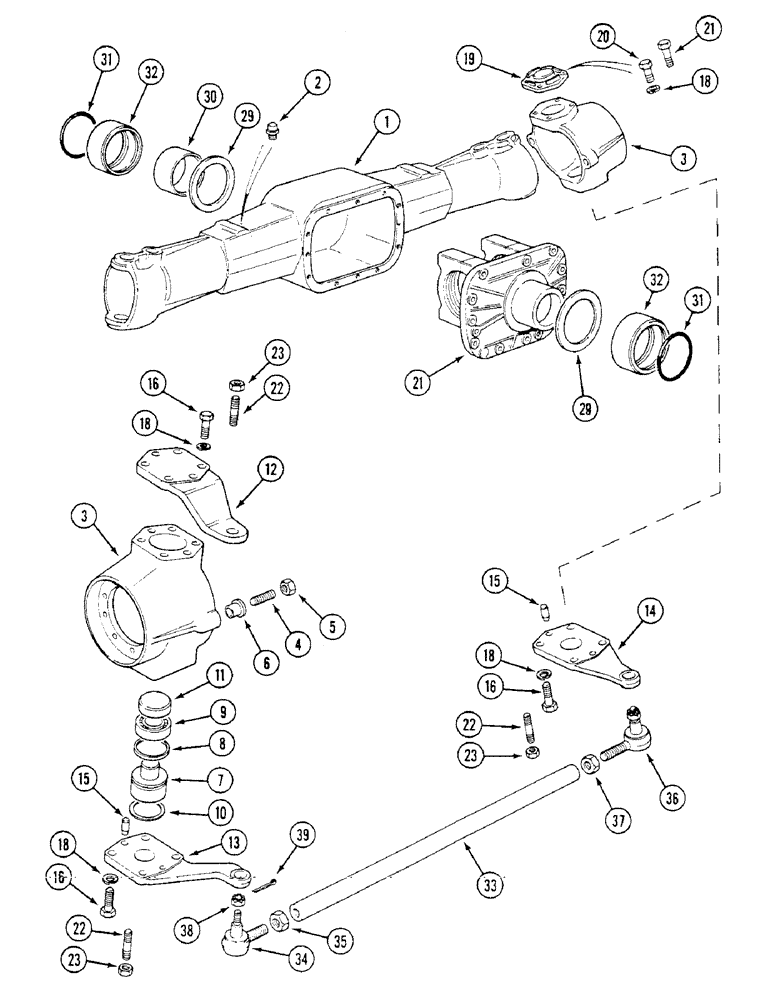

Запчасти Case IH 1294 (5-112) - FRONT AXLE HOUSING - MFD (05) - STEERING

1

K261819

SHAFT

HOUSING - front axle (Carraro 110769)

1шт.

2

1966149C1

BREATHER

- axle housing (Carraro 104988)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - stub axle, Serial Range: (Prior-P.I.N.11059390)

2шт.

Item 3-a , nss was k261820 housng subs to k262136 plus other parts. refer to s/b a56-84 djo 4/13/98

1шт.

3

K262136

HOUSING

- stub axle (Carraro 118551) (P.I.N. 11059390 and after)

2шт.

4

N7527

ADJUSTMENT SCREW

STUD - steering stop (Carraro 21501)

2шт.

5

K965369

JAM NUT

- lock, M12

2шт.

6

K261837

BUSHING

- steering stop (Carraro 108095)

2шт.

7

K261825

PIN

- bearing (Carraro 107808), Serial Range: (Prior-P.I.N.11059390)

4шт.

7

K262137

LARGE PIN

PIN - bearing (Carraro 118629) (P.I.N. 11059390 and after)

4шт.

8

K261826

SEAL,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

- bearing (Carraro 28109)

4шт.

9

K261827

BEARING

roller, tapered (Carraro 27421)

4шт.

10

K261828

SHIM,0.1mm Thk

(Carraro 86717) 0.1mm Thk

1шт.

10

K261829

WASHER,0.3mm Thk

SHIM - 0.3 mm (Carrarr 86718)

1шт.

10

K261830

WASHER

SHIM - 0.5 mm (Carraro 86719)

1шт.

11

K261838

PLUG

- core, axle housing (Carraro 107809)

4шт.

12

K261845

LEVER

ARM - steering, left-hand, upper (Carraro 115775)

1шт.

13

K261832

COVER

ARM - steering, left-hand, lower (Carraro 112868)

1шт.

14

K261831

COVER

ARM - steering, right-hand, lower (Carraro 112867)

1шт.

15

A48079

PIN

DOWEL - steering arm (Carraro 70783) (Prior to P.I.N. 11059390)

6шт.

15

K262140

PIN, ROLL

DOWEL - steering arm (Carraro 24473) (P.I.N. 11059390 and after)

6шт.

16

K261833

BOLT

- M12 x 40 mm (Carraro 20923), Serial Range: (Prior-P.I.N.11059390)

12шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, (Carraro 22861) M12

12шт.

19

K261896

COVER

- bearing pin (Carraro 107415)

1шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 x 25 mm (Carraro 20919) (Prior to P.I.N.11059390)

4шт.

21

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

(Carraro 20920) (P.I.N. 11059390 and after) Hex, M12 x 30, 8.8

4шт.

22

K262139

STUD

- M12 x 58 mm (Carraro 11589) (P.I.N. 11059390 and after)

12шт.

23

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

12шт.

24

K261835

CARRIER

HOUSING - differential (Carraro 107817), See Figure 5-116

1шт.

29

K965264

WASHER

- thrust (Carraro 83352)

2шт.

30

K965266

BUSHING

SLEEVE - bushing (Carraro 101565/1)

1шт.

31

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing (Carraro 28103)

4шт.

32

K965265

BUSHING

- steel (Carraro 101575/1)

2шт.

33

K261840

ROD

- track (Carraro 107910)

1шт.

34

K261841

BALL JOINT

ROD END - track, left-hand (Carraro 107634)

1шт.

35

1966563C1

NUT

- lock, M20 left-hand (Carraro 81292

1шт.

36

K261842

BALL JOINT

ROD END - track, right-hand (Carraro 107633)

1шт.

37

934120R1

THIN NUT,Thin, M20 x 1.5

- lock, M20, RH (Carraro 22186)

1шт.

38

1966626C1

NUT

- rod end (Carraro 41431)

2шт.

39

1966626C1

NUT

PIN - cotter (Carraro 41431)

2шт.
