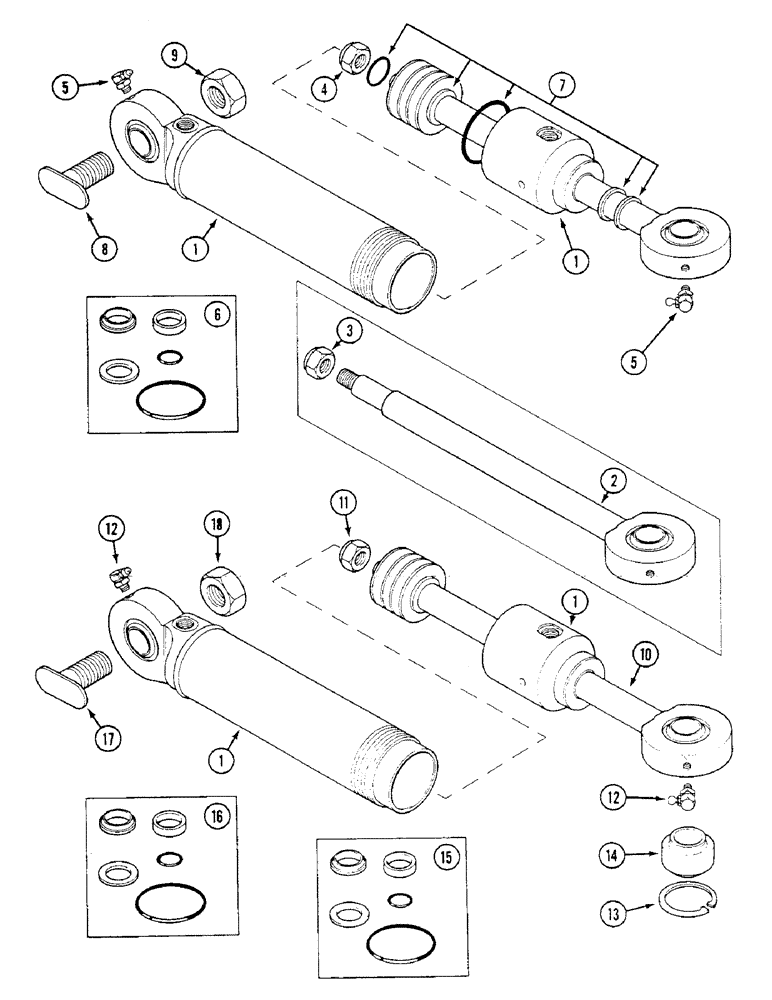

Запчасти Case IH 1294 (5-104) - STEERING CYLINDER, MFD TRACTORS (05) - STEERING

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (Carraro 104773) (Laverda cylinder), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, 60 mm OD

1шт.

2

K260529

PISTON

ROD - piston, 12 (Carraro 43441) Order K262249

1шт.

3

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

1шт.

4

102894A1

LOCK NUT

NUT - hex

1шт.

5

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

3шт.

6

K262249

PACKAGE

KIT - seals, piston and piston rod, M16 (Carraro 43410)

1шт.

7

K262249

PACKAGE

KIT - seals, piston and piston rod, M16 (Carraro 43410)

1шт.

8

K260527

PIN

BOLT - M22 x 70, special

2шт.

9

K260528

LOCK NUT

- lock, M22 (Carraro 22443)

2шт.

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (Carraro 104773) (Giuliani cylinder), Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, 60 mm OD

1шт.

2

K261654

ROD

- piston, M14 (Use K262248 and K262196) (Carraro 43493)

1шт.

3

K261655

NUT

- piston rod, M14 (Carraro 22428)

3шт.

10

K262196

PISTON ROD

ROD - piston, M16

1шт.

11

102894A1

LOCK NUT

NUT - hex

1шт.

12

905251R1

LUBE NIPPLE,90 Degree, M6 x 1

FITTING - 90 degree lube

3шт.

13

K262195

RING, LOCKING

RING - snap

2шт.

14

1966059C1

BEARING CAP

BEARING - spherical (Carraro 43421)

2шт.

15

K262248

KIT

- seals and piston, M16 (Carraro 43416)

1шт.

16

K261653

SEAL

KIT - seals and piston, M14 (Carraro 43484) (Use K262248 and K262196)

1шт.

17

K260527

PIN

BOLT - M22 x 70, special

2шт.

18

K260528

LOCK NUT

- lock, M, 22 (Carraro 22443)

2шт.
