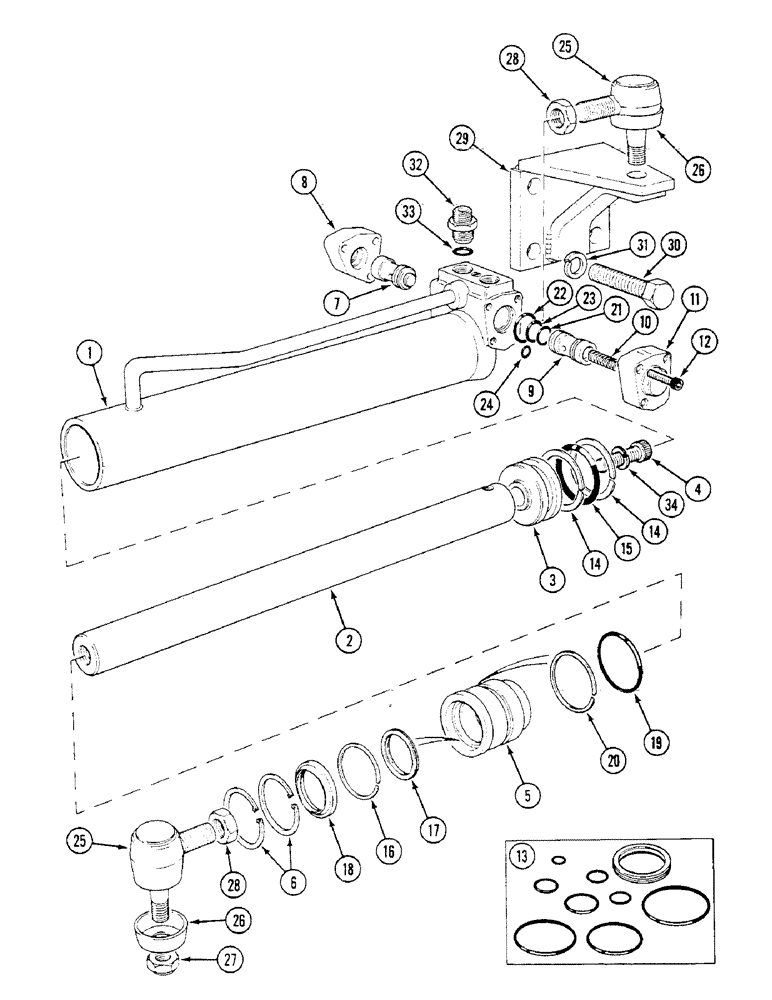

Запчасти Case IH 1294 (5-102) - STEERING CYLINDER, 2 WHEEL DRIVE TRACTOR (05) - STEERING

K207757

CYLINDER

ASSEMBLY - steering (Prior to P.I.N. 11490224), Includes: Ref. 1 - 28

1шт.

K210207

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (P.I.N. 11490224 and after), Includes: Ref. 1 - 28

1шт.

1

K200633

CYLINDER

HOUSING - cylinder

1шт.

2

K200632

ROD

- piston

1шт.

3

K200559

PISTON

- cylinder (Prior to P.I.N. 11490224)

1шт.

3

K210206

PISTON

- cylinder (P.I.N. 11490224 and after)

1шт.

4

K616823

HEX SOC SCREW,5/8" - 18 x 1 3/4"

BOLT - 5/8 UNC x 1-3/4 inch

1шт.

5

K207731

SLEEVE

- cylinder

1шт.

6

100-21225

SNAP RING,2.25", Int, #225

RING - snap, 2-3/8 inch (61 mm) internal

2шт.

7

K965851

VALVE

- non-return

1шт.

8

K200562

PLATE

- end

1шт.

9

K206379

SPOOL

VALVE AND SLEEVE - cylinder

1шт.

10

K625096

SPRING

- return

1шт.

11

K207667

PLATE

- end

1шт.

12

K616502

SCREW

BOLT - 1/4 UNF x 3/4 inch

6шт.

ref#13 is p/n k261926 cam-waw

1шт.

13

K261926

SEAL

1шт.

14

K628914

RING

- back-up, 1-7/8 inch (47 mm) ID

1шт.

15

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

16

K628914

RING

- back-up, 1-7/8 inch (47 mm) ID

1шт.

17

K628132

SEAL

RING - sealing, 40 mm ID

1шт.

18

K623712

WIPER SEAL

- scraper, 40 mm ID

1шт.

19

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

20

K628914

RING

- back-up, 1-7/8 inch (47 mm) ID

1шт.

21

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

2шт.

22

K16375

O-RING,0.943" ID x 0.106"

- 15/16 inch (24 mm) ID

2шт.

23

K628874

O-RING

- 11/16 inch (18 mm) ID

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

K207721

BALL JOINT

SOCKET AND ASSEMBLY - ball, Includes: Ref. 26 - 28

2шт.

26

K962155

CAP

SEAL - dirt

1шт.

27

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

28

K622500

LOCK NUT

- lock, 3/4 inch

1шт.

29

K200995

BRACKET

- steering cylinder

1шт.

30

K603310

SCREW

BOLT - 5/8 UNC x 2 inch

4шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

33

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

34

K626855

WASHER

- special, 5/8 inch (Use with K210206 to service K200559)

1шт.
