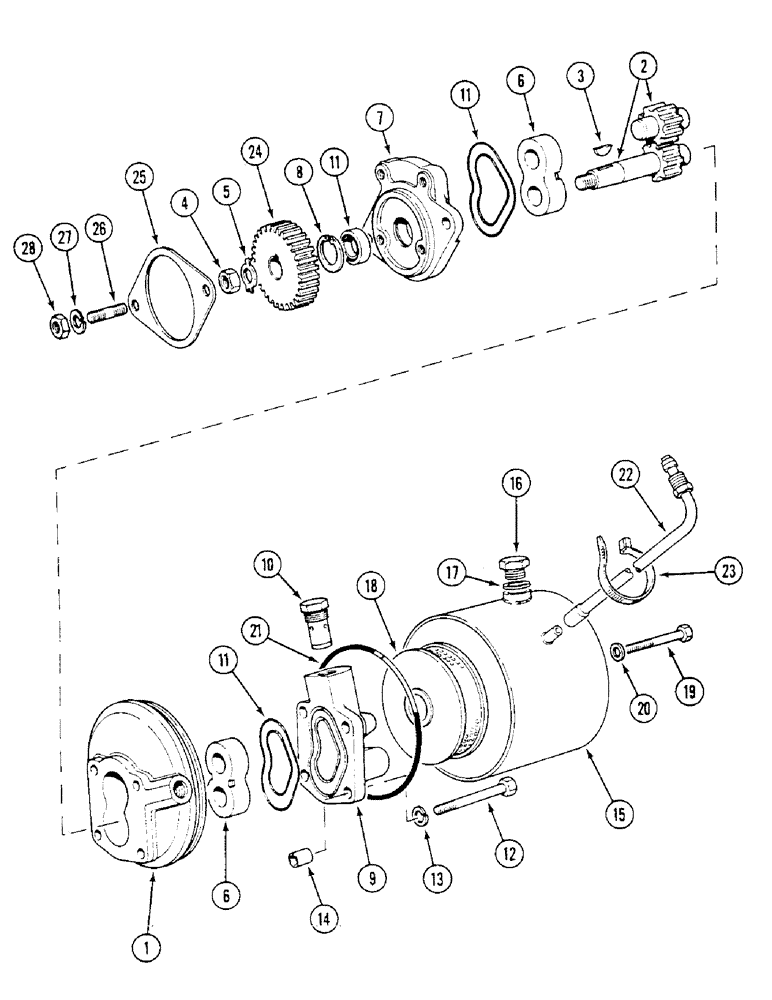

Запчасти Case IH 1294 (5-100) - STEERING PUMP AND RESERVOIR (05) - STEERING

1

K207625

PUMP

ASSEMBLY - steering, See Figure 5-100, Includes: Ref. 2 - 21

1шт.

2

K964934

GEAR

ROTOR - pump, set of

1шт.

3

K622386

KEY

- Woddruff

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

5

K626380

WASHER

- tab, gear, 7/16 inch

1шт.

6

K962189

BEARING

- pump

2шт.

7

K261641

FLANGE

- mounting

1шт.

8

K962097

RING, SNAP

RING - snap, 13/16 inch (21 mm)

1шт.

9

K261642

FLANGE

COVER - pump body

1шт.

10

K964899

VALVE

- relief, 1500 PSI (10 342 kPa)

1шт.

11

K964935

SEAL

KIT - seals and O-rings

1шт.

12

K965769

BOLT

- 3/8 UNC x 3-1/8 inch

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

K964920

PIN

DOWEL - ring

2шт.

15

K261063

RESERVOIR

ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG - 1/2 inch BSP

1шт.

17

K626769

WASHER

- sealing, plug

1шт.

18

K964954

FILTER

ELEMENT - filter

1шт.

19

K964930

BOLT

- 5/16 UNC x 2-1/4 inch

1шт.

20

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch (8 mm)

1шт.

21

K965217

RING

- sealing, Serial Range: reservoir-pump

1шт.

22

K204271

PIPE

TUBE - breather

1шт.

23

K621734

CABLE

CLIP - cable

1шт.

24

K945098

PINION

GEAR - 28 teeth

1шт.

25

K919729

GASKET,0.76mm Thk

- plate to carrier plate

1шт.

26

K608163

STUD

- 5/16 UNC x 1-1/4 inch

1шт.

26

K608161

STUD

- 5/16 UNC x 1 inch

1шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.
