Запчасти Case IH 1294 (5-096) - STEERING PUMP AND TUBES, TRACTORS WITH CAB (05) - STEERING

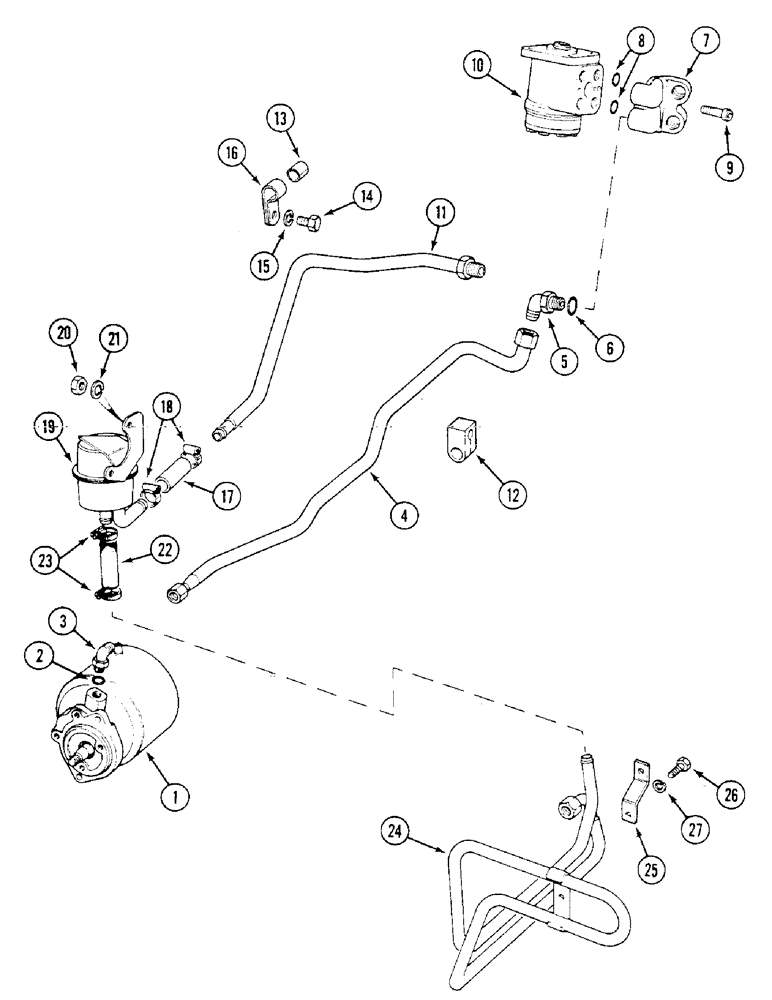

Схема запчастей Case IH 1294 - (5-096) - STEERING PUMP AND TUBES, TRACTORS WITH CAB (05) - STEERING
17
7
2
8
23
13
12
25
15
9
11
18
14
26
20
16
3
4
6
19
24
21
10
22
27
1
5

Артикул

Название

Примечание

Количество

1

K207625

PUMP

ASSEMBLY - steering, See Figure 5-100

1шт.

3

K622110

FITTING

ELBOW - 9/16 inch UNF

1шт.

4

K207403

PIPE

TUBE -, Serial Range: pump-valve

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

1шт.

7

K207388

BLOCK

- valve connections

1шт.

8

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

9

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

- M10 x 30 mm

2шт.

9

B92570

BOLT

- (For Danfoss Valves after 1988)

2шт.

10

REF

INSTRUCTION

VALVE - steering, See Figure 5-94

1шт.

11

K207402

PIPE

TUBE - valve return

1шт.

12

K207417

CLAMP

ING BLOCK - rubber

1шт.

13

K946125

TUBE

SLEEVE - nylon

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

K621704

CLIP

CLAMP - tube

1шт.

17

K627662

HOSE

- 3/4 x 2-1/2 inch (19 x 64 mm)

1шт.

18

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

19

K302508

TANK

RESERVOIR - steering fluid

1шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

K204350

HOSE

- return connector, 1/2 x 3 inch (13 x 76 mm)

1шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

24

K207437

PIPE

COIL - cooling

1шт.

25

K307666

BRACKET

- coil support

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 28
