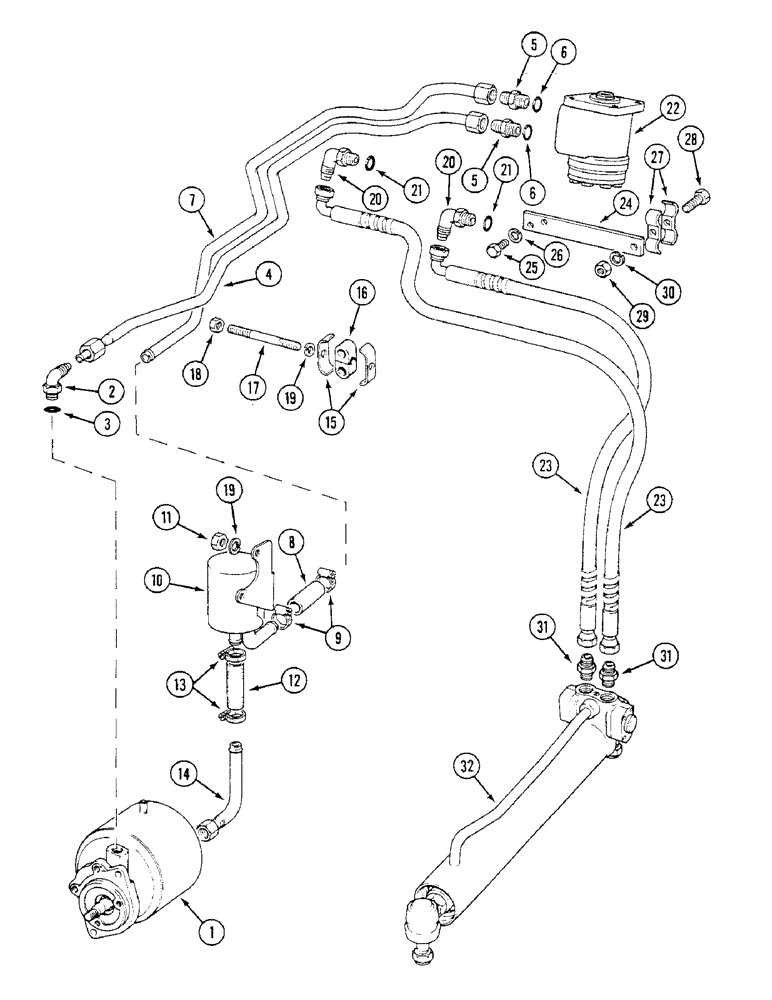

Запчасти Case IH 1294 (5-090) - HYDROSTATIC POWER STEERING, 2 WHEEL DRIVE, TRACTORS WITHOUT CAB (05) - STEERING

1

K207625

PUMP

ASSEMBLY - steering, See Figure 5-100

1шт.

2

K622110

FITTING

ELBOW - 9/16 inch UNF

1шт.

4

K201661

PIPE,0.625" DIA

TUBE - pump outlet

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

6

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

7

K204349

PIPE

TUBE - pump return

1шт.

8

K626809

HOSE

- return connector, 1/2 x 2-5/8 inch (13 x 67 mm)

1шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

10

K302508

TANK

RESERVOIR - steering fluid

1шт.

11

280136

NUT,3/8"-16, G8

2шт.

12

K204350

HOSE

- return connector, 1/2 x 3 inch (13 x 76 mm)

1шт.

13

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

14

K204351

PIPE,0.625" OD x 4.5, 3.187" L

TUBE - pump inlet

1шт.

15

K951982

SHIM

CLAMP - tube

2шт.

16

K951993

SLEEVE

- tube

2шт.

17

K201667

STUD

- special, 3/8 inch UNC

1шт.

18

280136

NUT,3/8"-16, G8

1шт.

19

492-11038

LOCK WASHER,3/8"

5шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

21

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - steering, See Figure 5-88

1шт.

23

K204279

HOSE

TUBE - flexible, 3/4 UNF x 37 inch

2шт.

24

K302459

SUPPORT

STRIP - support

1шт.

25

K650342

BOLT

- M8 x 20 mm

2шт.

26

592-6

WASHER

- lock, 8 mm

2шт.

27

K950703

SHIM

CLIP - tube

2шт.

28

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

280136

NUT,3/8"-16, G8

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

32

REF

INSTRUCTION

CYLINDER - steering, See Figure 5-102

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
