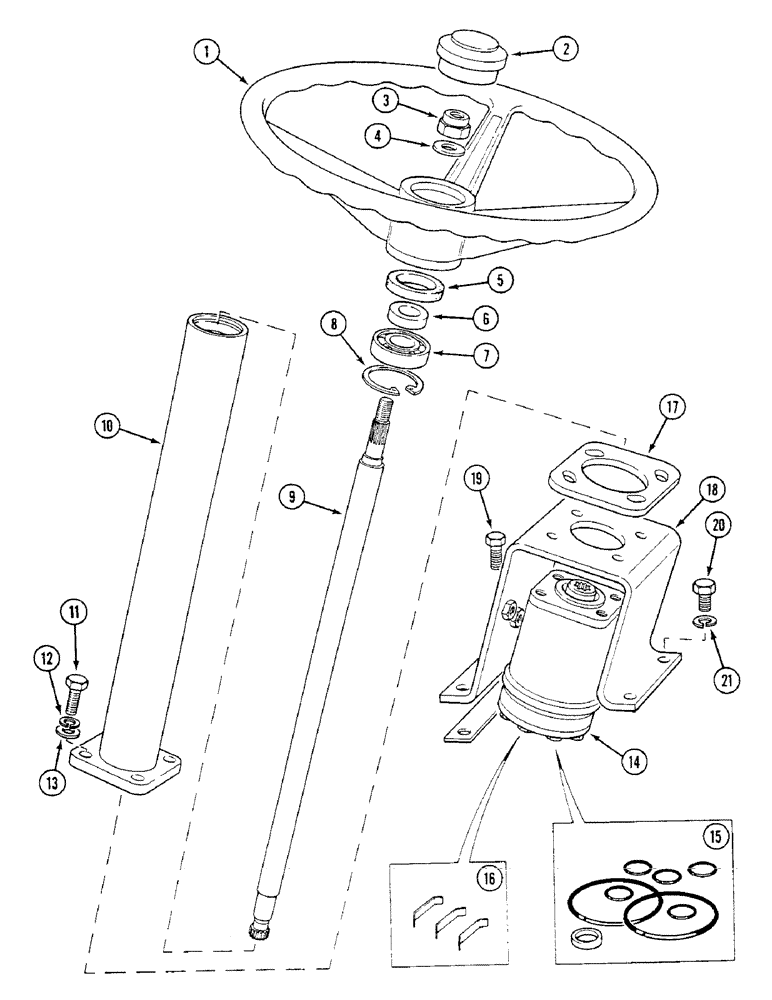

Запчасти Case IH 1294 (5-088) - STEERING COLUMN, POWER STEERING, TRACTORS WITHOUT CAB (05) - STEERING

1

K949446

HANDWHEEL

WHEEL - steering

1шт.

2

K262737

CAP

- hub, (Order also K691285 Seal)

1шт.

3

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

4

K626686

WASHER

- flat, 1/2 inch (13 mm)

1шт.

5

K623479

WASHER

- felt, 1/2 inch (13 mm) ID

1шт.

6

K627103

BUSHING

SPACER - bearing

1шт.

7

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

8

K11911

RING, SNAP

RING - snap, 1-5/8 inch (41 mm) internal

2шт.

9

K201585

SHAFT

- steering, 14-1/4 inch (362 mm)

1шт.

10

K201581

FLANGE

COLUMN - steering, 11-7/16 inch (291 mm)

1шт.

11

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

K19472

WASHER

- flat, 3/8 inch (10 mm)

4шт.

14

K207419

VALVE

ASSEMBLY - steering (SPC-25-ON), Includes: Ref. 15 & 16 and o-ring

1шт.

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O-RING - sleeve, Not illustrated

1шт.

15

1500443C91

SEAL KIT

KIT - service

1шт.

16

1272809C1

PACKAGE

KIT - spring, set of four

2шт.

17

K300651

BUSHING

SPACER - steering box

1шт.

18

K201587

BRACKET

- support

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

20

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch

1шт.

21

492-11038

LOCK WASHER,3/8"

4шт.
