Запчасти Case IH 1294 (4-80) - SIDE AND REAR WARNING LAMPS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

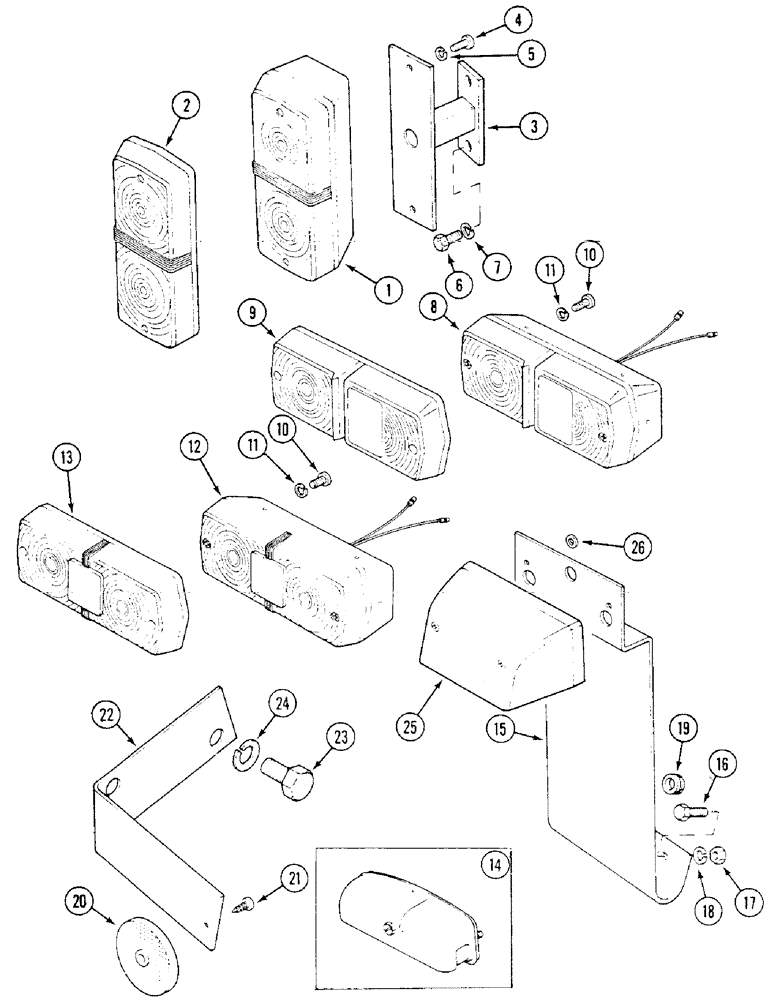

Схема запчастей Case IH 1294 - (4-80) - SIDE AND REAR WARNING LAMPS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS
11
10
19
10
14
12
8
11
4
21
13
20
16
26
5
1
16
3
17
24
15
22
6
7
23
18
9
2

Артикул

Название

Примечание

Количество

1

K304892

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher, Includes: Ref. 2 and bulbs

1шт.

1094366R1

BULB

- front turn signal No. 382 -

1шт.

1094368R1

BULB

- side lamp No. 207 -

1шт.

2

K261792

LENS

- lamp

1шт.

1

K304892

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher, Includes: Ref. 2 and bulbs

1шт.

1094366R1

BULB

- front turn signal No. 382 -

1шт.

1094368R1

BULB

- side lamp No.207 -

1шт.

2

K261792

LENS

- lamp

1шт.

3

K306555

SUPPORT

BRACKET - front lamp, short, 65 mm

2шт.

3

K308005

SUPPORT

BRACKET - front lamp, long

2шт.

4

K613146

SCREW

- 1/4 UNC x 1/2 inch

4шт.

5

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

6

K653350

SCREW

- M8 x 16 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, right-hand, Includes: Ref. 9 and bulbs

1шт.

1094366R1

BULB

- rear turn signal No. 382 -

1шт.

1094367R1

BULB

- stop - tail No.380 -

1шт.

9

K261791

LENS

- lamp

1шт.

8

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, right-hand, Includes: Ref. 9 and bulbs

1шт.

1094366R1

BULB

- rear turn signal No. 382 -

1шт.

1094367R1

BULB

- stop - tail No.380 -

1шт.

9

K261791

LENS

- lamp

1шт.

10

K613146

SCREW

- 1/4 UNC x 1/2 inch

4шт.

11

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

12

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, right-hand (North America only), Includes: Ref. 13 and bulbs

1шт.

13

K261790

LENS

- lamp

2шт.

1094366R1

BULB

- rear turn signal No. 382 -

1шт.

1094367R1

BULB

- stop - tail No. 380 -

1шт.

12

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, right-hand (North America only), Includes: Ref. 13 and bulbs

1шт.

1094366R1

BULB

- rear turn signal No.382 -

1шт.

1094367R1

BULB

- stop - tail No. 380 -

1шт.

13

K261790

LENS

- lamp

2шт.

15

K302275

BRACKET

- support (Not North America)

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

17

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

19

K627754

GROMMET

- wire, 14 mm

1шт.

20

K302778

REFLECTOR

- red

2шт.

21

K624797

SCREW

- self-tapping, Mo., 6 x 1/2 inch

2шт.

22

K303987

BRACKET

- reflector, right-hand

1шт.

22

K303988

BRACKET

- reflector, left-hand

1шт.

23

K603104

SCREW

BOLT - 1/2 UNC x 1 inch

4шт.

24

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

25

K311864

INTERIOR LIGHT

LAMP - rear number plate, with harness (Not North America)

1шт.

26

K651813

WASHER

- special, plain (Use with K311864)

2шт.

Выбрано товаров: 45
