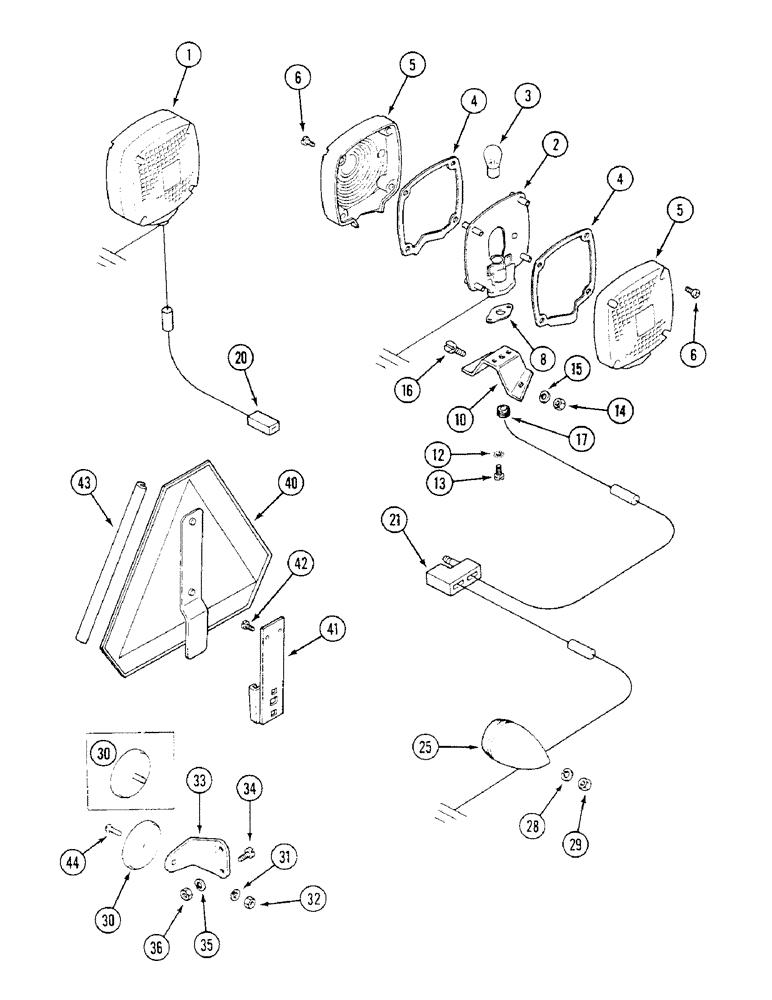

Запчасти Case IH 1294 (4-76) - LAMPS AND REFLECTORS, LOW PROFILE SPECIAL, PRIOR TO P.I.N. 11059468 (04) - ELECTRICAL SYSTEMS

1

192052A1

REPAIR KIT

FLASHER, LH AND RH REAR FENDER, Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

3

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

3a

K310118

BULB

- lamp, double contact, single filament

1шт.

4

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, replacement, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

LENS - lamp (Order A44202)

2шт.

6

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head slotted Phillips, no., 8-32 x 3/4 inch

8шт.

8

F63435

GASKET

- lamp hose

1шт.

10

A165869

BRACKET

- mounting, flasher lamp

2шт.

12

K11524

LOCK WASHER

- lock, 1/4 inch external Shakeproof

4шт.

13

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - pan head Phillips, 1/4 x 1/2 inch NC

4шт.

14

225-14210

NUT,#10-32

4шт.

15

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

4шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

17

K627754

GROMMET

- wire, 14 mm

4шт.

18

A30366

CABLE

CONNECTOR - wire

2шт.

20

A165855

HARNESS

- flasher, RH

1шт.

21

A165854

HARNESS

- flasher, LH and tail lamp

1шт.

25

K921235

LAMP

ASSEMBLY - tail, Includes: bulb and lens

1шт.

1094369R1

BULB

-

1шт.

K960888

LENS

- lamp

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-114

NUT,1/4"-28, G5

2шт.

30

K951642

REFLECTOR

- rear, (Red)

1шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

K11109

NUT

-

1шт.

33

K943024

BRACKET

- mounting, reflector

2шт.

34

K624532

SCREW

- pan head slotted machine, no.

4шт.

34

K615403

SCREW

- No. 10 UNF x 3/8 inch

4шт.

35

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

36

225-14210

NUT,#10-32

4шт.

40

A59450

WARNING SIGN

EMBLEM - S.M.V.

1шт.

41

K302725

BRACKET

- S.M.V. mounting

1шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

43

K311878

GASKET

TRIM - emblem, 27.4 inch (Replaces A165860)

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

K307974

PLATE

- S.M.V. emblem

1шт.

44

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.
