Запчасти Case IH 1294 (4-74) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB-ORCHARD FENDERS (04) - ELECTRICAL SYSTEMS

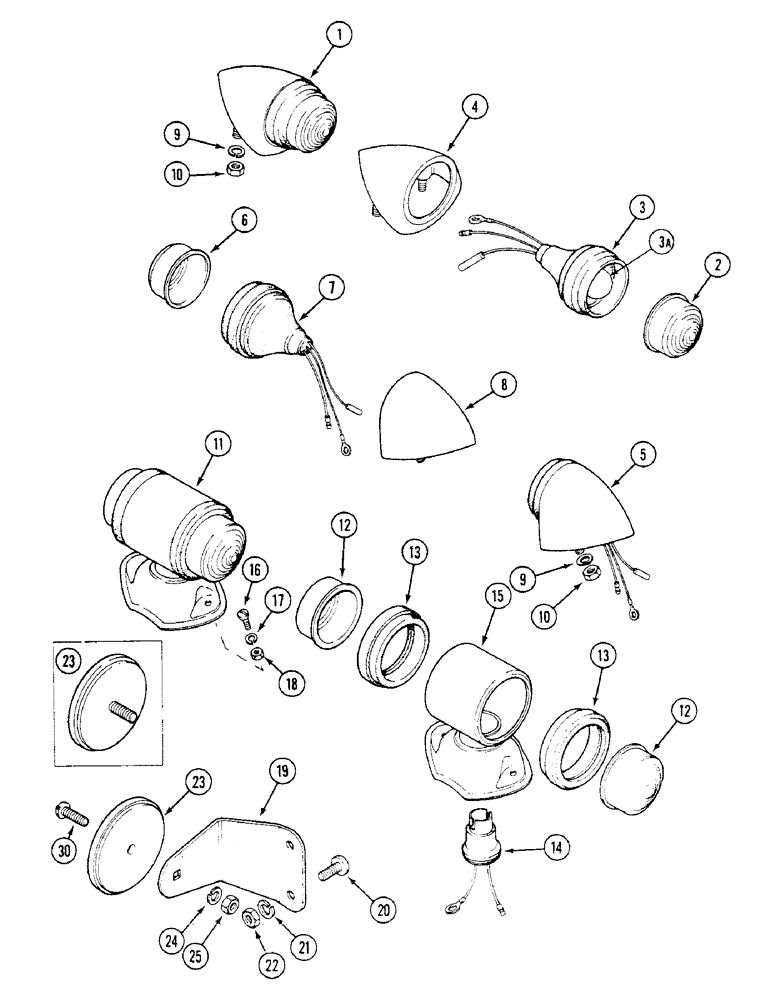

Схема запчастей Case IH 1294 - (4-74) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB-ORCHARD FENDERS (04) - ELECTRICAL SYSTEMS
9
24
2
10
14
9
22
1
6
5
23
25
10
19
20
15
3
4
18
7
23
12
21
3a
17
8
16
13
30
11
12
13

Артикул

Название

Примечание

Количество

1

K921236

INDICATOR LIGHT

LAMP ASSEMBLY - left-hand front, Includes: Ref. 2 - 4

1шт.

1

K921234

INDICATOR LIGHT

LAMP ASSEMBLY - right-hand front, Includes: Ref. 2 - 4

1шт.

2

K960887

LENS

- clear

1шт.

3

K921234

INDICATOR LIGHT

LAMP ASSEMBLY - right-hand front, Includes: Ref. 3A

1шт.

3a

1094369R1

BULB

-

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

5

K308829

LAMP

ASSEMBLY - left-hand rear, Includes: Ref. 6 - 8

1шт.

5

K308830

LAMP

ASSEMBLY - right-hand rear, Includes: Ref. 6 - 8

1шт.

6

K262154

LENS

- red

1шт.

7

K262155

BULB

MOUNT - bulb holder

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

10

K616980

NUT

- hex, 1/4 inch UNF

8шт.

11

K207987

LAMP

ASSEMBLY - direction indicator, Includes: Ref. 12 - 15

2шт.

12

K207987

LAMP

ASSEMBLY - direction indicator

2шт.

13

708419R1

GASKET

MOUNT - lens rubber

2шт.

14

K921234

INDICATOR LIGHT

LAMP ASSEMBLY - right-hand front

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

17

K626340

RING

WASHER - lock, 10

4шт.

18

225-14210

NUT,#10-32

4шт.

19

K943024

BRACKET

- mounting, reflector

2шт.

20

K624532

SCREW

- pan head slotted machine, no.

4шт.

21

K626340

RING

WASHER - lock, 10

4шт.

22

225-14210

NUT,#10-32

4шт.

23

K302778

REFLECTOR

- red

2шт.

24

K626340

RING

WASHER - lock, 10

2шт.

25

225-14210

NUT,#10-32

2шт.

30

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

Выбрано товаров: 29
