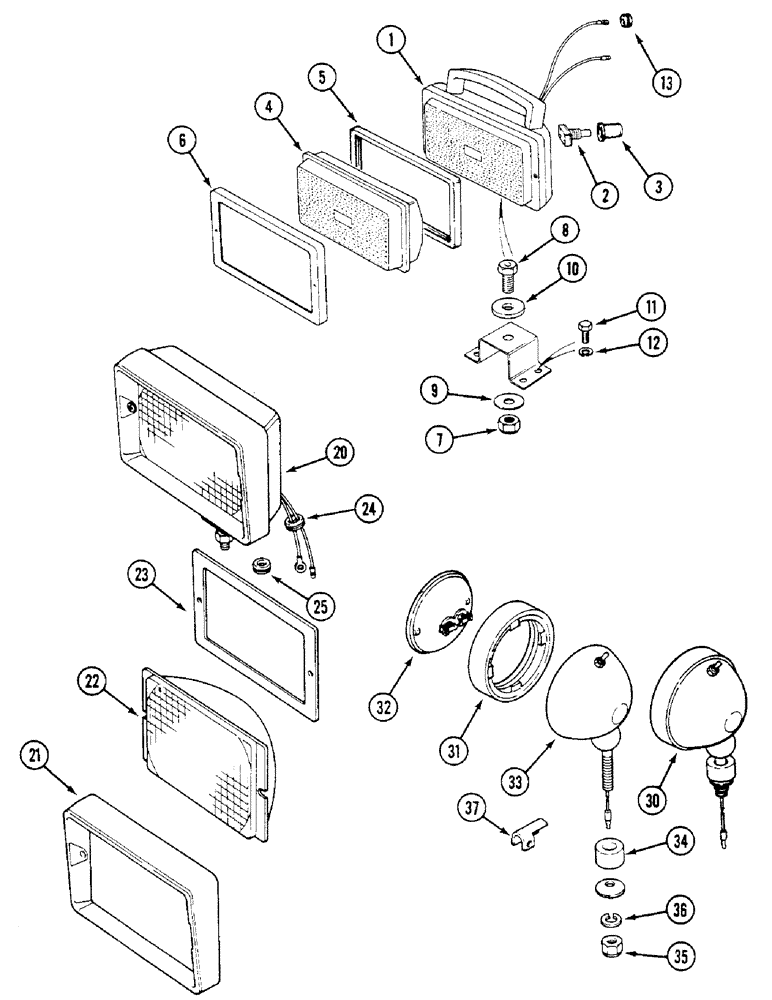

Запчасти Case IH 1294 (4-70) - REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

K302866

LAMP

FLOOD LAMP ASSEMBLY - rear, Includes: Ref. 2 - 11

1шт.

2

K260688

SWITCH ASSY

SWITCH - lamp

1шт.

3

K260689

SWITCH

COVER - switch

1шт.

4

K260687

LENS

AND REFLECTOR - lamp

1шт.

5

K260693

LENS

GASKET - lens

1шт.

6

K260694

LAMP

RIM - lens

1шт.

7

K260696

NUT

- self-locking, M12

1шт.

8

K260695

BOLT

- M12, special

1шт.

9

K260691

WASHER

- 12 mm

1шт.

10

K260690

WASHER

- nylon, 12 mm

1шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V - 55W (North American Only)

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

13

K627705

GROMMET

- wire, 14 mm

1шт.

20

K310586

LAMP

FLOOD LAMP ASSEMBLY - rear, Includes: Ref. 21 - 23

1шт.

21

K262221

BEZEL

RIM - lens

1шт.

22

K262222

LENS

- lamp

1шт.

23

K262223

SEAL

GASKET - lens sealing

1шт.

24

K627773

GROMMET

- rubber, fender

1шт.

25

K627743

PLUG

GROMMET - 9 mm left-hand fender

2шт.

30

A151886

LAMP

ASSEMBLY - flood, right rear, low profile special, Includes: Ref. 31 - 36

1шт.

31

A25213

RETAINER

- lamp, rear flood, low profile special

1шт.

32

A47179

BULB

LAMP - seal beam (No. 4406) rear flood, low profile special

1шт.

33

A47700

SWITCH ASSY

SWITCH - toggle, rear flood lamp, low profile special

1шт.

34

D37048

BUSHING

- lamp, rear flood, low profile special

1шт.

35

425-158

JAM NUT,Jam, 1/2"-20, G5

Rear flood lamp, low profle special Jam, 1/2"-20, G5

1шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rear flood lamp, low profile special 1/2"

1шт.

37

A177595

CLIP, WIRE

CLIP - wire shield, rear flood lamp, low profile special

1шт.
