Запчасти Case IH 1294 (4-68) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

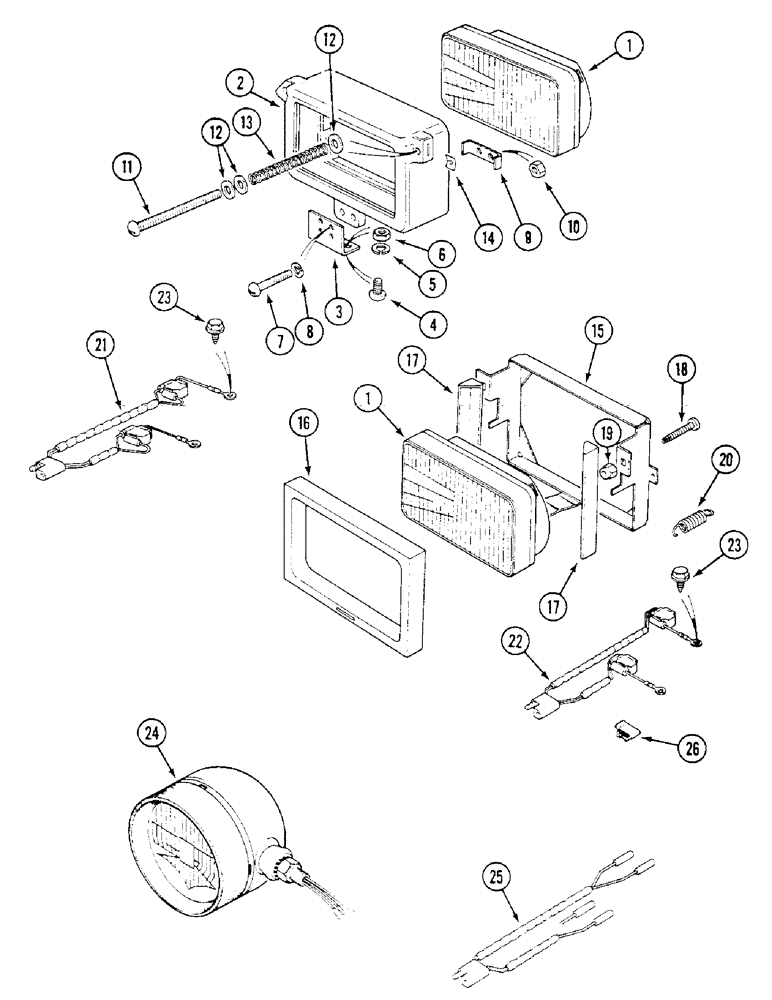

Схема запчастей Case IH 1294 - (4-68) - HEADLAMPS (04) - ELECTRICAL SYSTEMS
26
11
2
9
16
17
23
19
12
5
18
14
1
24
12
22
8
23
1
15
7
6
25
4
13
17
3
20
10
21

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

HEADLAMP - white bulb, left-hand angled beam, Includes: Ref. 1A

2шт.

1a

K300218

BULB

- white bulb

2шт.

1

NSS

NOT SOLD SEPARAT

HEADLAMP - White bulb, right-hand angled beam, Includes: Ref. 1A

2шт.

1a

K300218

BULB

- white bulb

2шт.

1

K300725

BULB

HEADLAMP - yellow bulb, right-hand angled beam, Includes: Ref. 1A

2шт.

1a

K300724

BULB

- yellow bulb

2шт.

1

A139458

LAMP

HEADLAMP - sealed beam, vertical low beam, Includes: Ref. 1A

2шт.

1a

K300724

BULB

- yellow bulb

2шт.

2

K262748

BRACKET

HOUSING - lamp

2шт.

For inboard headlamps mounted below waist rail.

1шт.

3

K300762

BRACKET

- support

2шт.

For inboard headlamps mounted below waist rail.

1шт.

4

K652504

SCREW

- M5 x 16 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

5

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

6

825-1405

NUT,M5, Cl 8

4шт.

For inboard headlamps mounted below waist rail.

1шт.

7

30464R1

SCREW,Cross Pan Hd, M5 x 25

- machine, 5 mm x 25 mm long

4шт.

For inboard headlamps mounted below waist rail.

1шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

9

K300763

CLAMP

- housing

2шт.

For inboard headlamps mounted below waist rail.

1шт.

10

825-1405

NUT,M5, Cl 8

4шт.

For inboard headlamps mounted below waist rail.

1шт.

11

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

- adjusting, no., 10 UNC x 2-1/2 inch

4шт.

For inboard headlamps mounted below waist rail.

1шт.

12

K651776

WASHER

- 5 mm

12шт.

For inboard headlamps mounted below waist rail.

1шт.

13

K625093

SPRING

- pressure

4шт.

For inboard headlamps mounted below waist rail.

1шт.

14

K607478

NUT

- No. 10 UNC

4шт.

For inboard headlamps mounted below waist rail.

1шт.

15

K304824

SUPPORT

HOUSING - lamp

2шт.

For inboard headlamps mounted in waist rail.

1шт.

16

K304831

RUBBER INSULATOR

SHROUD - rubber

2шт.

For inboard headlamps mounted in waist rail.

1шт.

17

K304832

MOLDING

MOULDING - rubber

4шт.

For inboard headlamps mounted in waist rail.

1шт.

18

K603641

SCREW

- headlamp adjusting

4шт.

For inboard headlamps mounted in waist rail.

1шт.

19

K617503

NUT

- nylon

4шт.

For inboard headlamps mounted in waist rail.

1шт.

20

K658240

SPRING

- retaining

4шт.

For inboard headlamps mounted in waist rail.

1шт.

21

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

22

K304928

HARNESS

- sealed beam headlamps (Inboard headlamps)

1шт.

23

K624532

SCREW

- self-tapping, No. 14 x 1/2 inch(Inboard headlamps)

2шт.

24

K302167

HEADLIGHT

HEADLAMP - white bulb, left-hand, outboard, (Not North America)

1шт.

24

K302168

HEADLIGHT

HEADLAMP - white bulb, right-hand, outboard, (Not North America)

1шт.

25

K300750

HARNESS

- outboard headlamps

1шт.

26

K621744

CLIP

- harness to grille frame

3шт.

Выбрано товаров: 53
