Запчасти Case IH 1294 (4-66) - K307720 ALTERNATOR ASSEMBLY, LUCAS A133-65, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

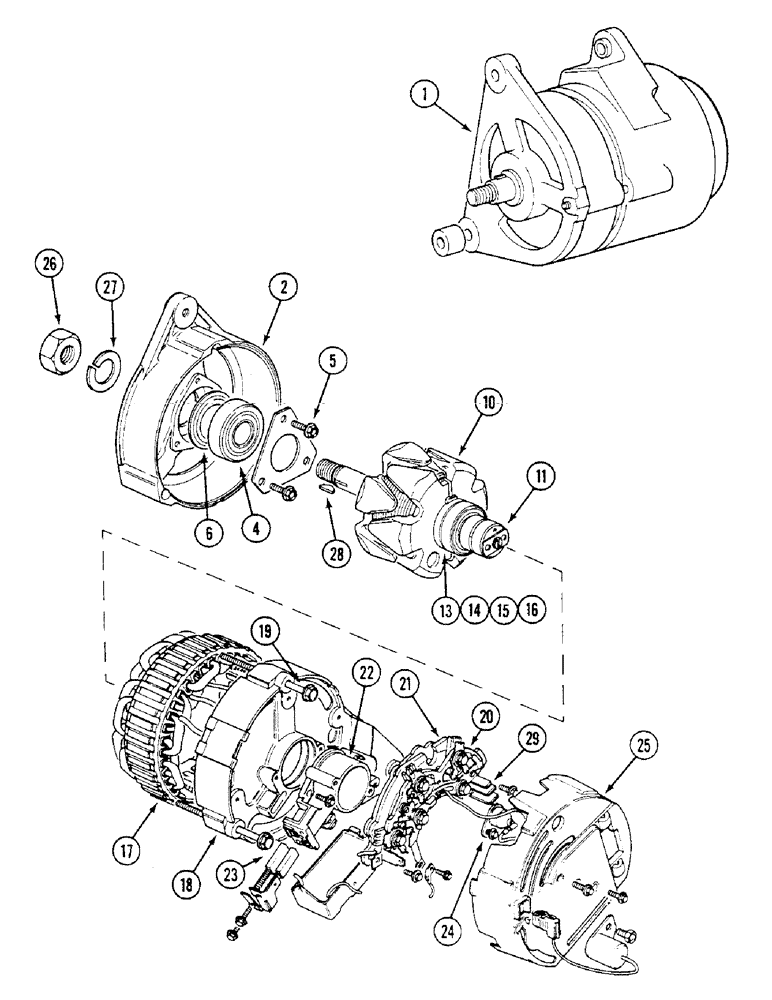

Схема запчастей Case IH 1294 - (4-66) - K307720 ALTERNATOR ASSEMBLY, LUCAS A133-65, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS
13
18
14
1
16
29
11
10
19
5
15
26
24
21
27
23
6
28
20
22
17
4
25
2

Артикул

Название

Примечание

Количество

1

92281C1

ALTERNATOR

ASSEMBLY - Lucas A127-65 (Without fan and pulley), Includes: Ref. 2 - 25

1шт.

Service bulletin NTRSB03187 tells of the different alternators used on the '94. CAM/CNS 4/26/99

1шт.

2

A47996

BRACKET

- drive end, Includes: Ref. 4 - 6

1шт.

84108C1

PACKAGE

BEARING KIT - drive end, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING -

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

10

A47998

ROTOR

ASSEMBLY - alternator, Includes: Ref. 11 - 16

1шт.

A47999

KIT

SLIP RING AND BEARING KIT - rotor

1шт.

11

A48000

RING

SLIP RING - rotor, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING -

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (Black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (White)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

A48002

STATOR

- alternator

1шт.

18

A48001

BRACKET

- slip ring end

1шт.

19

K261954

BOLT

- through

3шт.

20

A47995

RECTIFIER

- alternator

1шт.

21

A47994

REGULATOR

ASSEMBLY - alternator

1шт.

22

A48003

HOLDER

ASSEMBLY - brush, Includes: Ref. 23

1шт.

23

A48004

BRUSH, COMMUTATOR

BRUSH SET -

1шт.

24

A48009

DIODE

- surge protection

1шт.

25

A47993

COVER

- rear

1шт.

A48007

SCREW

HARDWARE KIT - includes retaining screws (Lucas 60600771)

1шт.

A48008

COLLAR

KIT - spacer

1шт.

A48006

KIT

SUNDRY KIT - alternator, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY - Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

Выбрано товаров: 30
