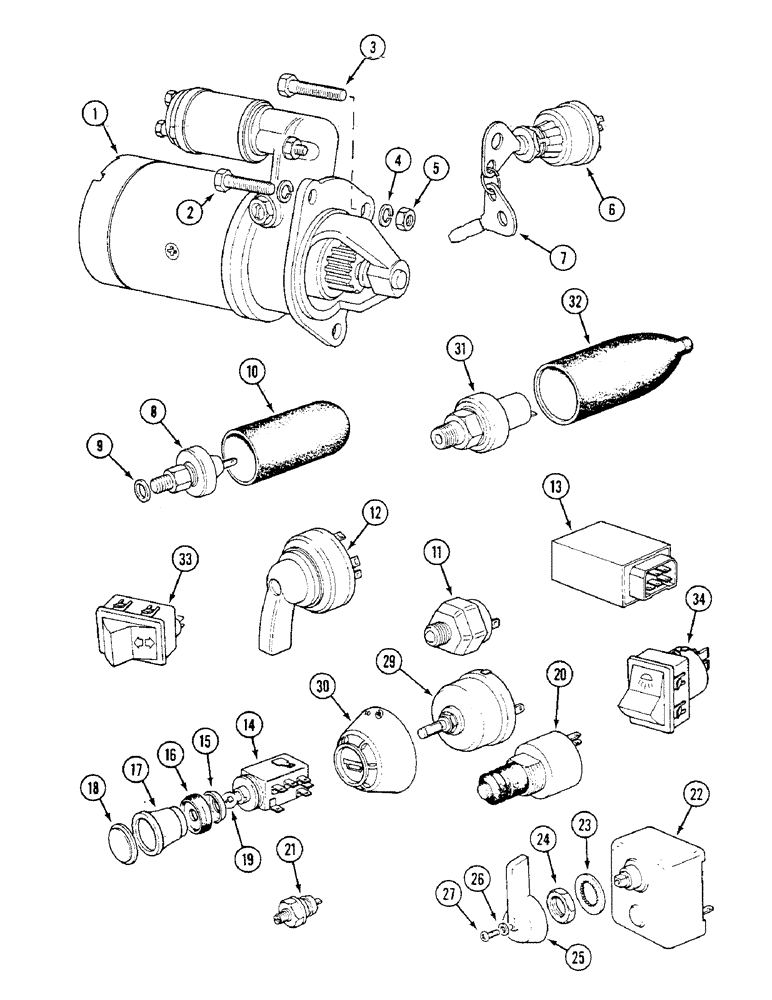

Запчасти Case IH 1294 (4-58) - STARTER AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

K262746

STARTING MOTOR

STARTER - 12 volt

1шт.

87297386

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

2

K600406

BOLT

BOLT - special, 3/8 UNC x 1-3/4 inch

2шт.

3

K600410

BOLT

BOLT - 3/8 UNC x 2-1/4 inch

1шт.

4

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

5

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

6

3107556R92

SWITCH ASSY

SWITCH ASSEMBLY - ignition, Includes: Ref. 7

1шт.

7

K962338

KEY

KEY - ignition switch, set of two

1шт.

8

K311686

SWITCH, PRESSURE

PRESSURE SWITCH SWITCH - oil pressure

1шт.

9

K626521

SEALING WASHER

WASHER - sealing, 3/8 inch (10 mm)

1шт.

10

K207554

COVER

COVER - oil pressure switch

1шт.

11

K262714

SWITCH

SWITCH - safety (Lucas 33855)

1шт.

12

K300781

FLASHER SWITCH

SWITCH - direction indicator (Hella 6RB00159503)

1шт.

13

1536092C1

FLASHER UNIT

UNIT, FLASHER - (Hella 4DM 002233-05)

1шт.

13

K310019

FLASHER UNIT

FLASHER UNIT - (Hella 4DJ 323 LDB 121) (Low Profile special)

1шт.

14

3118917R92

FLASHER SWITCH

SWITCH ASSEMBLY - hazard warning (Hella 6HD 001578-04), Includes: Ref. 15 - 19

1шт.

15

K950592

WASHER

WASHER - switch

1шт.

16

K950593

COVER

MOUNTING - switch, rubber

1шт.

17

K964913

KNOB

KNOB - control

1шт.

18

K964914

LENS

LENS - switch

1шт.

19

K950567

BULB

BULB - switch, 12 volt-12 watt

1шт.

20

K929737

SWITCH ASSY

SWITCH - stop lamps (AC-Delco 1533840)

1шт.

21

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

22

NSS

NOT SOLD SEPARAT

SWITCH - flasher/turn (N/America only) (Order A77185 andK301091), Includes: Ref. 23 - 27

1шт.

23

K300899

WASHER

WASHER - special

1шт.

24

K300897

NUT

NUT - special

1шт.

25

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

27

K300900

SCREW

SCREW - knob

1шт.

29

NSS

NOT SOLD SEPARAT

SWITCH - lights and horn

1шт.

30

1502379C1

KNOB

KNOB - light switch

1шт.

31

K921317

SENDER UNIT

SWITCH - vacuum, hydraulic filter warning lamp

1шт.

32

K947518

COVER

COVER - filter switch

1шт.

33

K307872

FLASHER SWITCH

SWITCH - direction indicator (With cab), Includes: bulb

1шт.

K950567

BULB

BULB - switch, 12 volt-12 watt

1шт.

34

NSS

NOT SOLD SEPARAT

SWITCH - floodlamp (With cab)

1шт.
