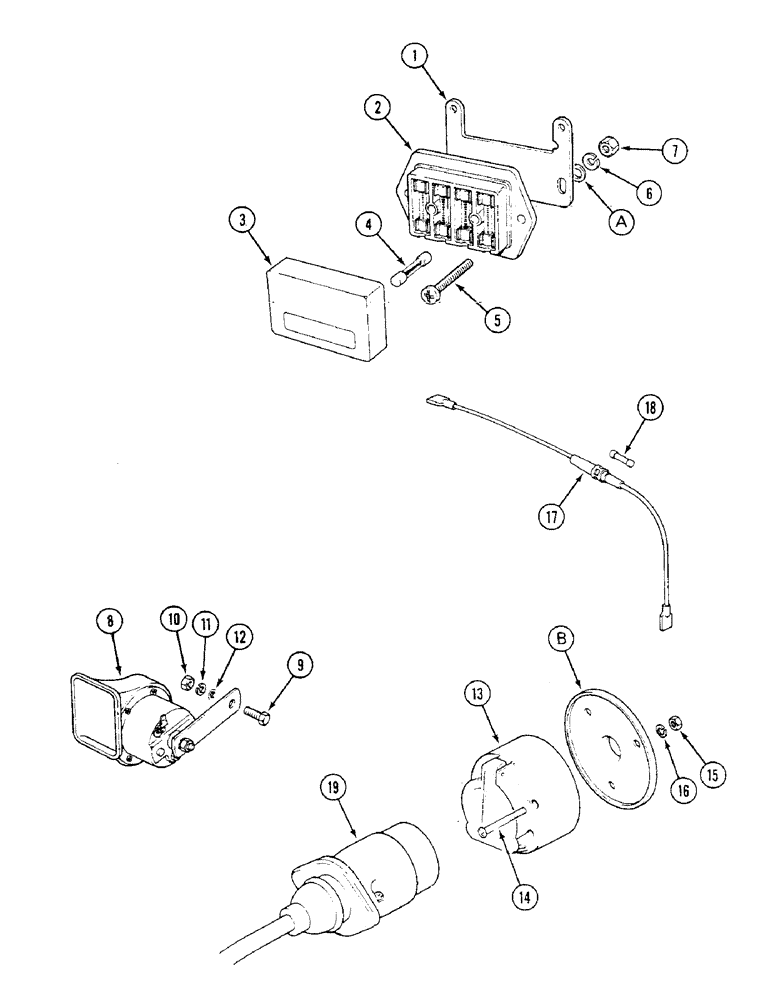

Запчасти Case IH 1294 (4-56) - FUSEBOX, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

1

K300675

BRACKET

- fuse box support

1шт.

2

NSS

NOT SOLD SEPARAT

BOX ASSEMBLY - fuse, Includes: Ref. 3 & 4

1шт.

3

K261009

COVER

- fuse box

1шт.

4

K947431

FUSE

- 35 ampere

2шт.

4

K904459

FUSE

- 25 ampere

1шт.

4

9426333

FUSE,15 Amp, Type 3AG

- 15 amperes

1шт.

5

K614946

SCREW,Pan, #10 - 32 x 3/4"

- No. 10 UNF x 3/4 inch

4шт.

6

K626340

RING

WASHER - lock, 10

4шт.

K626310

WASHER

- lock 3/16 inch, 3/16 inch (5 mm)

4шт.

7

225-14210

NUT,#10-32

4шт.

8

K311359

HORN

- warning sound

1шт.

9

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

11

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

12

K11524

LOCK WASHER

- lock, 1/4 inch external Shakeproof

1шт.

13

NSS

NOT SOLD SEPARAT

SOCKET - trailer, electrical

1шт.

K310532

GUARD

COVER - rubber, trailer socket

1шт.

14

K652468

SCREW

- M5 x 35 mm, (Without cab)

3шт.

14

K657695

SCREW

- M5 x 30 mm, (With cab)

3шт.

15

825-1405

NUT,M5, Cl 8

3шт.

16

K651846

WASHER, LOCK

WASHER - lock, 5 mm

3шт.

17

K304217

FUSE

HOLDER - with lead, Includes: Ref. 18

1шт.

18

3113048R1

FUSE

- 50 ampere

1шт.

19

3118929R1

SOCKET/RECEPTACLE

RECEPTACLE - seven terminal

1шт.
