Запчасти Case IH 1294 (4-54) - BATTERY AND SUPPORT BRACKET (04) - ELECTRICAL SYSTEMS

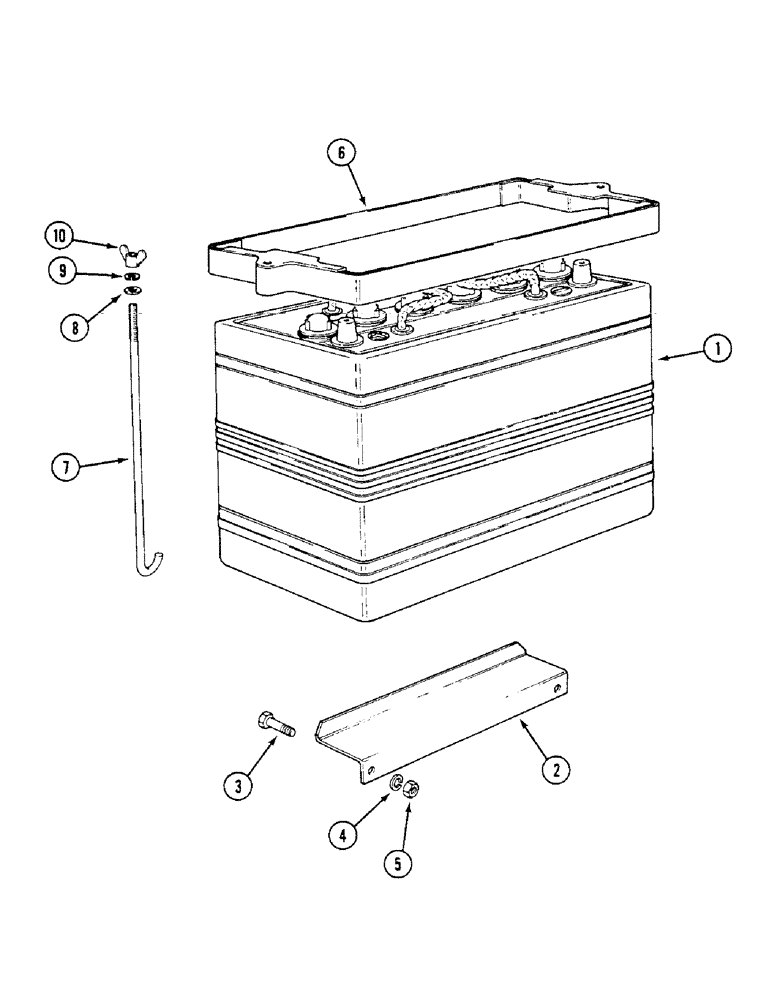

Схема запчастей Case IH 1294 - (4-54) - BATTERY AND SUPPORT BRACKET (04) - ELECTRICAL SYSTEMS
3
7
4
2
9
10
8
6
1
5

Артикул

Название

Примечание

Количество

1

K330011

DRY BATTERY

- standard duty

1шт.

1

BMF31H

BATTERY

- dry, 12 volt

1шт.

1

K330012

BATTERY

- heavy duty

1шт.

1

BHC30

BATTERY, DRY

BATTERY - 12 volt

1шт.

2

K307815

BRACKET

- battery support

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

5

825-1408

NUT,M8, Cl 8

2шт.

6

K947080

FRAME

CLAMP - battery top

1шт.

7

K306318

BOLT

STUD - clamp

2шт.

7

K306317

BOLT

STUD - clamp

2шт.

8

K626916

WASHER

- special, 5/16 inch (8 mm) special

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

K651745

NUT

- wing, M8

2шт.

Выбрано товаров: 14
