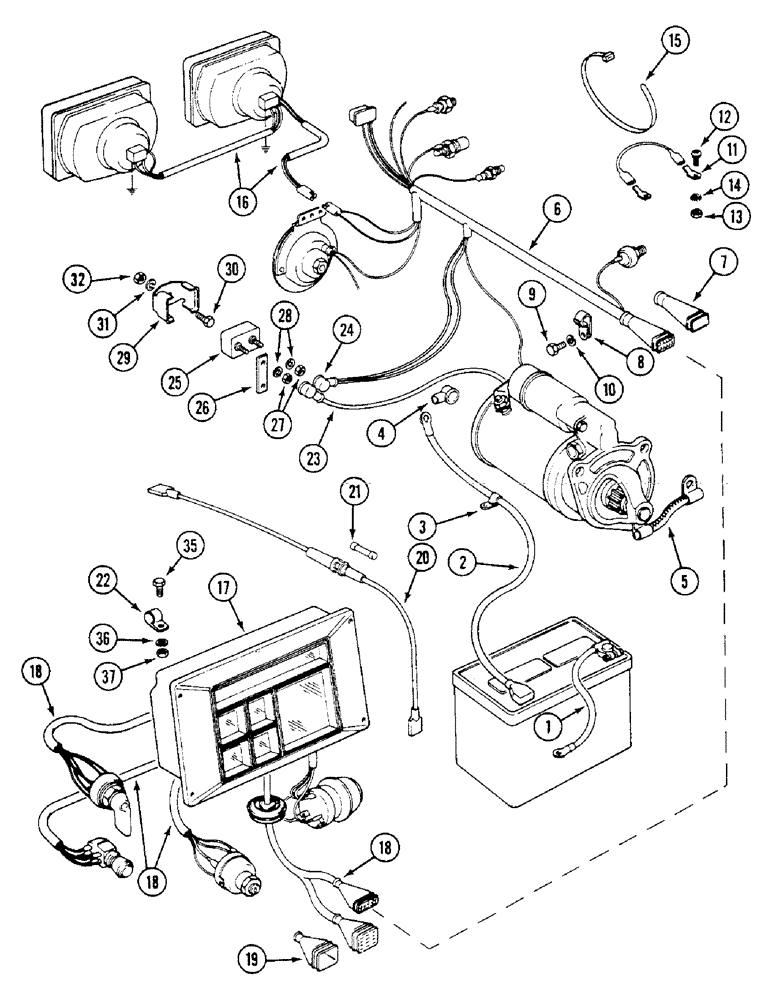

Запчасти Case IH 1294 (4-48) - ELECTRICAL WIRING, CHASSIS - TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3404976R1
CABLE
- battery
1шт.
2
K949996
CABLE
-, Serial Range: battery-starter
1шт.
3
515-23111
CLAMP,7/16", Insul, 3/8" Bolt
- P-type, 7/16 inch ID
1шт.
4
K87560
CONTACT HOUSING
COVER - starter terminal
1шт.
5
K947336
CABLE
-, Serial Range: starter-ground
1шт.
6
K307275
HARNESS
- engine auxiliaries, Includes: Ref. 7
1шт.
7
K951339
GUARD
COVER - harness connector
1шт.
8
K657010
CLIP
- nylon, Serial Range: harness-engine
1шт.
9
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW - pan head Phillips, 1/4 x 1/2 inch NC
1шт.
10
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
11
K925268
BLADE
- ground lead
2шт.
12
490-1108
SCREW,Cross Pan Hd, #10-32 x 1/2"
- machine, pan Phillips, No. 10 NF x 1/2 inch
1шт.
14
493-41020
LOCK WASHER,Ext Tooth, #10
WASHER, LOCK, Ext Tooth, #10
1шт.
15
K621734
CABLE
CLIP - cable
3шт.
16
K304927
HARNESS
- electrical (Inboard headlamps)
1шт.
16
K300750
HARNESS
- outboard headlamps
1шт.
17
REF
INSTRUCTION
CLUSTER - instrument, See Figure 4-52
1шт.
18
K307294
HARNESS
- instrument panel, Includes: Ref. 19
1шт.
19
K951338
BELLOWS
COVER - harness connector
2шт.
20
K304217
FUSE
HOLDER - with lead, Includes: Ref. 21
1шт.
21
3113048R1
FUSE
- 50 ampere
1шт.
22
K621600
CLIP
- panel harness
1шт.
23
K304806
ELECTRICAL WIRE
LEAD - starter to circuit breaker
1шт.
24
K304902
TERMINAL CONNECTOR
COVER - terminals
1шт.
25
K304903
CIRCUIT-BREAKER
CIRCUIT BREAKER - circuit, 30 ampere
2шт.
26
K307473
PLATE
- circuit breaker
1шт.
28
K626340
RING
WASHER - lock, 10
4шт.
29
K304457
CLIP
- circuit breaker mounting
1шт.
30
K652503
SCREW
- M5 x 12 mm
1шт.
31
K651846
WASHER, LOCK
WASHER - lock, 5 mm
1шт.
32
825-1405
NUT,M5, Cl 8
1шт.
35
K615408
SCREW,Pan, #10 - 32 x 1"
- no. 10 UNF x 1 inch
1шт.
36
K626340
RING
WASHER - lock, 10
1шт.
Выбрано товаров: 36
