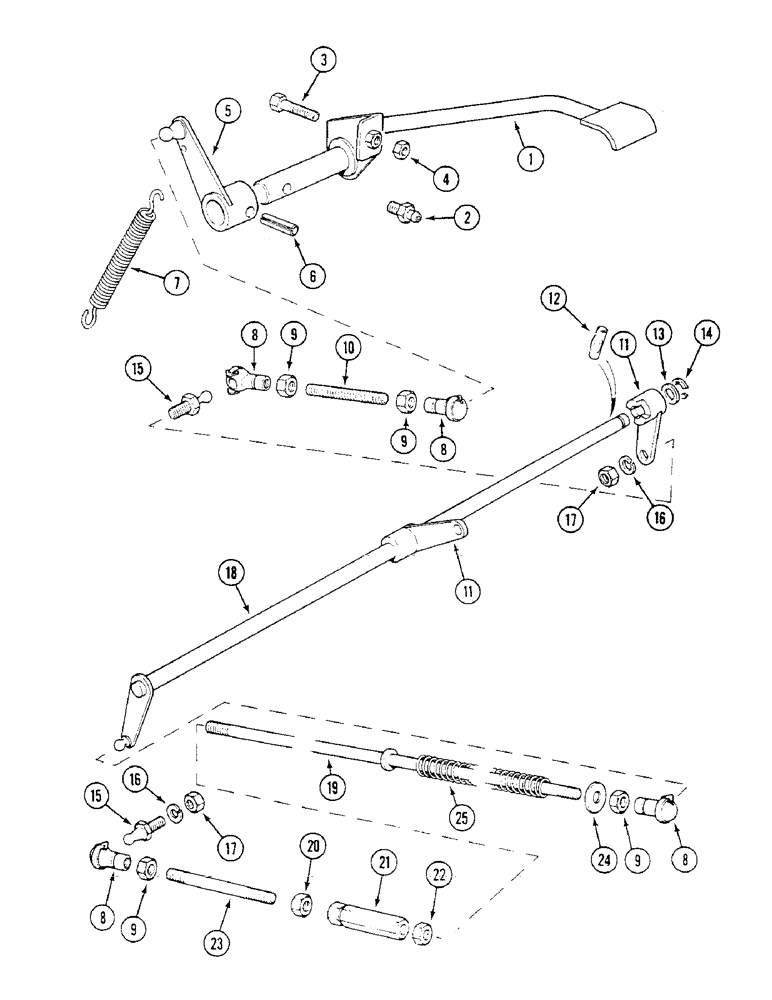

Запчасти Case IH 1294 (3-34) - THROTTLE FOOT CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K308625

PEDAL

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

3

K652480

SCREW

BOLT - special, M6 x 40 mm

1шт.

4

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

1шт.

5

K307476

LEVER

1шт.

6

K14464

PIN

- 1/4 x 1 inch

1шт.

7

K624914

SPRING

- return

1шт.

8

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

4шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

4шт.

10

K202824

ROD

- pedal to cross shaft

1шт.

11

K928178

LEVER

- cross shaft

2шт.

12

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

2шт.

13

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

14

K621587

RING, SNAP

RING - retaining, 3/8 inch (10 mm) external

1шт.

15

K621904

BALL JOINT

PIVOT END - ball

2шт.

16

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

17

K616980

NUT

- hex, 1/4 inch UNF

2шт.

18

K207310

SHAFT

- cross

1шт.

19

K203148

ROD

- cross shaft to adjusting sleeve

1шт.

20

K617593

NUT

- 1/4 inch UNF

1шт.

21

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

22

K617000

NUT

- 1/4 inch UNF

1шт.

23

K202474

ROD

- adjusting, Serial Range: sleeve-pump

1шт.

24

K25896

WASHER

- special, return spring

1шт.

25

K625260

SPRING

- return

1шт.
