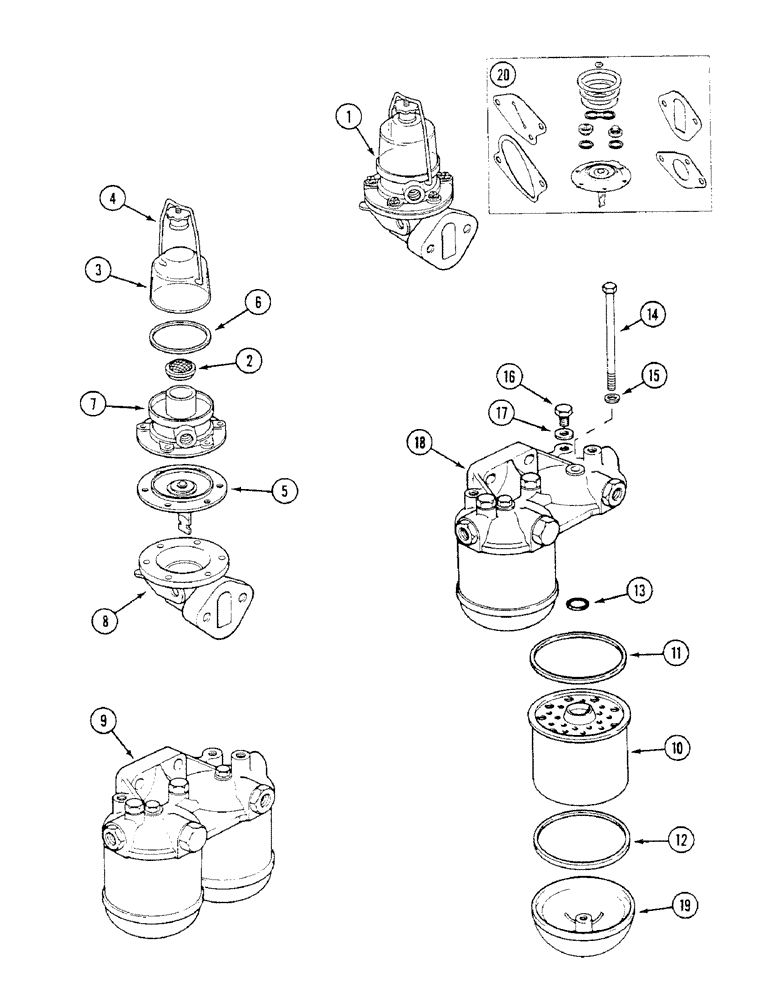

Запчасти Case IH 1294 (3-30) - FUEL FEED PUMP AND FILTER ASSEMBLIES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY - fuel, (AC-Delco 7990271), Includes: Ref. 2 - 8

1шт.

2

K961675

FILTER SCREEN

SCREEN - filter

1шт.

3

K66442

FILTER BOWL

BOWL - filter

1шт.

4

K961676

BAIL

CLAMP - bowl

1шт.

5

K911917

DIAPHRAGM

- pump

1шт.

6

K961674

SEAL

GASKET - filter bowl

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

9

K906708

FILTER

ASSEMBLY - fuel, (APF 62900), Includes: Ref. 10 - 20

1шт.

10

3044506R93

FILTER, FUEL

FILTER, Includes: Ref. 11 - 14

2шт.

11

3123890R1

SEALING WASHER

RING - sealing, upper

1шт.

12

3123889R1

SEALING WASHER

- sealing, lower

1шт.

13

K960937

O-RING

- 1/2 inch (13 mm) ID

1шт.

14

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch

2шт.

15

K963409

RING

WASHER - sealing, 5/16 inch (8 mm)

2шт.

16

K965010

PLUG

- vent, 5/16 inch UNC

1шт.

17

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

1шт.

18

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

19

K962264

COVER

BASE - filter

2шт.

20

K262265

KIT

- repair, fuel lift pump Ac. No. 93151242

1шт.
